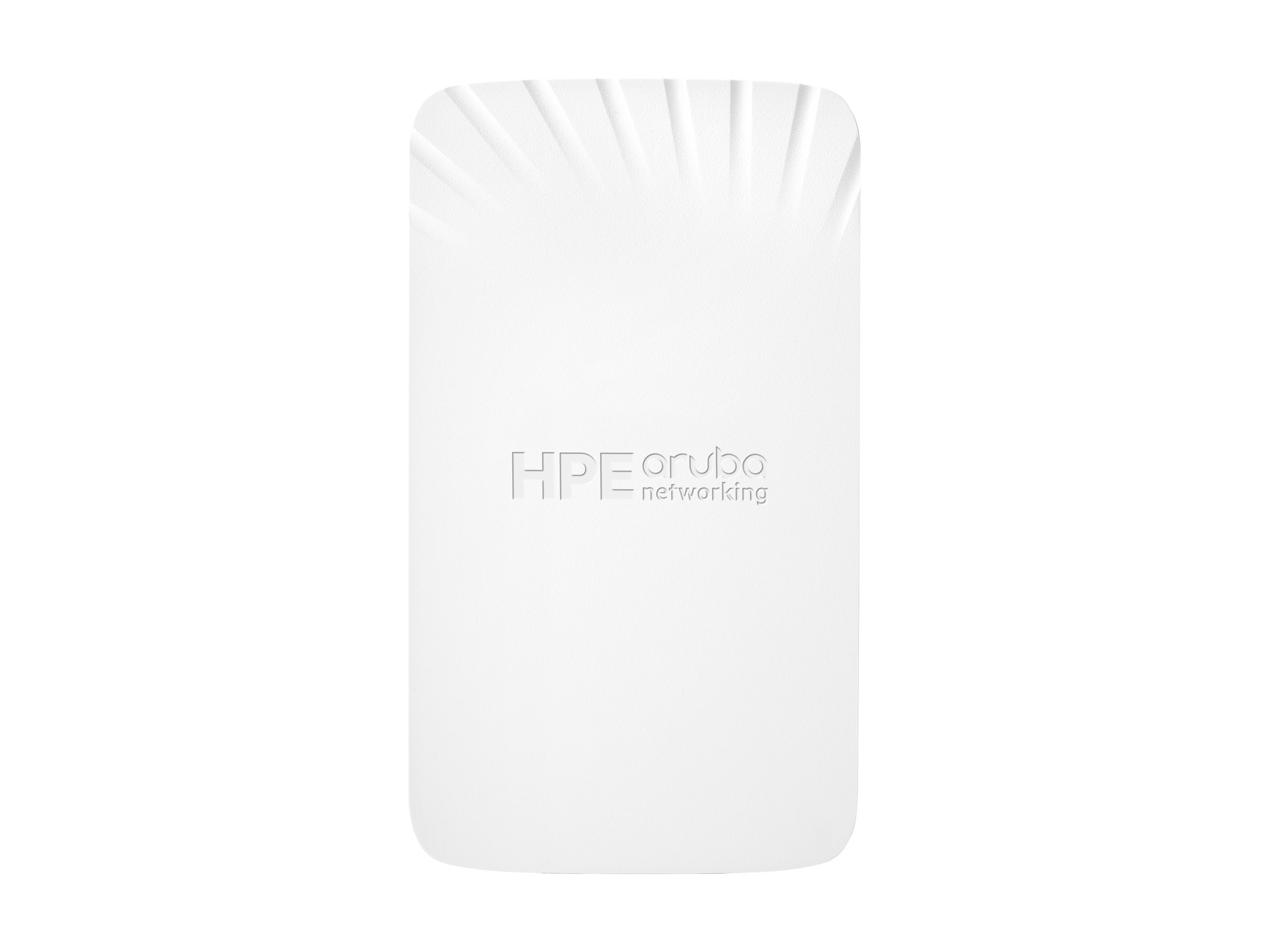

HPE Aruba AP-503HR (EU) Unified Remote Trådløs forbindelse Hvid
HPE Aruba AP-503HR (EU) Unified Remote - Trådløs forbindelse - Bluetooth, Wi-Fi 6 - 2.4 GHz, 5 GHz - BTO
-
Product no 998117039
Model R7G96A
Brand Hewlett Packard Ente
EAN 0190017491943
Weight 0.99 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | HPE Aruba AP-503HR (EU) Unified Remote - trådløs forbindelse - Bluetooth, Wi-Fi 6 |
| Enhedstype | Trådløs forbindelse |
| Formfaktor | Ekstern |
| Dataforbindelsesprotokol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6) |
| Frekvensbånd | 2.4 GHz, 5 GHz |
| Præstation | Maksimum datahastighed (5 GHz): 1,2 Gbps<br>Maksimum datahastighed (2,4 GHz): 287 Mbps<br>VPN throughput (IPSec): 100 Mbps<br>Samlet gennemløb: 1,5 Gbps |
| Kapacitet | Trådløse klienter per WiFi-radio: 256<br>BSSIDs per radio: 16<br>OFDMA-enheder: 8 |
| Udstyr inkluderet | Skrivebordsmonteringssæt |
| OS nødvendig | ArubaOS, InstantOS |
| Power Over Ethernet (PoE) understøttet | PoE Class 3 |
| Pristype | BTO |
| Dimensioner (B x D x H) | 8.6 cm x 4.7 cm x 15 cm |
| Vægt | 360 g |
| Producentgaranti | Begrænset livtidsgaranti |
| General | |
|---|---|
| Depth | 4.7 cm |
| Device Type | Wireless access point |
| Height | 15 cm |
| Weight | 360 g |
| Width | 8.6 cm |
| Networking | |
| Capacity | Wireless clients per Wi-Fi radio: 256 | BSSIDs per radio: 16 | OFDMA units: 8 |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.3az, IEEE 802.11ac Wave 2, IEEE 802.3bz, IEEE 802.11ax, Wi-Fi CERTIFIED 6 |
| Connectivity Technology | Wireless |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, Bluetooth 5.0, 802.11ax |
| Data Transfer Rate | 1.2 Gbps |
| Encryption Algorithm | SSL, WPA, WPA2, WPA3, WPA3-Enterprise, Opportunistic Wireless Encryption (OWE), WPA3-Enhanced Open, Simultaneous Authentication of Equals (SAE), WPA2-MPSK |
| Features | Auto-uplink (auto MDI/MDI-X), DFS support, Deep Packet Inspection (DPI), IPSec Virtual Private Network (VPN), Wi-Fi Multimedia (WMM) support, Trusted Platform Module (TPM), 2T2R MIMO technology, Maximum Ratio Combining (MRC), Low Density Parity Check |
| Form Factor | External |
| Frequency Band | 2.4 GHz, 5 GHz |
| Line Coding Format | CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, OFDM, 1024 QAM, OFDMA |
| Network / Transport Protocol | IPSec |
| Performance | Maximum data rate (5 GHz): 1.2 Gbps | Maximum data rate (2.4 GHz): 287 Mbps | VPN throughput (IPSec): 100 Mbps | Aggregate throughput: 1.5 Gbps |
| Spread Spectrum Method | OFDM, DSSS, OFDMA |
| Status Indicators | Port status, power, system, status, PoE, radio |
| Antenna | |
| Antenna | Internal |
| Antenna Qty | 2 |
| Directivity | Directional |
| Gain Level | 5 dBi |
| Internet of Things (IoT) | |
| Communications Technology | Bluetooth Low Energy (LE), Zigbee |
| Internet of Things (IoT) Compatible | Yes |
| Expansion / Connectivity | |
| Interfaces | 2 x 1000Base-T - RJ-45 | 1 x 1000Base-T (PoE+) - RJ-45 | 1 x console - micro-USB |
| Miscellaneous | |
| Cables Included | Power adapter |
| Compliant Standards | EN 60950, IEC 60950, FCC, EN 60601-1-2, EN 60601-1-1, EMC 2014/30/EU, LVD 2014/35/EU, EN 62368-1, IEC 62368-1, ETS 300-019, ISED, RED 2014/53/EU |
| Included Accessories | Desk mount kit |
| Pricing Type | BTO |
| Power | |
| Power Consumption Operational | 6.2 Watt |
| Power Over Ethernet (PoE) Supported | PoE Class 3 |
| Software / System Requirements | |
| OS Required | ArubaOS, InstantOS |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 5.4 cm |
| Shipping Height | 16.7 cm |
| Shipping Weight | 450 g |
| Shipping Width | 11.1 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 93% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
HPE Aruba Networking AP-503HR (EU) with Desk Mount Power Adapter EU Power Cord Remote AP Bundle
HPE Aruba Networking 500H Series Hospitality Access Points deliver cost-effective Wi-Fi 6 coverage in a compact form factor that is ideal for hotels, residence halls, and remote offices. With 1.49 Gbps maximum combined speed, zero touch provisioning (ZTP), and wired ports, the 500H series is ready to improve wireless experiences for guests, employees, students, and teleworkers. The 500H series is Wi-Fi CERTIFIED® and supports 802.11ax features; orthogonal frequency-division multiple access (OFDMA) for multi-user efficiency, target wake time (TWT) to extend the battery life of connected Internet of Things (IoT) devices, and WPA3 and Enhanced Open (OWE) for greater password and guest security. The 500H series includes a limited lifetime warranty.
Cost-effective Wi-Fi 6 hospitality access points provide up to 1.49 Gbps maximum combined data rate with a range of connectivity options for venues such as hotels, residence halls, and remote offices
The AP provides supports for OFDMA for enhanced multi-user efficiency, and WPA3 and Enhanced Open for greater security
The AP provides IoT-ready Bluetooth 5 and Zigbee support
Dynamic segmentation and policy enforcement firewalls (PEFs) automatically enforce consistent policies across the network, enhancing user and device security
Zero touch provisioning (ZTP) provides ease of implementation in branch offices and remote sites, without on-site technical expertise
You can customize deployment with optional desktop stand and models that offer choice of wired connectivity, USB, and PoE out support
Wi-Fi 6 Performance for Hotels, Dorms, and Remote Offices
- HPE Aruba Networking 500H Series Unified Hospitality Access Points deliver a maximum combined data rate of 1.49 Gbps with 2 spatial streams to meet the needs of low and medium density environments.
- The AP provides Wi-Fi CERTIFIED® with support for Wi-Fi 6 features such as OFDMA, MU-MIMO, and target wait time (TWT) to drive improved efficiency. It handles multiple Wi-Fi 6 capable clients on each channel simultaneously, regardless of device or traffic type.
- Enhanced wireless experience with HPE Aruba Networking ClientMatch technology removes sticky client issues by steering a client to the AP where it receives a strong radio signal.
Flexible Deployment and Unified Management
- The HPE Aruba Networking 500H Series Unified Hospitality Access Points can be installed on a wall for hotel or residence hall environments or installed with optional desktop stand for tabletop deployment.
- The AP manages with HPE Aruba Networking Central, an AI-powered solution that simplifies IT operations, improves agility, and reduces costs by unifying management of campus, branch, remote, data center, and IoT networks from one dashboard.
- The AP-503H model has three 1 Gbps Ethernet ports (1x 1 Gbps uplink, 2x 1 Gbps downlink). The AP-505H model has five Ethernet ports (1x 2.5 Gbps uplink, 4x 1 Gbps downlink), supports PoE out on two ports, and includes a USB port.
- Product bundles for remote desktop use include access point, desk mount, power adapter, and power cord (US and EU only).
- Zero touch provisioning (ZTP) provides ease of implementation in branch offices and remote sites, without on-site technical expertise.
Ready for IoT
- The HPE Aruba Networking 500H Series Unified Hospitality Access Points support Bluetooth 5 and Zigbee wireless protocols through an integrated IoT radio. The AP-505H model also has an integrated USB port to support a range of IoT devices.
- The AP simplifies deploying and managing IoT location services, asset-tracking services, security solutions, and IoT sensors.
- HPE Aruba Networking Central client insights uses deep packet inspection to provide additional context and behavioral information that help verify devices are receiving proper policy enforcement and continuously monitor for rogue devices.
Simple and Secure Access
- The HPE Aruba Networking 500H Series Unified Hospitality Access Points offer enhanced security with dynamic segmentation to remove time-consuming and error-prone task of managing complex and static VLANs, ACLs and subnets by dynamically assigning policies and keeping traffic protected and separated.
- It offers stronger encryption and authentication with WPA3, protected credentials/keys storage for guest access with Enhanced Open, and user and IoT access policy enforcement firewalls (PEFs).
- WPA3 and Enhanced Open (OWE) security increases enterprise-level security by providing stronger guest access protections without increasing complexity.
- Trusted platform module (TPM) secures credentials, keys, and boot code.
Specifications
| TechnicalSpecifications | |
|---|---|
| Ports | 1 x 10/100/1000BASE-T RJ-45 port, auto-sensing link speed and MDI/MDX 4 x 10/100/1000BASE-T RJ-45 ports, auto-sensing link speed and MDI/MDX |
| Certifications | Wi‑Fi Alliance®: Wi-Fi CERTIFIED® a, b, g, n, ac Wi-Fi CERTIFIED 6 (ax) WPA, WPA2 and WPA3–Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, Wi-Fi Agile Multiband Wi-Fi CERTIFIED Location (AP-505H only) Bluetooth SIG Ethernet Alliance (PoE) |
| Regulatory | FCC/ISED CE Marked RED Directive 2014/53/EU EMC Directive 2014/30/EU Low Voltage Directive 2014/35/EU UL/IEC/EN 62368-1 EN 60601-1-1, EN60601-1-2 For more country-specific regulatory information and approvals, contact your HPE representative. |
| Wi-Fi antenna | Two integrated semi-directional antennas for 2x2 MIMO with peak single antenna gain of 5.2 dBi in 2.4 GHz and 5.4 dBi in 5 GHz. Built-in antennas are optimized for vertical wall or desk mounted orientation of the AP. Combining the patterns of each of the antennas of the MIMO radios, the peak gain of the combined, average pattern is 3.3 dBi in 2.4 GHz and 2.9 dBi in 5 GHz. |
| Product dimensions (metric) | 150 x 86 x 47 mm |
| Weight | 360 gm |
