HPE Aruba CX 6405 v2 Switch 10 Gigabit
HPE Aruba CX 6405 v2 - Switch - L3 - Administreret - front til ryg-luftstrøm - monterbar på stativ - for P/N: R0X27C, R0X38C, R0X39C, R0X40C, R0X41C, R0X42C, R0X43C
-
Product no 1000749979
Model R0X26C
Brand Hewlett Packard Ente
EAN 0190017537382
Weight 29.3 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | HPE Aruba CX 6405 v2 - switch - Administreret - monterbar på stativ |
| Enhedstype | Switch - L3 - Administreret |
| Pakningstype | Front til ryg-luftstrøm monterbar på stativ 7U |
| Undertype | 10 Gigabit Ethernet |
| Præstation | Omkoblingskapacitet: 14 Tbps<br>Kapacitet: 5,7 Bpps |
| Kapacitet | Switched virtual interfaces (SVIs): 2000<br>IPv4 værtstabelkapacitet: 32000<br>IPv6 værtstabelkapacitet: 32000<br>IPv4 ruter (Unicast): 64000<br>IPv6 ruter (Unicast): 64000<br>IPv4 ruter (Multicast): 8000<br>IPv6 ruter (Multicast): 8000<br>IGMP-grupper: 8000<br>MLD-grupper: 4000<br>IPv4 ACL-indgange (ingress): 5000<br>IPv6 ACL-poster (indgang): 1250<br>MAC ACL-indgange (ingress): 5000<br>IPv4 ACL-indgange (egress): 2000<br>IPv6 ACL-poster (udgang): 500<br>MAC ACL-indgange (egress): 2000 |
| MAC adresse table størrelse | 32.768 indtastninger |
| Jumborammesupport | 9198 byte |
| Routingprotokol | EGP, BGP-4, IGMPv2, IGMP, VRRP, OSPFv2, IGMPv3, OSPFv3, MSDP, statisk IPv4 routing, statisk IPv6 routing, ECMP, police-baseret routing (PBR), MLDv2, MLD, Bidirectional Forwarding Detection (BFD) |
| Protokol til fjernadministration | RMON, Telnet, SNMP 3, SNMP 2c, HTTPS, TFTP, SSH, SSH-2, CLI, XRMON, SFTP |
| Egenskaber | DHCP-understøttelse, understøttet af ARP, VLAN-understøttet, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog understøttet, Høj rådighedsgrad, firmware kan opgraderes, sFlow, PVST, MSTP support, ACL support, QoS, Jumbo Frames support, MDL snooping, UDLD, Rapid PVST+, DWRR, LLDP support, MIB, DHCP beskyttelse, dobbelt firmware-billeder, MVRP, pakkestormbeskyttelse, CoS, SP, transmissions-stormbeskyttelse, ToS, BPDU, VXLAN, Multicast Storm Protection, NTP, RA-værn, PIM, VLAN Tagging, Rapid Reconfiguration of Spanning Tree (RSTP), IPv4 og IPv6 dobbelt stak, IP multicast, BSR Mechanism, VSX, dynamisk IPv6 lockdown, ND-snagen, Unicast Storm-beskyttelse, Microsoft NLB |
| Overensstemmelsesstandarder | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3at, IEEE 802.1AX, IEEE 802.3bt |
| Overskudsspænding | Valgfri |
| Dimensioner (B x D x H) | 44.26 cm x 44.85 cm x 30.66 cm |
| Vægt | 29.3 kg |
| Producentgaranti | Begrænset livtidsgaranti |
| Designet for | P/N: R0X27C, R0X38C, R0X39C, R0X40C, R0X41C, R0X42C, R0X43C |

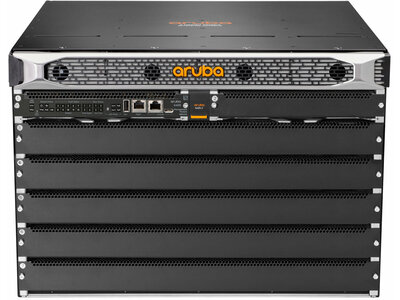

HPE Aruba Networking CX 6405 v2 Switch
The HPE Aruba Networking CX 6400 Switch Series is a modern, flexible, and intelligent family of modular switches ideal for enterprise campus and data center deployments. With a cloud-native design that combines a fully programmable OS with HPE Aruba Networking CX Network Analytics Engine, the CX 6400 series extends industry-leading monitoring and troubleshooting across the network. Powerful Gen7 ASIC architecture delivers fast, future-ready non-blocking performance. HPE Aruba Networking Virtual Switching Extension (VSX) brings high availability and enables fast, uninterrupted upgrades. Support for HPE Aruba Networking Switch Multi-Edit Software and the HPE Aruba Networking CX Mobile App validates configurations and simplify deployment. This series offers 5 and 10-slot compact chassis, a choice of line rate interfaces including 25GbE, 100GbE, and full-density 60W Power over Ethernet (PoE) with HPE Smart Rate multi-gigabit Ethernet ideal for access, aggregation and core deployments.
High-performance modular Layer 3 switches with BGP, EVPN, VXLAN, VRF, and OSPF with robust security, MACsec encryption, and QoS while delivering up to 28 Tbps in non-blocking bandwidth
High availability with industry-leading HPE Aruba Networking Virtual Switching Extension (VSX) and redundant power supplies and fans
Full density HPE Smart Rate (1/2.5/5GbE) multi-gigabit, 60W PoE, and SFP+ modules
High-speed, non-blocking 1GbE, 10GbE, 25GbE, 40GbE, and 100GbE with intelligent monitoring, visibility and remediation with the HPE Aruba Networking CX Network Analytics Engine
Manage through single pane of glass with HPE Aruba Networking Central across wired, wireless, and WAN
Dynamic segmentation enables enhanced security and simple access for users and Internet of Things (IoT) and leverages TLS-encrypted traffic analytics
Automation and analytics
- The CX 6400 series delivers unparalleled visibility with built-in analytics for real-time monitoring and troubleshooting to help fix problems faster. The HPE Aruba Networking CX Network Analytics Engine automatically interrogates and analyzes events that can impact network health.
- Advanced telemetry and automation provide the ability to easily identify and troubleshoot network, system, application, and security-related issues easily, through the use of Python agents and REST APIs.
- The time series database (TSDB) stores configuration and operational state data, making it available to quickly resolve network issues.
High Availability and performance
- The HPE Aruba Networking CX 6400 Switch Series uses a fully distributed architecture with Gen7 ASICs that deliver very low latency, increased packet buffering, and adaptive power consumption. All switching and routing are wire-speed to meet the demands of bandwidth-intensive applications.
- The CX 6400 series features high-speed, non-blocking 1GbE, 10 GbE, 25GbE, 40GbE, and 100GbE for scalable connectivity.
- The ability to maintain a synchronous state across dual control planes allows a simplified carrier-class high-availability solution called HPE Aruba Networking Virtual Switching Extension (VSX) that enables a distributed architecture, which is available during upgrades or control plane events.
- High-performance and versatile platform supports non-blocking 1GbE, 10GbE, 25GbE, 40GbE, and 100GbE connections, and high-density connectivity for aggregation with up to 480 ports of HPE Smart Rate multi-gigabit (1/2.5/5GbE) with 60W PoE for a total of 28,880W of PoE.
Smarter segmentation
- The HPE Aruba Networking CX 6400 Switch Series supports dynamic segmentation that automatically applies and enforces user, device, and application-aware policies on HPE Aruba Networking wired and wireless infrastructures.
- Automated device profiling, role-based access control, and Layer 7 firewall features deliver enhanced visibility and performance for a better overall experience for both IT and end-users alike.
- Switch-to-switch tunnels enable scalable multi-tenancy support with VXLAN to VRF mapping, while allowing policy application through user roles.
Automated configuration and management
- HPE Aruba Networking Multi-edit Software introduces automation that allows for rapid network‑wide changes, and helps ensures policy conformance post network updates. Intelligent capabilities include search, edit, validation (including conformance checking), deployment and audit features.
- HPE Aruba Networking Central is an AI‑powered cloud and on-premises solution that simplifies operations, optimizes performance, and boosts troubleshooting. HPE Aruba Networking Central manages switching, WLAN, and SD-WAN—and scales from the smallest business to the largest enterprise.
- An "easy-to-use" mobile app simplifies connecting and managing CX 6400 switches for any size project. Switch information can also be imported into HPE Aruba Networking Switch Multi‑Edit Software for simplified configuration management and to continuously validate the conformance of configurations
Specifications
| TechnicalSpecifications | |
|---|---|
| Ports | High speed, non-blocking 1/10/25/40/50/100GbE ports 10 I/O module slots maximum depending on model |
| Memory and processor | CPU Management Module: Quad-core Arm® Cortex™ A72 at 1.8 GHz Line Cards: Dual-core Arm® Cortex™ A72 at 1.8 GHz (R0X38A‑R0X45A and R0X38B‑R0X40B) Line Cards: Quad-core Arm® Cortex™ A72 at 1.8 GHz (R0X38C‑R0X45C, S0E48A, S1T83A) Memory and flash Management Module: 16 GB DDR4 ECC memory: 32 GB eMMC Flash memory Line Cards: 4 GB DDR4 memory (R0X38A‑R0X45A and R0X38B‑R0X40B) Line Cards: 8 GB DDR4 memory (R0X38C‑R0X45C, S0E48A, S1T83A) |
| Latency | 1G: 5.32 μSec 10G: 1.48 μSec 25G: 2.78 μSec 40G: 1.31 μSec 100G: 1.42 μSec |
| Throughput | Up to 20 Bpps, depending on model and configuration |
| Switching capacity | 14 Tbps |
| PoE capability | Supports PoE standards IEEE 802.3af, 802.3at, 802.3bt (up to 90W) |
| Stacking capabilities | Yes |
| Management features | 1 x RJ‑45 console port 1 x USB‑C console port 1 x OOBM port 1 x USB Type-A host port HPE Aruba Networking Management Software (AirWave) HPE Aruba Networking Central HPE Aruba Networking Switch Multi-Edit Software HPE Aruba Networking CX Mobile App Command-line interface SNMP v2c/v3 RMON |
| Power supply | Power supply units are not included order separately. Supports four modular front‑serviceable power supplies with removable rear‑serviceable power cord inlet adapters. Supported power supplies: R0X35A, R0X36A. PoE available will be dependent on the number of management modules, line cards, fan trays and the number of power supplies used. Power supplies not included order separately. |
| Input voltage | R0X35A and R0X36A PSUs: 110–127/200–240 VAC |
| Power consumption | R0X35A PSU: 1800W at 200–240 VAC, 1100W at 110–127 VAC R0X36A PSU: 3000W at 200–240 VAC, 1500W at 110–127 VAC |
| Product dimensions (metric) | 52.88 x 44.26 x 44.85 cm, maximum, depending on model |
| Weight | 53.5 kg, maximum, depending on model |
