HPE Aruba Instant ON AP22 (RW) Trådløs forbindelse Hvid
HPE Networking Instant On AP22 (RW) - Trådløs forbindelse - Bluetooth, Wi-Fi 6 - 2.4 GHz, 5 GHz - væg/loftsmonterbar
-
Product no 996140166
Model R4W02A
Brand Hewlett Packard Ente
EAN 0190017445397
Weight 0.6 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | HPE Networking Instant On AP22 (RW) - trådløs forbindelse - Bluetooth, Wi-Fi 6 |
| Enhedstype | Trådløs forbindelse |
| Formfaktor | Væg/loftsmonterbar - indendørs |
| Dataforbindelsesprotokol | Bluetooth, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6) |
| Frekvensbånd | 2.4 GHz, 5 GHz |
| Præstation | Maksimum datahastighed (5 GHz): 1,2 Gbps<br>Maksimum datahastighed (2,4 GHz): 574 Mbps |
| Udstyr inkluderet | Væg/loftsskinnemonteringsklemme |
| Power Over Ethernet (PoE) understøttet | PoE |
| Dimensioner (B x D x H) | 16 cm x 16 cm x 3.7 cm |
| Vægt | 500 g |
| Producentgaranti | 1 års garanti |
| General | |
|---|---|
| Depth | 16 cm |
| Device Type | Wireless access point |
| Height | 3.7 cm |
| Ruggedized Design | Indoor |
| Weight | 500 g |
| Width | 16 cm |
| Networking | |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, Wi-Fi CERTIFIED 6 |
| Connectivity Technology | Wireless |
| Data Link Protocol | Bluetooth, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 802.11ax |
| Encryption Algorithm | WPA2, WPA3 |
| Features | Firewall protection, manageable, static IP mode, Trusted Platform Module (TPM), reset button, Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, security lock slot (cable lock sold separately), Advanced Cellular Coexistence (ACC), M |
| Form Factor | Wall / ceiling mountable |
| Frequency Band | 2.4 GHz, 5 GHz |
| Line Coding Format | 1024 QAM |
| Network / Transport Protocol | PPPoE |
| Performance | Maximum data rate (5 GHz): 1.2 Gbps | Maximum data rate (2.4 GHz): 574 Mbps |
| Spread Spectrum Method | OFDMA |
| Status Indicators | Status |
| Antenna | |
| Antenna | Internal |
| Directivity | Omni-directional |
| Internet of Things (IoT) | |
| Communications Technology | Bluetooth Low Energy (LE) |
| Internet of Things (IoT) Compatible | Yes |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 1000 (uplink) |
| Miscellaneous | |
| Cables Included | 1 x network cable |
| Compliant Standards | UL 2043, EN 60601-1-2, EN 60601-1-1 |
| Included Accessories | Wall/ceiling rail mounting clip |
| MTBF | 91 years |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE |
| Software / System Requirements | |
| Software Included | InstantOn |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year | Technical support - phone consulting - 90 days | Product info support - web support - 1 year |
| Environmental Parameters | |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |

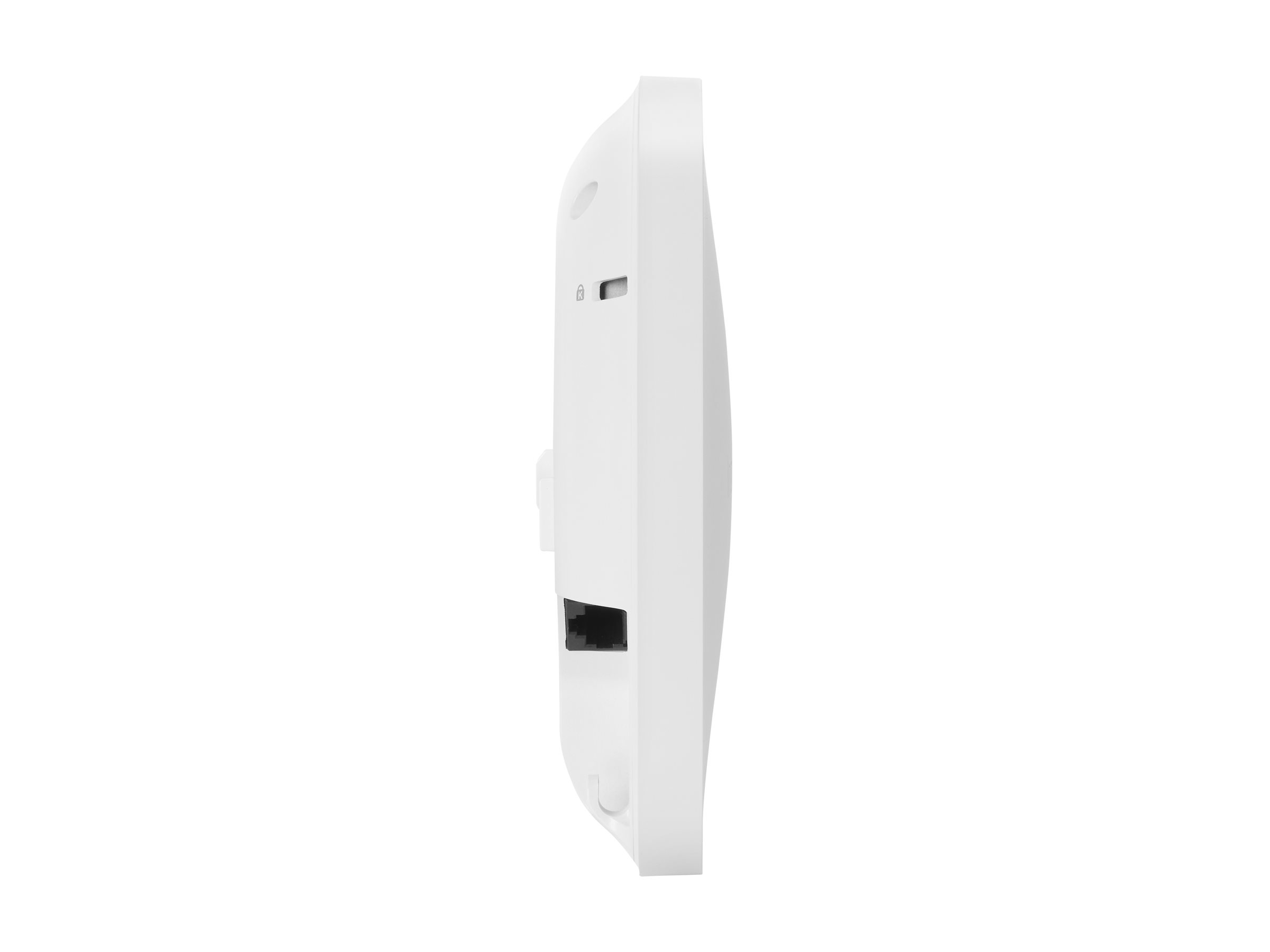

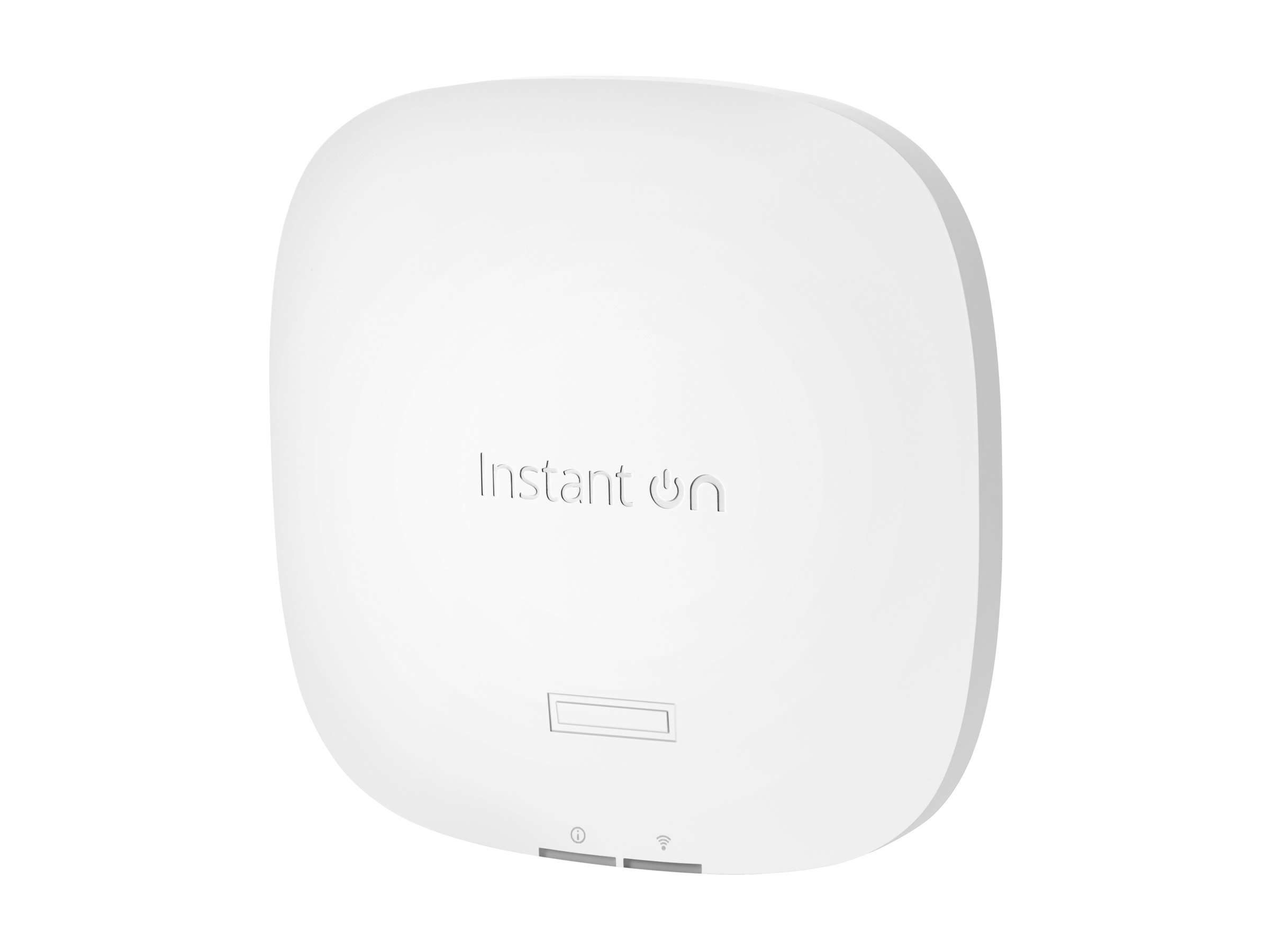

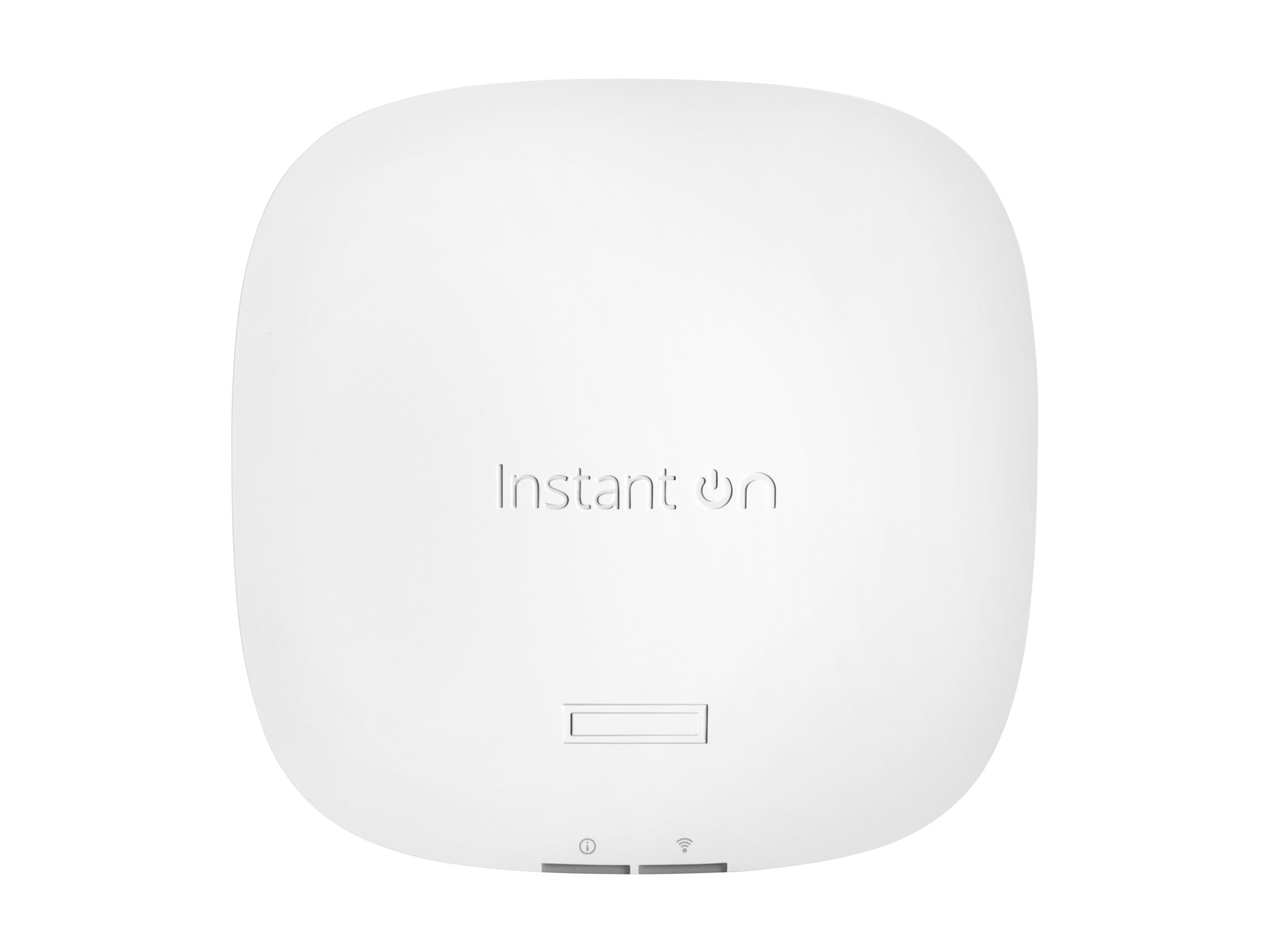

HPE Networking Instant On Indoor Access Point 2x2 Wi-Fi 6 (RW) AP22
HPE Networking Instant On Access Points AP22 delivers affordable, business-grade 802.11ax Wi-Fi for high performance, high density small business environments. Business-grade capabilities are designed to meet the growing number of mobile, IoT, and security needs. The compact form factor of the AP22 delivers multi-user capabilities and a maximum aggregate peak data rate of 1.2 Gbps for high-definition video streaming and cloud application requirements. Everything from mounting hardware to easy-to-use web and mobile app management tools, and business-grade software features are included; no extra charge or need for external controllers.
Wi-Fi 6 for high performance and efficiency
Supports up to 75 associated clients
Support for WPA2/WPA3 protected employee and guest login with Enhanced Open for per user guest access
Incredible Efficiency with Wi-Fi 6
- HPE Networking Instant On Access Points AP22 includes an easy-to-use web GUI and templates; access points are simple to deploy and are up and running in minutes.
- HPE Networking Instant On Access Points AP22 supports the Wi-Fi 6 standard, including features such as orthogonal frequency-division multiple access (OFDMA) and bi-directional MIMO (MIMO).
- HPE Networking Instant On Access Points AP22 support features Target Wake Time (TWT) that help establish a schedule when clients need to communicate with an AP.
Reduce High Cost of Cabling with Full-scale Wireless Mesh Coverage
- HPE Networking Instant On Access Points AP22 have built-in wireless mesh capabilities to cost-effectively extend Wi-Fi connectivity without additional cables.
- Conveniently expands your network to hard-to-wire areas – nearly eliminating spotty connections and dead zones, providing Wi-Fi where you need it.
Safeguard Sensitive Data with WPA2/WPA3 and Enhanced Open
- HPE Networking Instant On Access Points AP22 comes with integrated Wi-Fi Alliance security standard WPA2/WPA3 and Enhanced Open support for protected wireless access.
- HPE Networking Instant On Access Points AP22 comes with integrated router, gateway, and firewall functionality.
- Create up to eight different SSIDs under one network name to keep your data safe, whether surfing the web or checking HR data.
- Block undesired applications and websites with greater traffic visibility without the need for any external gateway or additional costs; the control is at your fingertips.
Creates a Custom Guest Access Experience
- HPE Networking Instant On Access Points AP22 are ideal for single or distributed small business sites such as graphic design firms, cafés, restaurants, and other Wi-Fi hotspots.
- Simple to build landing page allows customization of your guest access page with your own brand and logo.
- Gain insights into customers with third party captive portal integration with partners like Skyfii, Purple, Aislelabs, and Wavespot.
Specifications
| TechnicalSpecifications | |
|---|---|
| Ports | 1 GbE BaseT Uplink DC Power Connector Bluetooth Low Energy (BLE) LED status Indicators Reset/LED control button Kensington security slot. |
| Mounting | Ceiling/Wall-mount clip |
| Connectivity, standard | Ultra-fast 802.11ax |
| Input voltage | Power over Ethernet (PoE): 802.3af (class 3) DC power (12V) Note: Power sources are sold separately unless you purchase the bundle SKU |
| Power consumption | Max power consumption: 10.1W (PoE), 8.8W (DC) |
| Certifications | Wi-Fi Alliance certified (WFA) 802.11ax with (Wi-Fi 6), WPA2, WPA3 |
| Wi-Fi antenna | Antennas: Down-tilt Dual Omni-directional 2x2 MIMO Antenna Gain: 4.9 dBi in 2.4 GHz 5.7 dBi in. 5 GHz Maximum transmit power: 5 GHz band: +21 dBm (+18 dBm per chain, 3 dB MIMO gain) 2.4 GHz band: +20 dBm (+17 dBm per chain, 3 dB MIMO gain) |
| Radio coverage | Dual-radio 802.11ax 2x2 5 GHz/2.4 GHz MIMO |
| Product dimensions (metric) | 37x 160 x 160 mm |
| Weight | 500 g |
