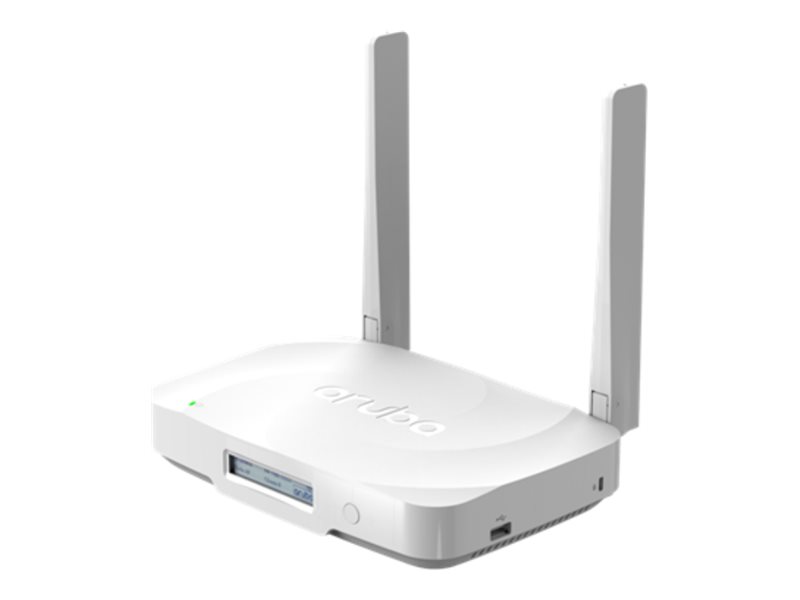

HPE Aruba Networking AP-605R12-EU Wi-Fi 6E CAT12 LTE Dual-radio Tri-band 2x2 Remote AP 20/40 (2.4 GHz), 20/40/80 (5 GHz), 20/40/80/160 (6 GHz), and maximum peak data rate 3.6 Gbps Hvid
HPE Aruba Networking AP-605R12 (EU) - Trådløs forbindelse - Wi-Fi 6 - ZigBee, Bluetooth, LTE, Wi-Fi 6E - 2.4 GHz, 5 GHz, 6 GHz - BTO - desktop - med HPE Aruba AP-605CM12 LTE mobilmodul
-
Product no 1001583965
Model R8N19A
Brand Hewlett Packard Ente
EAN 0190017532783
Weight 2.23 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | HPE Aruba Networking AP-605R12 (EU) - trådløs forbindelse - ZigBee, Bluetooth, LTE, Wi-Fi 6E - med HPE Aruba AP-605CM12 LTE mobilmodul |
| Enhedstype | Trådløs forbindelse |
| Formfaktor | Desktop - indendørs |
| Dataforbindelsesprotokol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, ZigBee, IEEE 802.11ac, Bluetooth 5.0, LTE, IEEE 802.11ax (Wi-Fi 6E) |
| Frekvensbånd | 2.4 GHz, 5 GHz, 6 GHz |
| Præstation | Maksimum datahastighed (5 GHz + 6 GHz bånd): 3,6 Gbps<br>Maksimum datahastighed (2,4 GHz): 574 Mbps<br>Maksimum datahastighed (5 GHz): 1,2 Gbps<br>Maksimum datahastighed (6 GHz): 2,4 Gbps |
| Kapacitet | Associated client devices per radio: 512<br>BSSIDs per radio: 16<br>OFDMA-enheder: 8 |
| OS nødvendig | ArubaOS, InstantOS 10.5.0.0 |
| Power Over Ethernet (PoE) understøttet | PoE+ |
| Pristype | BTO |
| Dimensioner (B x D x H) | 22.5 cm x 15 cm x 4 cm |
| Vægt | 900 g |
| Producentgaranti | Begrænset livtidsgaranti |
| Bundtet med | HPE Aruba AP-605CM12 LTE mobilmodul |
HPE Aruba Networking AP-605R12-EU Wi-Fi 6E CAT12 LTE Dual-radio Tri-band 2x2 Remote AP
HPE Aruba Networking 600R Series Remote Access Points enable IT teams to deliver a seamless and secure user experience to remote porwer users and small branch environments. The HPE Aruba Networking 600R Series is based on Wi-Fi 6E, achieving a combined maximum 3.6 Gbps data rate (using 5 GHz and 6 GHz bands) and increasing capacity by up to 1200 MHz with more 160 MHz channels to better support ever-increasing Wi-Fi demands, especially for latency-sensitive, high-bandwidth video communications. HPE Aruba Networking 600R Series Remote Access Points feature dual software-programable radios that can be tuned to any two of the three Wi-Fi 6E bands: 2.4 GHz, 5 GHz, and 6 GHz, plus a high-speed cellular module for primary or backup connectivity. IT teams are able to easily extend the WAN to employees that work from home with route/tunnel orchestration, policy-based routing, WAN health visibility, and cloud security as part of the HPE Aruba Networking Central microbranch functionality.
Unlock the 6 GHz band to deliver up to 1200 MHz additional capacity and up to 3.6 Gbps maximum combined data rate to ensure a seamless, secure experience for remote workers and small branches.
Designed for remote power users and small branches with a high-speed cellular module and flexible operating modes that leverage software-programable dual radios across 2.4 GHz, 5 GHz, and 6 GHz bands.
Multiple uplink/downlink options: 2.5 Gbps uplink/downlink Ethernet port, dedicated 1 Gbps uplink port, and three dedicated downlink ports.
Zero touch provisioning to extend the workplace desk experience anywhere that has an internet or cellular connection.
Managed via cloud-native HPE Aruba Networking Central to extend the WAN to home offices, small offices, and even temporary locations with built-in SD-WAN and cloud security.
Delivers Cost-Effective 6 Ghz Coverage for Remote Work and Small Branches
- HPE Aruba Networking 600R Series Wi-Fi 6E Remote Access Points offer 6 GHz coverage with up to 1200 MHz more capacity.
- 3.6 Gbps combined maximum data rate (using the 6 GHz and 5 GHz bands).
- Software-programable radios for any two of the three Wi-Fi 6E bands: 2.4 GHz, 5 GHz, 6 GHz.
Unifies Management Across Campus, Branch, and Remote Work
- HPE Aruba Networking 600R Series Remote Access Points are deployed and managed using HPE Aruba Networking Central.
- Remote work microbranch capabilities include SD-WAN route/tunnel orchestration, policy-based routing, multiple active tunnels, WAN health visilbity, and cloud security orchestration.
- HPE Aruba Networking 600R Series Remote Access Points include GPS receivers and fine time measurement to accurately auto-locate themselves.
- Support Open Locate, an emerging standard that allows APs to share their location over the air and through cloud-based APIs.
Extends Connectivity with Primary or Backup Cellular Module
- HPE Aruba Networking 600R Series Remote Access Points can be extended with a CAT 12 module that includes antennas and a high speed interface for LTE connectivity.
- 5G ready to future proof your investment.
Builds Upon the Capabilities of Wi-Fi 6 (802.11ax)
- HPE Aruba Networking 600R Series Remote Access Points are Wi-Fi Cerfitied™and support 802.11ax.
- Optimizes the user experience and energy consumption via Air Slice for application-level SLAs, Advanced Cellular Coexistence (ACC) to minimize interference, and Intelligent Power Monitoring (IPM).
Specifications
| TechnicalSpecifications | |
|---|---|
| Ports | Uplink (E0): Ethernet wired network port (RJ-45) Up-/downlink (E1): Ethernet wired network port (RJ-45) Downlink (E1-E3): Ethernet wired network ports (RJ-45) DC power interface USB 2.0 host interface (Type A connector) Cellular radio module interface (accessible after removing the back cover) Serial console interface (proprietary, micro-B USB physical jack) Kensington security slot |
| Mounting | The AP is intended to be desk mounted the integrated antennas are optimized for that. |
| Connectivity, standard | Wi-Fi 6E bands: 2.4 GHz, 5 GHz, 6 GHz plus an add-on cellular module for primary or backup connectivity. |
| Input voltage | 48V/5W DC |
| Power consumption | Maximum (worst-case) power consumption: 40W Maximum (worst-case) power consumption in idle mode: 4.9W. |
| Certifications | Wi-Fi Alliance (WFA): Wi-Fi CERTIFIED a, b, g, n, ac Wi-Fi CERTIFIED 6E (ax, 6GHz) WPA, WPA2 and WPA3 – Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, Wi-Fi Agile Multiband Bluetooth SIG Ethernet Alliance (POE, PSE device, class 3) |
| Regulatory | FCC/ISED CE Marked RED Directive 2014/53/EU EMC Directive 2014/30/EU Low Voltage Directive 2014/35/EU UL/IEC/EN 60950 IEC/EN 62368-1 EN 60601-1-1, EN60601-1-2 |
| Wi-Fi antenna | Integrated omni-directional antennas for 2x2 MIMO with peak antenna gain of 5.5dBi in 2.4GHz, 5.5dBi in 5GHz and 5.5dBi in 6GHz. Built-in antennas are optimized for horizontal desk mounted orientation of the AP. Combining the patterns of each of the antennas of the MIMO radios, the peak gain of the combined, average pattern is 4.4dBi in 2.4GHz, 4.7dBi in 5GHz and 4.7dBi in 6GHz. |
| Radio coverage | Indoor, tri-radio, 2.4GHz, 5GHz and 6GHz (dual concurrent) 802.11ax 2x2 MIMO. |
