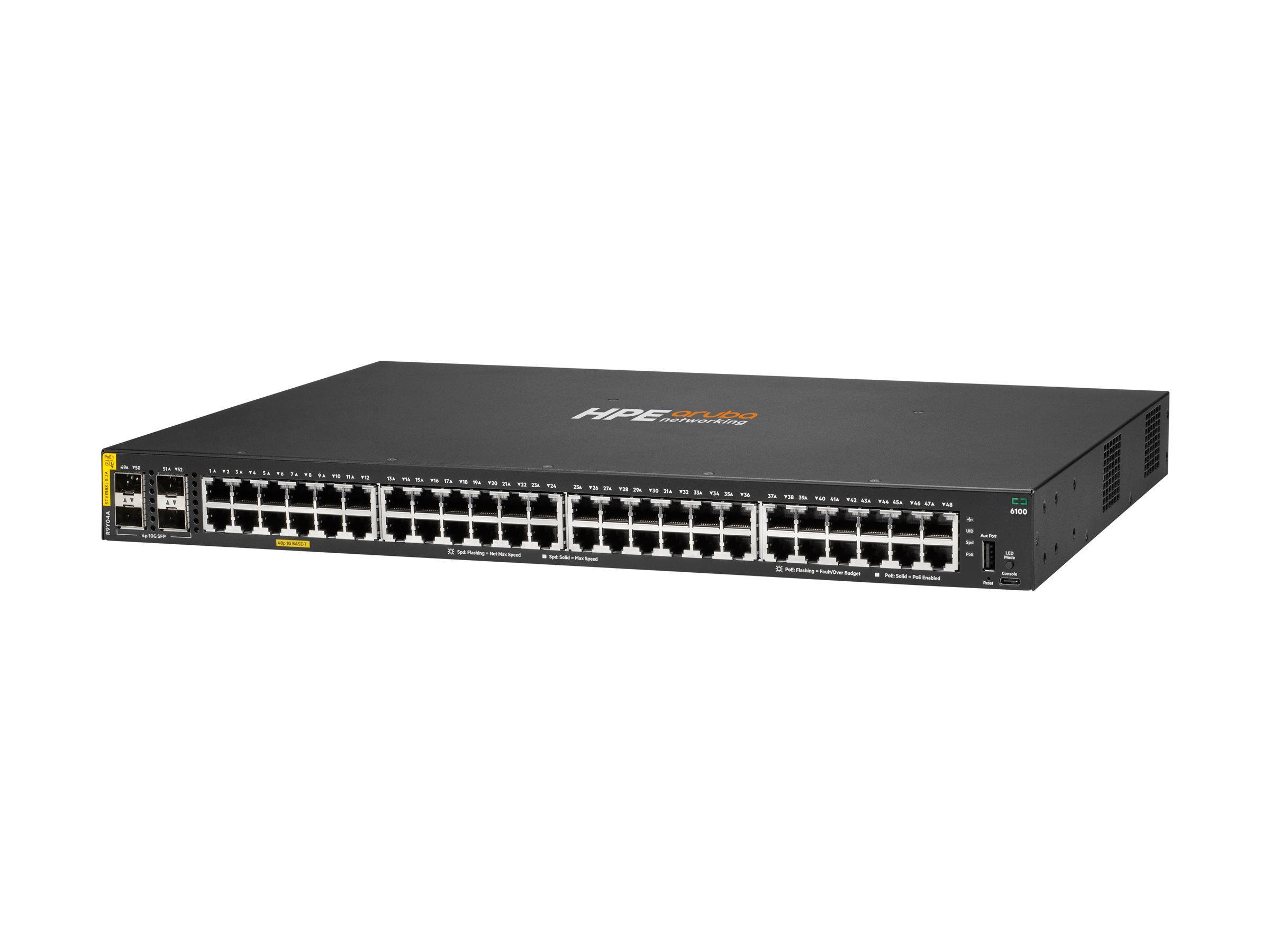

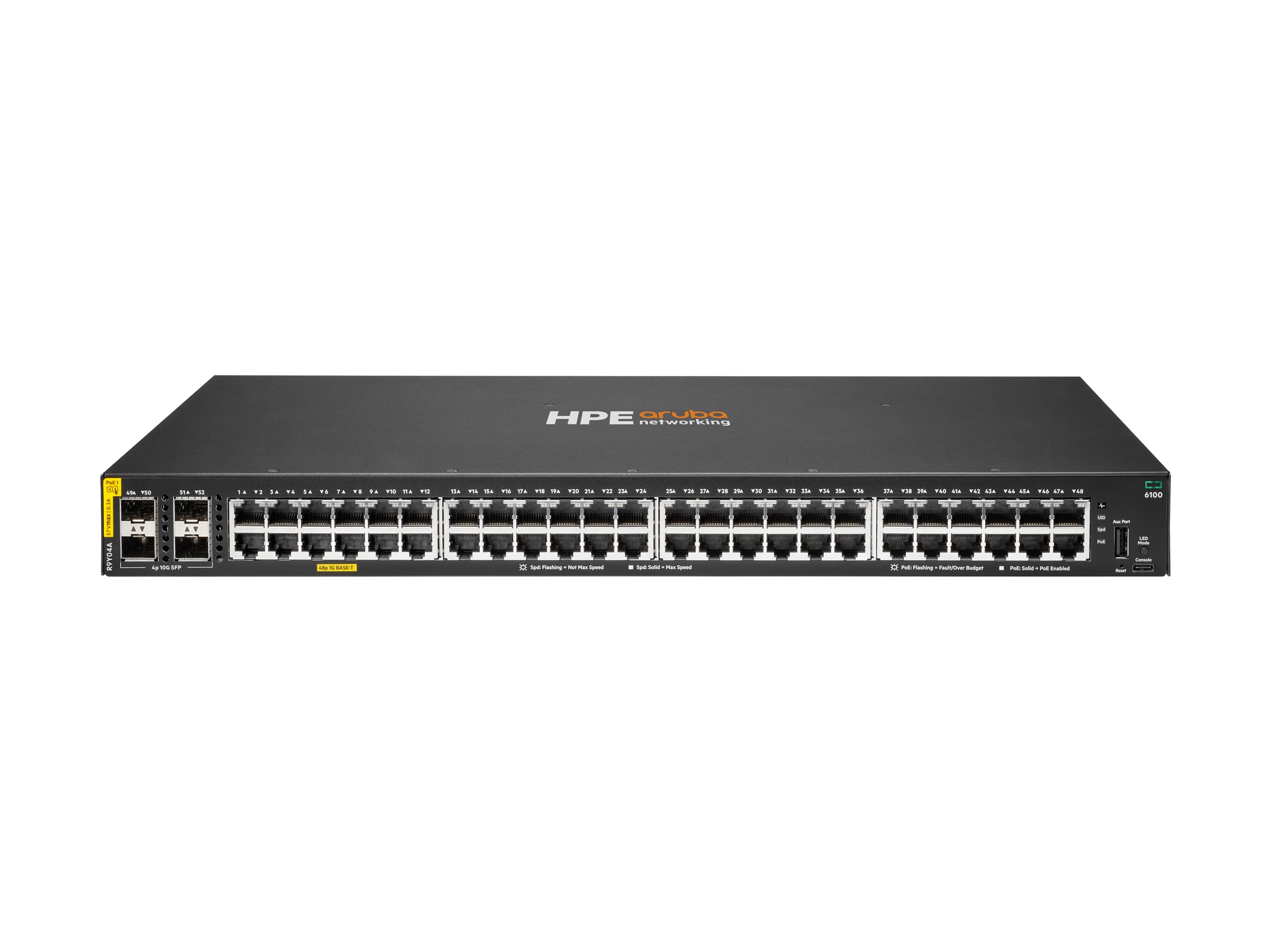

HPE Aruba Networking CX 6100 48G Class4 PoE 4SFP+ 740W Switch Switch 48-porte Gigabit Ethernet PoE+
HPE Aruba Networking CX 6100 48G Class4 PoE 4SFP+ 740W Switch - Switch - L3 - Administreret - 48 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink) - side til side-luftstrøm - monterbar på stativ, væg-monterbar - PoE+ (740 W) - CTO
-
Product no 1001186521
Model R9Y04A
Brand Hewlett Packard Ente
EAN 0190017611846
Weight 4.7 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | HPE Aruba Networking CX 6100 48G Class4 PoE 4SFP+ 740W Switch - switch - 48 porte - Administreret - monterbar på stativ |
| Enhedstype | Switch - 48 porte - L3 - Administreret |
| Pakningstype | Side til side-luftstrøm monterbar på stativ 1U |
| Undertype | Gigabit Ethernet |
| Porte | 48 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE-budget | 740 W |
| Præstation | Omkoblingskapacitet: 176 Gbps<br>Kapacitet: 98,6 Mpps<br>Latens (1 Gbps): 1.9 µs<br>Latens (10 Gbps): 1.8 µs |
| Kapacitet | Skiftede virtuelle interfacer (SVIs) (dobbelt stak): 16<br>IPv4 ACL-indgange (ingress): 256<br>IPv6 ACL-poster (indgang): 128<br>MAC ACL-indgange (ingress): 256<br>IGMP-grupper: 512<br>MLD-grupper: 512<br>IPv4 værtstabelkapacitet: 1024<br>IPv6 værtstabelkapacitet: 512<br>IPv4 ruter (Unicast): 512<br>IPv6 ruter (Unicast): 512<br>Pakkebufferstørrelse: 12.38 MB |
| MAC adresse table størrelse | 8192 indtastninger |
| Jumborammesupport | 9220 byte |
| Routingprotokol | IGMPv2, IGMP, IGMPv3, MLDv2, MLD |
| Protokol til fjernadministration | SNMP 2, SNMP, RMON, SNMP 3, CLI, MIB |
| Egenskaber | Layer 2 switching, RSTP support, MSTP support, UDLD, CoS, ToS, PoE Class 4, RPVST+, LLDP, UTM, Address Resolution Protocol |
| Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.3at, IEEE 802.3az |
| Effekt | AC 100-127/200-240 V (50/60 Hz) |
| Dimensioner (B x D x H) | 44.25 cm x 32.42 cm x 4.39 cm |
| Vægt | 4.7 kg |
| Systemkrav | AOS-CX |
| Pristype | CTO |
| Producentgaranti | Begrænset livtidsgaranti |
HPE Aruba Networking CX 6100 48G Class4 PoE 4SFP+ 740W Switch
The HPE Aruba Networking CX 6100 Switch Series is a modern family of entry-level access switches ideal for branch offices, mid-market enterprises, and SMB networks. Designed for reliable, simple, and secure access, this switch family provides a convenient wired access solution for enterprise networks supporting Internet of Things (IoT), mobile, and cloud applications. Prepare your network for future demands with a powerful ASIC and the programmable HPE Aruba Networking CX Switch Operating System to deliver a more consistent, more efficient operator experience. This Layer 2 switch series has convenient built-in high speed uplinks with up to 740W of IEEE 802.3at Class 4 PoE to support IoT devices such as security cameras and wireless APs. A compact and fanless 12-port model is ideal for use in quiet workspaces. With robust quality of service (QoS), support for static routing, and IPv6, these switches also simplify ownership with no switch software licensing requirements.
It simplifies IT operations with next-gen Layer 2 switch series that provides entry-level, reliable, and convenient wired access connectivity
The CX 6100 series provides right size with 12, 24, and 48-port 1U models with convenient built-in 1/10GbE uplinks and up to 740W of Class 4 PoE
It has compact and fan-less 12-port PoE model for space-constrained deployments
The CX 6100 provides flexibility to manage and simplify configurations with HPE Aruba Networking Central, HPE Aruba Networking Switch Multi-Edit Software, easy to use Web GUI, or industry-standard CLI
It offers scalability with an 8-member switch virtual switching framework (VSF) stacking for up to 384 downlink ports
Entry-level Layer 2 access switches
- The HPE Aruba Networking CX 6100 Switch Series offers gigabit connectivity with high-speed uplinks and optional PoE to provide entry-level, reliable, and convenient wired access connectivity for enterprise branch office and SMB networks.
- The switch series delivers a simple, consistent operator experience with the HPE Aruba Networking CX Switch Operating System (AOS-CX) used across HPE Aruba Networking CX switching platforms.
- It has fully-managed enterprise-class switches deliver Layer 2 capabilities with support for static routing, access control lists (ACLs), robust quality of service (QoS), traffic prioritization, sFlow®, and IPv6.
- The CX 6100 series provides right-size deployment with choice of 12, 24, and 48-port 1U models with convenient built-in 1/10GbE uplinks and up to 740W of Class 4 PoE.
- It simplifies ownership with no switch software licensing or subscriptions required.
AI-ready performance and power
- The HPE Aruba Networking CX 6100 Switch Series is designed with a dedicated ASIC that delivers very low latency, increased packet buffering, and adaptive power consumption needed for AI, Wi-Fi 7, and Internet of Things (IoT) requirements.
- It has up to 740W IEEE 802.3at Class 4 PoE with up to 30W per port supports newer Wi-Fi 7 and PoE devices.
- The four built-in wire speed 1/10GbE uplinks mitigate bottlenecks at the access layer where users and devices connect.
Simplified configuration and management
- The HPE Aruba Networking CX 6100 Switch Series provides flexibility to manage and simplify configurations with HPE Aruba Networking Central, HPE Aruba Networking Switch Multi-Edit Software, easy-to-use web GUI, or industry-standard CLI.
- HPE Aruba Networking Switch Multi-Edit Software introduces automation that allows for rapid network-wide changes and verifies policy conformance post network updates.
- The switch series offers unified management across wired, wireless, and WAN using HPE Aruba Networking Central.
- It reduces manual IT operation tasks around initial deployment or on-going configuration changes to accommodate adds, moves, and changes with colorless ports using local user roles and local MAC authentication (LMA).
- The CX 6100 series is ready for software-defined networking with REST APIs for fine-grained programmability of network tasks.
It offers virtual switching framework (VSF) stacking - Scale and simplicity
- It support for up to eight switches (or members) in a stack through chain or ring topology.
- It offers the flexibility to create stacks that span longer distances such as hundreds of meters across campuses to kilometers between sites.
- It has the flexibility to mix 24 and 48-port modular and fixed CX 6100 models.
- It has a simplified configuration and management as the switches act as a single chassis when stacked.
Specifications
| TechnicalSpecifications | |
|---|---|
| Ports | 48 x 10/100/1000BASE-T Class 4 PoE ports Supports PoE standards IEEE 802.3af, 802.3at 1 x USB-C console port 1 x USB Type-A host port |
| Memory and processor | CPU: Dual-core Arm® Cortex-A9 @ 1016 MHz Memory: 4 GB DDR3 Flash: 16 GB eMMC |
| Latency | 1 Gbps: 1.9 μSec , 10 Gbps: 1.8 μSec |
| Throughput | 98.6 Mpps |
| Switching capacity | 176 Gbps |
| PoE capability | 740W of Class 4 PoE |
| Management features | Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software |
| Power supply | Fixed power supply |
| Input voltage | 100–127 VAC / 200–240 VAC |
| Power consumption | Max. Power (w/o PoE): 49.7W Max. Power (w/ PoE): 890W |
