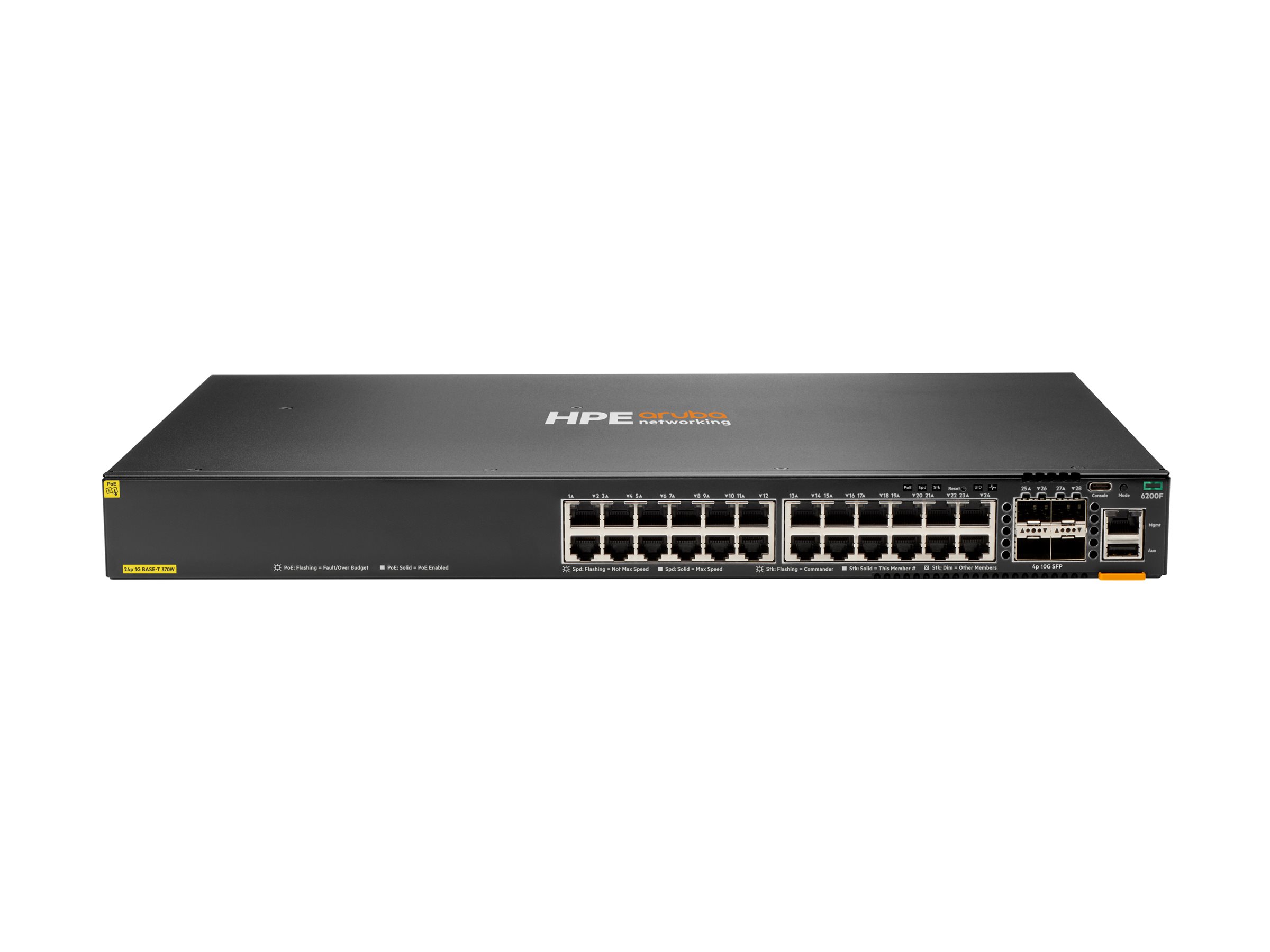

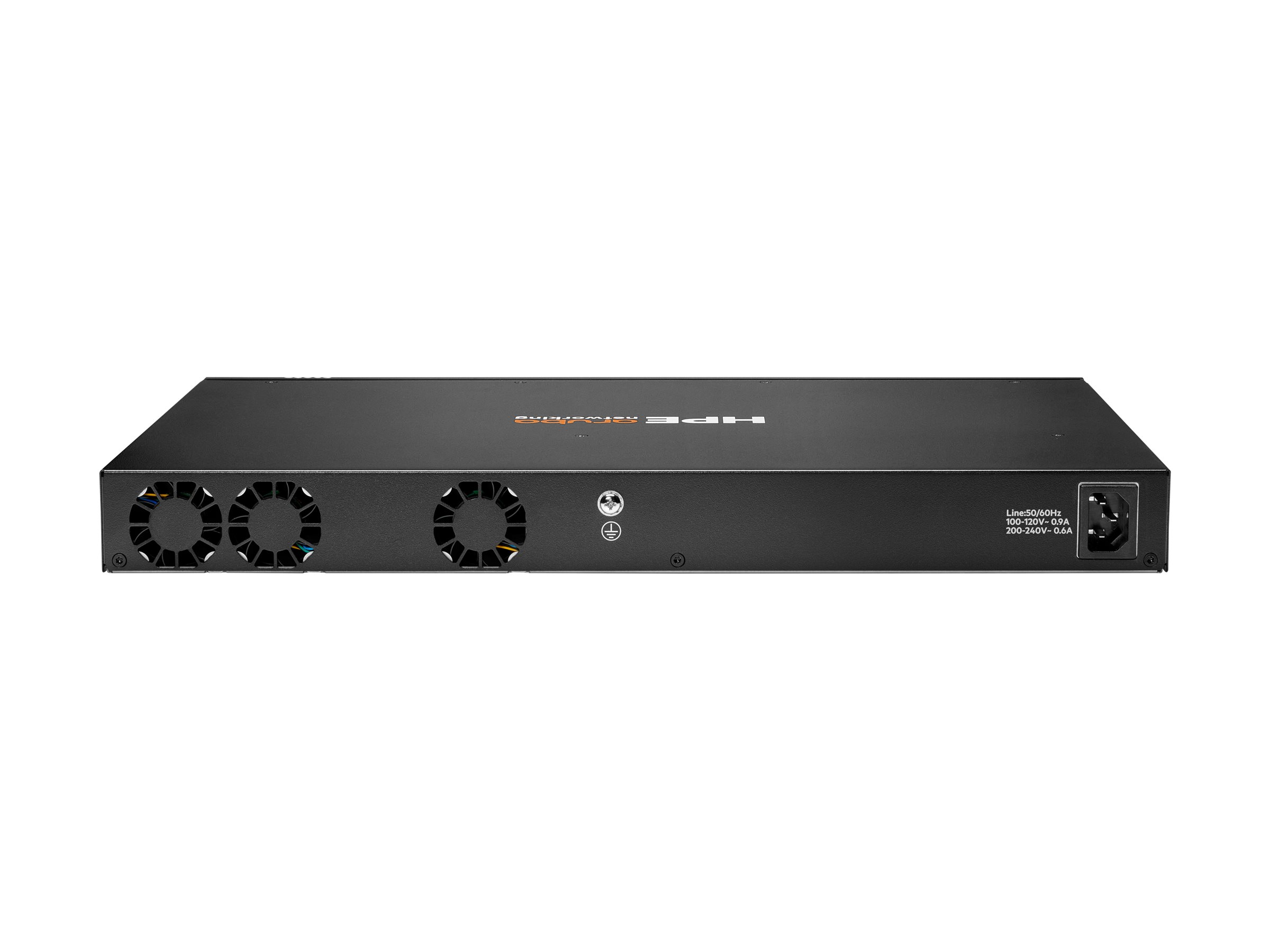

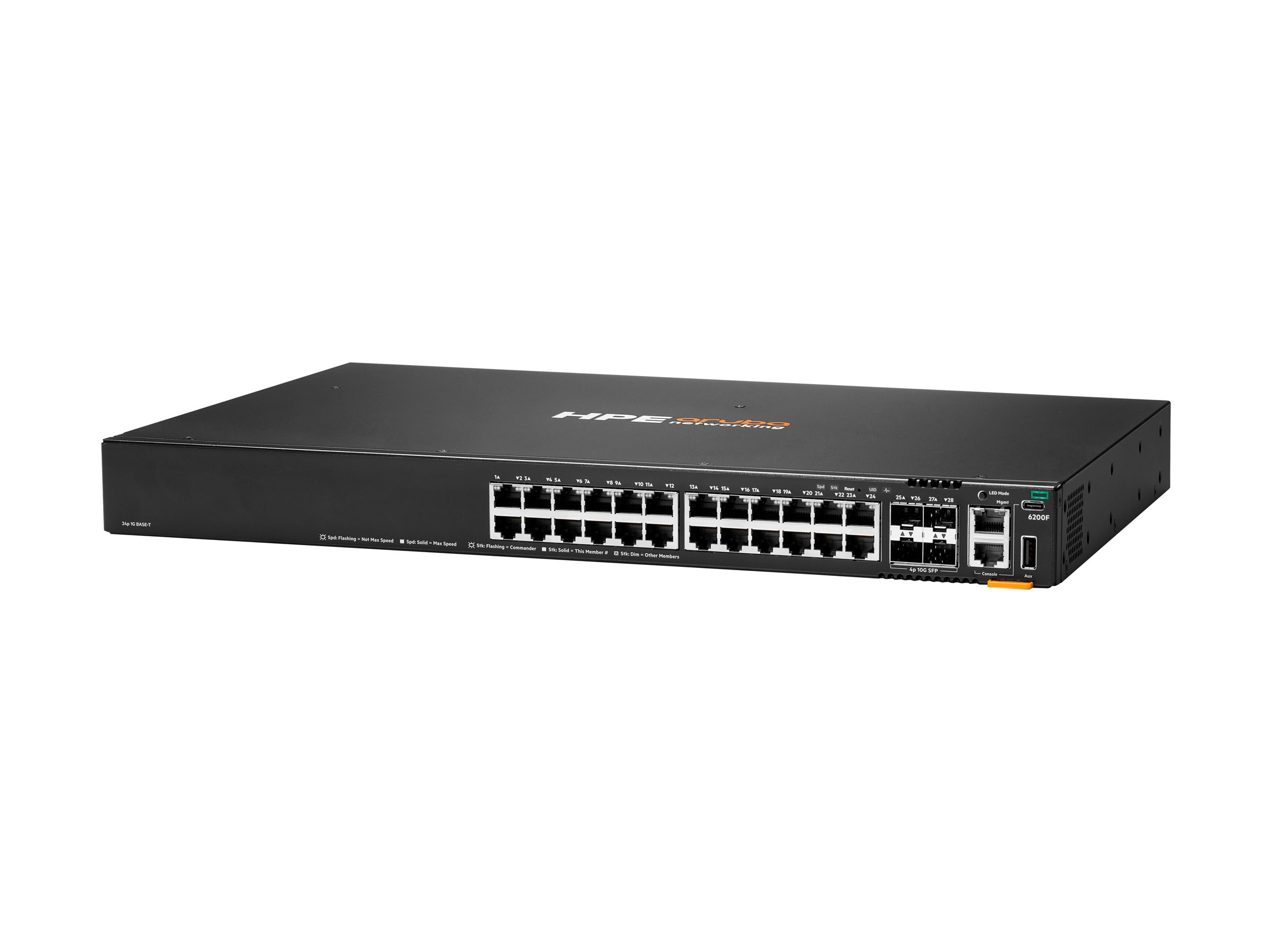

HPE Aruba Networking CX 6200F 24G 4SFP+ Switch Switch 24-porte Gigabit Ethernet
HPE Aruba Networking CX 6200F 24G 4SFP+ Switch - Switch - Max. Stacking Distance 10 km - L3 - Administreret - 24 x 10/100/1000 + 4 x 100/1000/10G SFP+ - front og side til ryg - monterbar på stativ
-
Product no 1001186345
Model JL724B
Brand Hewlett Packard Ente
EAN 0190017634135
Weight 3.77 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | HPE Aruba Networking CX 6200F 24G 4SFP+ Switch - switch - Max. Stacking Distance 10 km - 24 porte - Administreret - monterbar på stativ |
| Enhedstype | Switch - 24 porte - L3 - Administreret - kan stables |
| Pakningstype | Front og side til ryg monterbar på stativ 1U |
| Undertype | Gigabit Ethernet |
| Porte | 24 x 10/100/1000 + 4 x 100/1000/10G SFP+ |
| Præstation | Omkoblingskapacitet: 128 Gbps<br>Kapacitet: 95.2 Mpps<br>Latens (1 Gbps): 2.28 µs<br>Latens (10 Gbps): 1.46 µs<br>Stablende båndbredde: 40 Gbps |
| Kapacitet | Pakkebufferstørrelse: 8 MB<br>IPv4 ACL-indgange (ingress): 5120<br>IPv6 ACL-poster (indgang): 1280<br>MAC ACL-indgange (ingress): 5120<br>IPv4 ACL-indgange (egress): 2048<br>IPv6 ACL-poster (udgang): 512<br>MAC ACL-indgange (egress): 2048<br>IPv4 værtstabelkapacitet: 8192<br>IPv6 værtstabelkapacitet: 8192<br>IPv4 ruter (Unicast): 2048<br>IPv6 ruter (Unicast): 1024<br>IGMP-grupper: 1024<br>MLD-grupper: 1024 |
| MAC adresse table størrelse | 32.768 indtastninger |
| Jumborammesupport | 9220 byte |
| Routingprotokol | RIP-2, IGMPv2, IGMP, OSPFv2, IGMPv3, OSPFv3, MLDv2, MLD |
| Protokol til fjernadministration | RMON, CLI, MIB |
| Egenskaber | VRRP support, UDLD, DWRR, CoS, ToS, BPDU, RPVST+, LLDP, UTM, EQS, Address Resolution Protocol |
| Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.1AX |
| Effekt | AC 100-120/200-240 V (50/60 Hz) |
| Dimensioner (B x D x H) | 44.25 cm x 28.45 cm x 4.37 cm |
| Vægt | 3.77 kg |
| Systemkrav | AOS-CX |
| Producentgaranti | Begrænset livtidsgaranti |
HPE Aruba Networking CX 6200F 24G 4SFP+ Switch
The HPE Aruba Networking CX 6200 Switch Series is a next-generation family of stackable access switches ideal for enterprise branch offices, campuses, and SMB networks. With a cloud-centric design that combines a fully programmable operating system (OS) with the HPE Aruba Networking CX Network Analytics Engine, this switch family extends industry-leading deployment, monitoring, and troubleshooting to the access layer. Prepare your network for future demands with a powerful Gen7 ASIC that delivers an AI and Wi-Fi 7 ready, non-blocking performance. HPE Aruba Networking Virtual Stacking Framework (VSF) allows for stacking of up to 8 switches, providing scale and simplified management. This series includes fixed (CX 6200F) and modular (CX 6200M) switches with built-in high-speed uplinks and up to 1440W of PoE to support Internet of Things (IoT) devices such as security cameras and wireless APs.
Enterprise-class connectivity with support for access control lists (ACLs), robust quality of service (QoS), and common protocols such as static and access OSPF routing
Up to 384 ports of scalability with 8-member HPE Aruba Networking Virtual Stacking Framework (VSF) stacking supported for both 24 and 48-port fixed and modular switches through the CX installer app
Flexible, modular switch models support hot-swappable, redundant power supplies and fans for enhanced resiliency
Real-time insights and actions through a built-in network analytics engine to securely maintain network performance, stability, and security
Dynamic segmentation enhanced with application-based policy to deliver secure access for users and Internet of Things (IoT)
HPE Aruba Networking Switch Multi-Edit Software supports for automation, configuration and verification
AI-ready performance and power
- The HPE Aruba Networking CX 6200 Switch Series provides Layer 2/3 access switching with high performance, security, and ease of use for latency-sensitive, AI resources at the enterprise edge, SMB, and branch office networks.
- A fully distributed architecture with Gen7 ASICs delivers very low latency, increased packet buffering, and efficient power consumption. Switching and routing are wire-speed to meet the demands of bandwidth-intensive workloads.
- HPE Aruba Networking Virtual Switching Framework (VSF) allows you to quickly grow your network using high performance front-plane stacking. Create 8 member stacks using built-in SFP+ ports with flexibility to create stacks that span longer distances using long-range transceivers.
- Deploy wireless access points and Internet of Things (IoT) devices with CX 6200 models that support up to 1440W IEEE 802.3at Class 6 PoE for up to 60W per port.
- Flexible, modular switch models support hot-swappable, redundant power supplies and fans for enhanced resiliency.
Automation and analytics
- The HPE Aruba Networking CX 6200 Switch Series delivers visibility and built-in analytics for real-time monitoring and accelerated troubleshooting. The HPE Aruba Networking CX Network Analytics Engine (NAE) automatically interrogates and analyzes events that can impact network health.
- Advanced telemetry and automation provide the ability to easily identify and troubleshoot network, system, application, and security-related issues easily through the use of Python® agents and REST APIs.
- The time series database (TSDB) stores configuration and operational state data, making it available to quickly resolve network issues.
- HPE Aruba Networking Switch Multi-Edit Software introduces automation that allows for rapid network-wide changes, and helps ensures policy conformance post network updates. Intelligent capabilities include search, edit, validation (including conformance checking), deployment, and audit features.
- The HPE Aruba Networking CX Mobile App simplifies connecting and stacking this switch series with easy one-touch deployment. Import switch information into HPE Aruba Networking Switch Multi-Edit Software for simplified configuration management and to continual conformance validation.
Simplified configuration and management
- The HPE Aruba Networking CX 6200 Switch Series provides flexibility to manage and simplify configurations with HPE Aruba Networking Central, HPE Aruba Networking Switch Multi-Edit Software, easy-to-use GUI, or industry-standard CLI.
- HPE Aruba Networking Switch Multi-Edit Software introduces automation that allows for rapid network-wide changes and verifies policy conformance post network updates.
- Unified management across wired, wireless, and WAN using HPE Aruba Networking Central.
- Reduce manual IT operation tasks around initial deployment or on-going configuration changes to accommodate adds, moves, and changes with colorless ports using local user roles and local MAC authentication (LMA).
- Ready for software-defined networking with REST APIs for fine-grained programmability of network tasks.
Smarter segmentation
- The HPE Aruba Networking CX 6200 Switch Series supports dynamic segmentation that automatically applies and enforces common and consistent user, device, and application-aware policies on HPE Aruba Networking wired and wireless networks.
- Automated device profiling, role-based access control, and Layer 7 firewall features deliver enhanced visibility and performance for a better overall experience for IT and end-users.
- Switch-to-switch tunnels with Virtual Extensible Local-Area Networks (VXLAN) for low-latency and high performance use cases.
- Reduces time-consuming and error-prone task of adds, moves and changes.
Specifications
| TechnicalSpecifications | |
|---|---|
| Ports | 24 x 10/100/1000BASE-T ports 4 x 100M/1/10G SFP+ ports 1 x USB-C console port 1 x USB Type-A host port 1 x OOBM 1 x RJ-45 console port |
| Memory and processor | CPU: Quad-core Arm® Cortex-A72 at 1.8 GHz Memory: 8 GB DDR4 Flash: 16 GB eMMC |
| Latency | 1 Gbps: 2.28 μSec 10 Gbps: 1.46 μSec |
| Throughput | Up to 95.2 Mpps |
| Switching capacity | 128 Gbps |
| PoE capability | Non-PoE model |
| Stacking capabilities | 8-members |
| Management features | Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software |
| Power supply | Fixed power supply |
| Input voltage | 100V–120V/200V–240V |
| Power consumption | 59W at 230 VAC |
| Product dimensions (metric) | 4.39 x 44.2 cm x 32.7 cm |
| Weight | 5.10 kg, max, depending on model |
