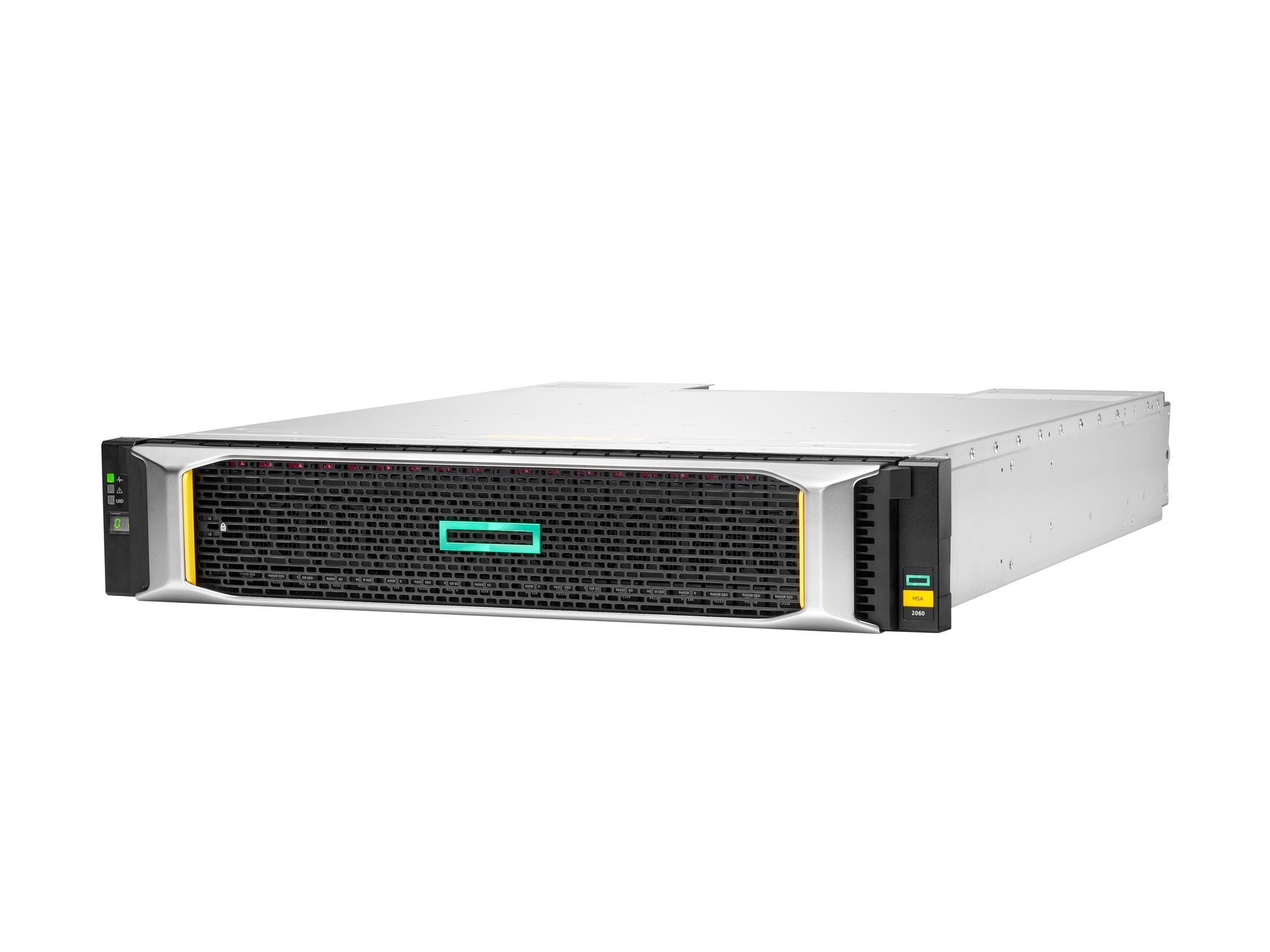

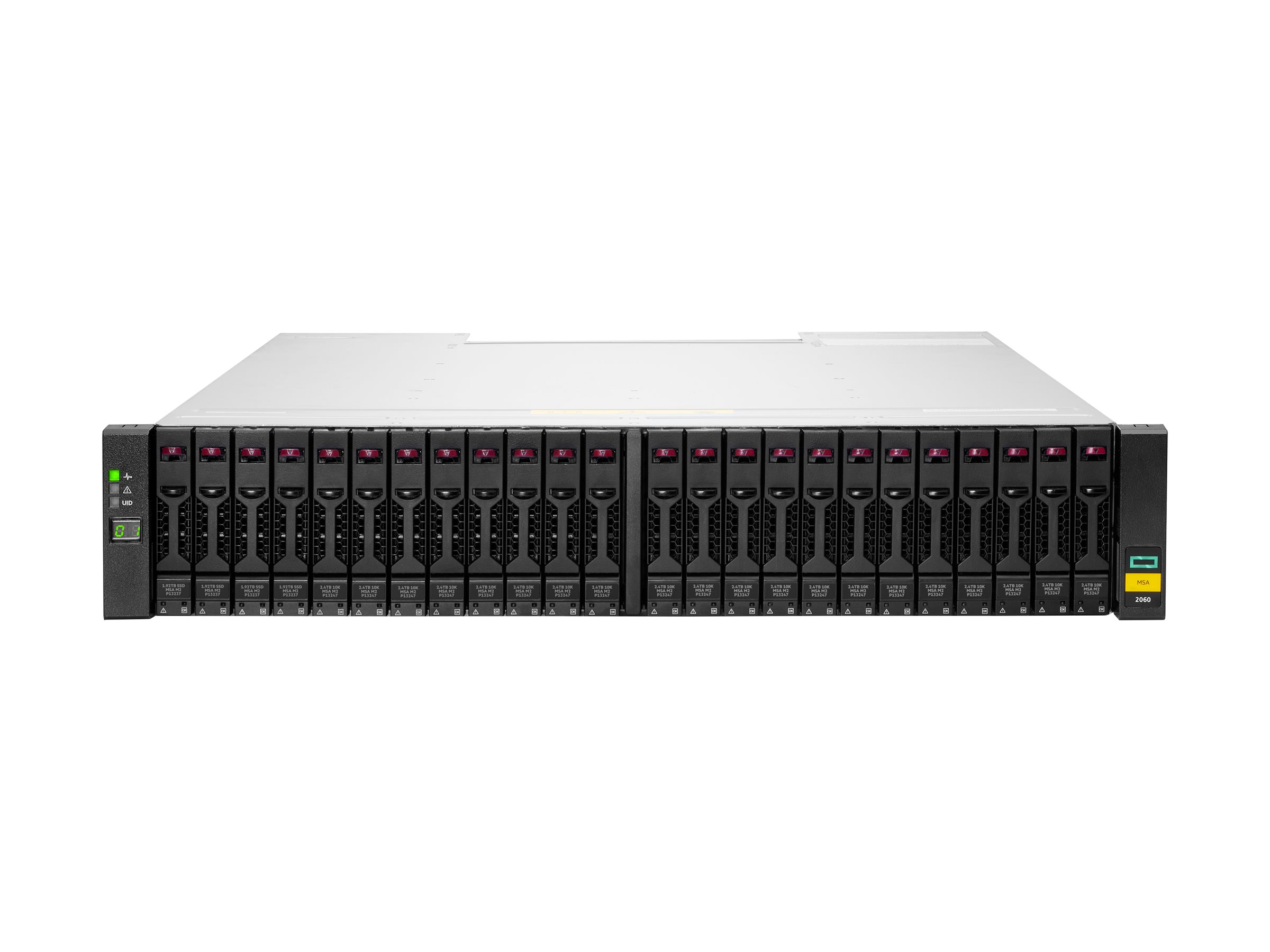

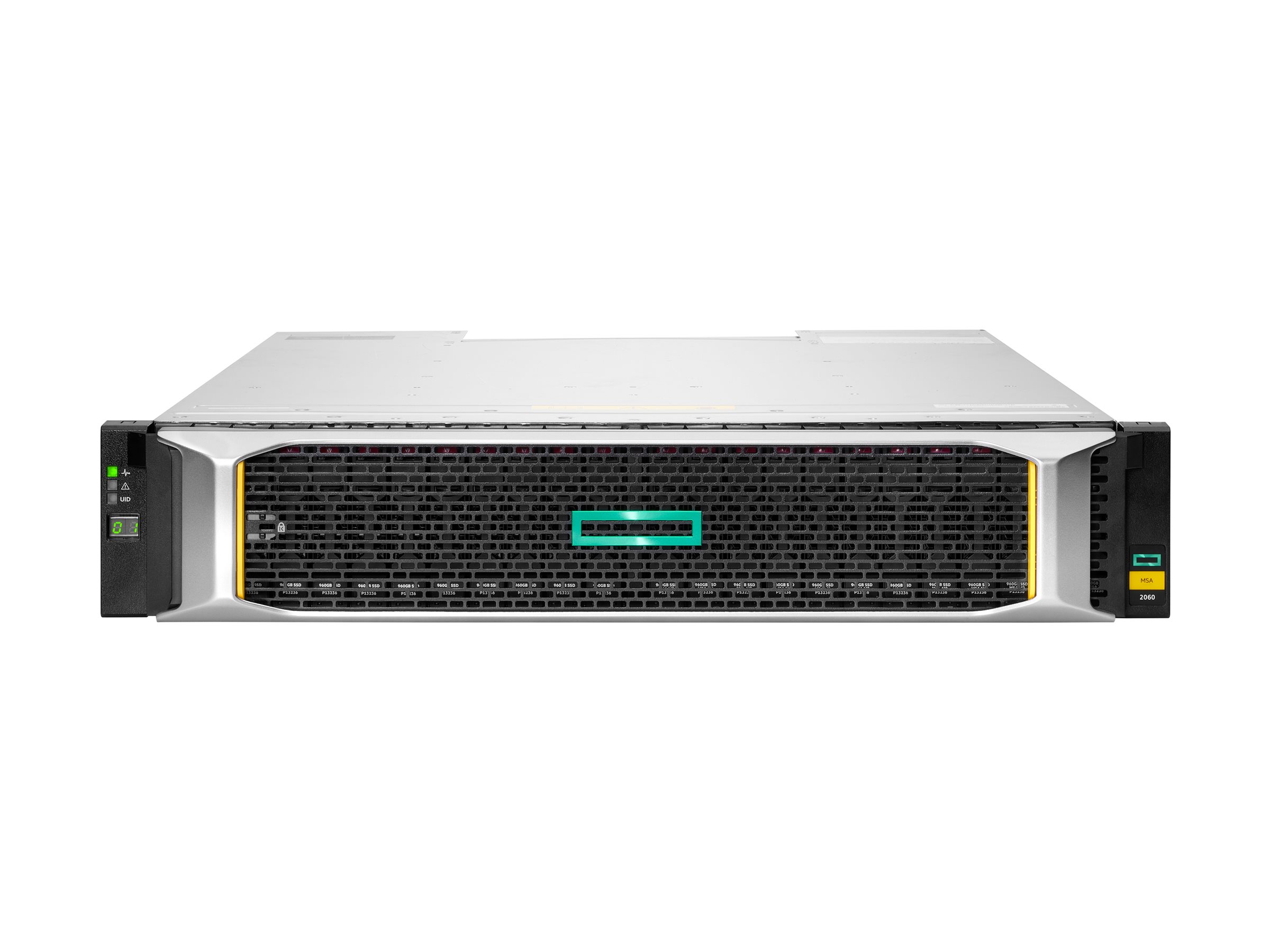

HPE Modular Smart Array 2060 10GbE iSCSI SFF Storage Harddisk-array 0TB 24bays
HPE Modular Smart Array 2060 10GbE iSCSI SFF Storage - 6th Generation - harddisk-array - 0 TB - 24 bays (SAS-3) - iSCSI (25 GbE) (ekstern) - rackversion - 2U
-
Product no 1000773043
Model R0Q76B
Brand Hewlett Packard Ente
EAN 0190017620701
Weight 5 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| General | |
|---|---|
| Device Type | Hard drive array |
| Enclosure Type | Rack-mountable - 2U |
| Chassis | |
| Installed Devices / Modules Qty | |
| Supported Devices / Modules Qty | 24 |
| Supported Drives | SAS-3 |
| Storage | |
| HDD Array External Interface | iSCSI (25 GbE) |
| Max Supported Capacity | 921.6 TB |
| Maximum LUNs | 512 |
| Total Array Capacity | 0 TB |
| Processor | |
| CPU | No CPU |
| Storage Controller | |
| Cache / Buffer Size (Max) | 24 GB |
| Data Transfer Rate | 1.2 GBps |
| Installed Qty | 2 |
| Interface Type | SAS 12Gb/s |
| Max Storage Devices Qty | 240 |
| RAID Level | RAID 0, RAID 1, RAID 3, RAID 5, RAID 6, RAID 10, RAID 50 |
| Type | RAID (SAS-3) |
| Storage Controller (2nd) | |
| Installed Qty | 2 |
| Hard Drive | |
| Type | No HDD |
| Expansion / Connectivity | |
| Expansion Bays | 24 (total) / 24 (free) - 2.5" SFF |
| Interfaces | 8 x iSCSI 25Gb/s | 2 x mini-USB 2.0 (management) | 2 x Ethernet 1000Base-T (management) - RJ-45 |
| System Requirements | |
| OS Required | HP-UX, SuSe Linux, Apple MacOS X, Microsoft Windows, Red Hat Enterprise Linux, HP OpenVMS, Microsoft Windows Server 2012, VMware ESXi 5.x, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2012 R2 with Hyper-V, VMware ESXi 6.x |
| Miscellaneous | |
| Features | SNMP support, SMTP support |
| Included Accessories | Rack mounting kit |
| Environmental Standards | |
| ENERGY STAR Certified | Yes |
| Power | |
| Max Supported Qty | 2 |
| Power Device | 2 x internal power supply - hot-plug |
| Power Provided | 764 Watt |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Dimensions & Weight | |
| Depth | 50.8 cm |
| Height | 8.9 cm |
| Weight | 5 kg |
| Width | 44.5 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts - 3 years |
| Environmental Parameters | |
| Sound Emission | 74 dBA |
