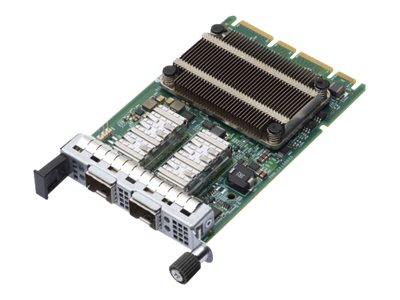

Lenovo ThinkSystem Broadcom 57414 Netværksadapter 10 Gigabit Ethernet 25 Gigabit Ethernet

Lenovo ThinkSystem Broadcom 57414 - Netværksadapter - OCP - 10Gb Ethernet / 25Gb Ethernet SFP28 x 2 - for ThinkAgile VX3330 Appliance; VX3530-G Appliance; VX7330-N Appliance; VX75XX Certified Node

  • Product no 995012603

    Model 4XC7A08237

    Brand
    Go to brand's website

    EAN 0889488497300

    Weight 0.28 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
General
Device Type Network adapter
Interface (Bus) Type Open Compute Project mezzanine (OCP)
Networking
Compliant Standards IEEE 802.3z, IEEE 802.1Q, IEEE 802.3x, IEEE 802.1ad, IEEE 802.3az
Connectivity Technology Wired
Data Link Protocol 10 Gigabit Ethernet, 25 Gigabit Ethernet
Data Transfer Rate 25 Gbps
Features Wake on LAN (WOL), Jumbo Frames support (up to 9600 bytes)
Network / Transport Protocol TCP/IP
Ports 10Gb Ethernet / 25Gb Ethernet SFP28 x 2
Processor / Memory
Processor 1 x Broadcom BCM57414
Expansion / Connectivity
Interfaces 2 x 10Gb Ethernet/25Gb Ethernet - SFP28
Miscellaneous
Compliant Standards BSMI CNS 13438 Class B, ICES-003, RRL, CSA 22.2 No. 950, ICES-003 Class B, EN55024 Class B, UL 60950-1, EN 60950-1, FCC CFR47 Part 15 B, cTUVus, UL 94, KN22, KN24, EN 55022:2010+AC:2011 Class B, UL 1977, UL 796, CNS 14336 Class B
Dimensions & Weight
Depth 11.5 cm
Height 7.6 cm
Manufacturer Warranty
Service & Support Limited warranty - 1 year
Environmental Parameters
Humidity Range Operating 5 - 95% (non-condensing)
Max Operating Temperature 55 °C
Min Operating Temperature 0 °C
Compatibility Information
Designed For Lenovo ThinkAgile VX2330 Appliance 7Z62 | Lenovo ThinkAgile VX3330 Appliance 7Z62 | Lenovo ThinkAgile VX3331 7Z62 | Lenovo ThinkAgile VX3530-G Appliance 7Z63 | Lenovo ThinkAgile VX3575-G Integrated System 7D43 | Lenovo ThinkAgile VX5530 Appliance 7Z6
