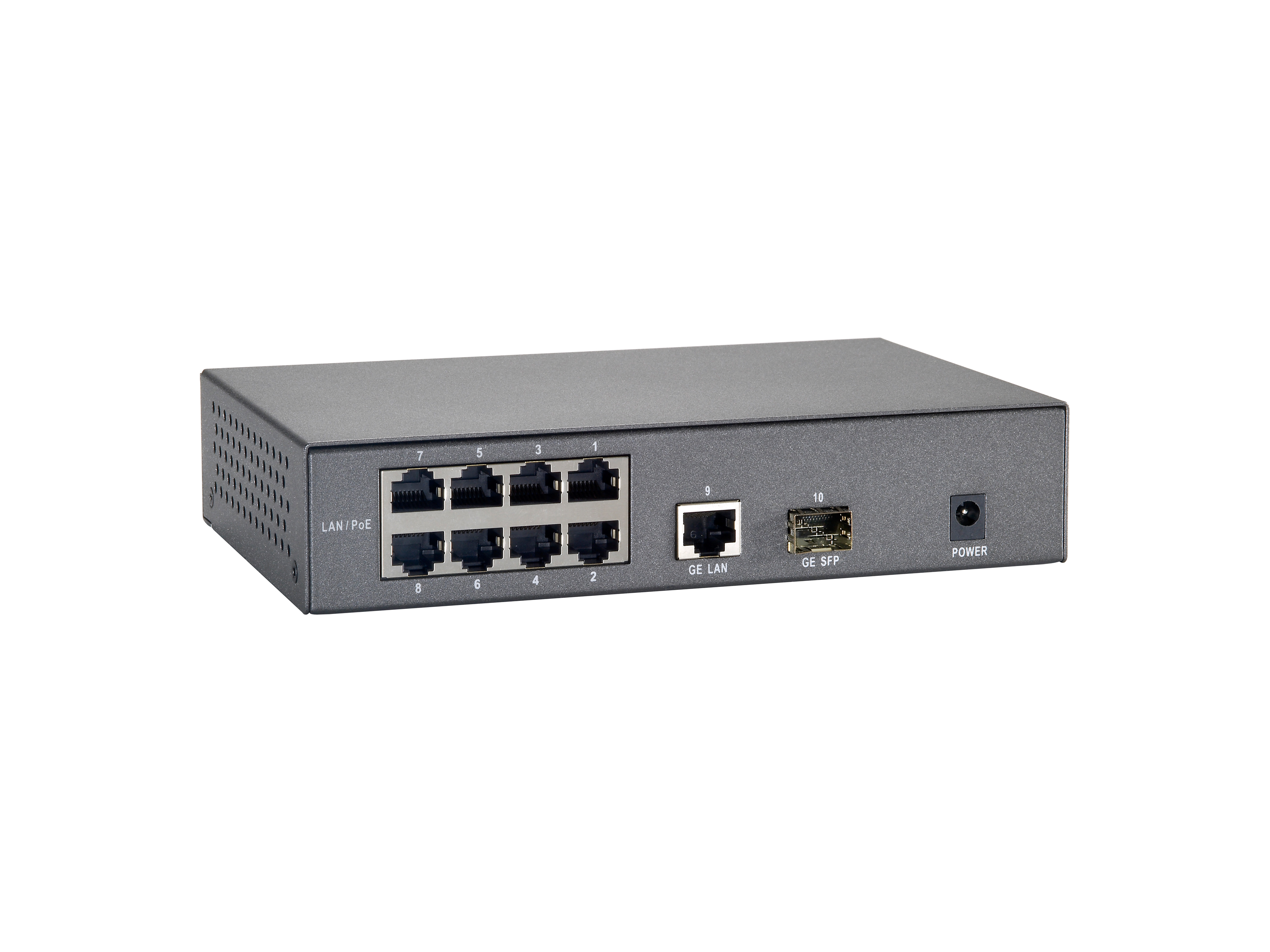

LevelOne FGP-1000W90 Switch 10-porte 10/100 PoE
LevelOne FGP-1000W90 - Switch - 8 x 10/100 (PoE) + 1 x 10/100/1000 + 1 x 100/1000 SFP - desktop, væg-monterbar - PoE (82 W)
-
Product no 992506387
Model FGP-1000W90
Brand LevelOne
EAN 4015867199985
Weight 1.5 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | LevelOne FGP-1000W90 - switch - 10 porte |
| Enhedstype | Switch - 10 porte |
| Undertype | Fast Ethernet |
| Porte | 8 x 10/100 (PoE) + 1 x 10/100/1000 + 1 x 100/1000 SFP |
| Power Over Ethernet (PoE) | PoE |
| PoE-budget | 82 W |
| Præstation | Pakkevideresendelseshastighed: 1.488.000 pakker pr. sekund<br>Bagplanshastighed: 5,6 Gbps |
| MAC adresse table størrelse | 4K indtastningshukommelse |
| Egenskaber | Datatransport, auto-negotiation, auto-uplink (auto MDI/MDI-X), gem og send, halv dupleksmodus, fuld dupleksmodus, PoE-overstrømsbeskyttelse, PoE-kredsløbssorteringsbeskyttelse |
| Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x |
| Dimensioner (B x D x H) | 18.8 cm x 11.8 cm x 3.8 cm |
| Vægt | 1.2 kg |
| General | |
|---|---|
| Built-in Devices | LED panel |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x |
| Device Type | Switch - 10 ports |
| Enclosure Type | Desktop, wall-mountable |
| Features | Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, half duplex mode, full duplex mode, PoE overcurrent protection, PoE circuit sorting protection |
| MAC Address Table Size | 4K entries |
| Performance | Packet forwarding rate: 1488000 packets per second | Backplane speed: 5.6 Gbps |
| PoE Budget | 82 W |
| Ports | 8 x 10/100 (PoE) + 1 x 10/100/1000 + 1 x 100/1000 SFP |
| Power Over Ethernet (PoE) | PoE |
| Status Indicators | Power, active, PoE, link/speed |
| Subtype | Fast Ethernet |
| Expansion / Connectivity | |
| Interfaces | 8 x 100Base-TX RJ-45 PoE | 1 x 1000Base-T RJ-45 | 1 x 1000Base-X SFP |
| Power | |
| Power Consumption Operational | 90 Watt |
| Power Device | External power adapter |
| Miscellaneous | |
| Compliant Standards | FCC, RoHS |
| Dimensions & Weight | |
| Depth | 11.8 cm |
| Height | 3.8 cm |
| Weight | 1.2 kg |
| Width | 18.8 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Humidity Range Storage | 10 - 90% (non-condensing) |
| Max Operating Temperature | 45 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
