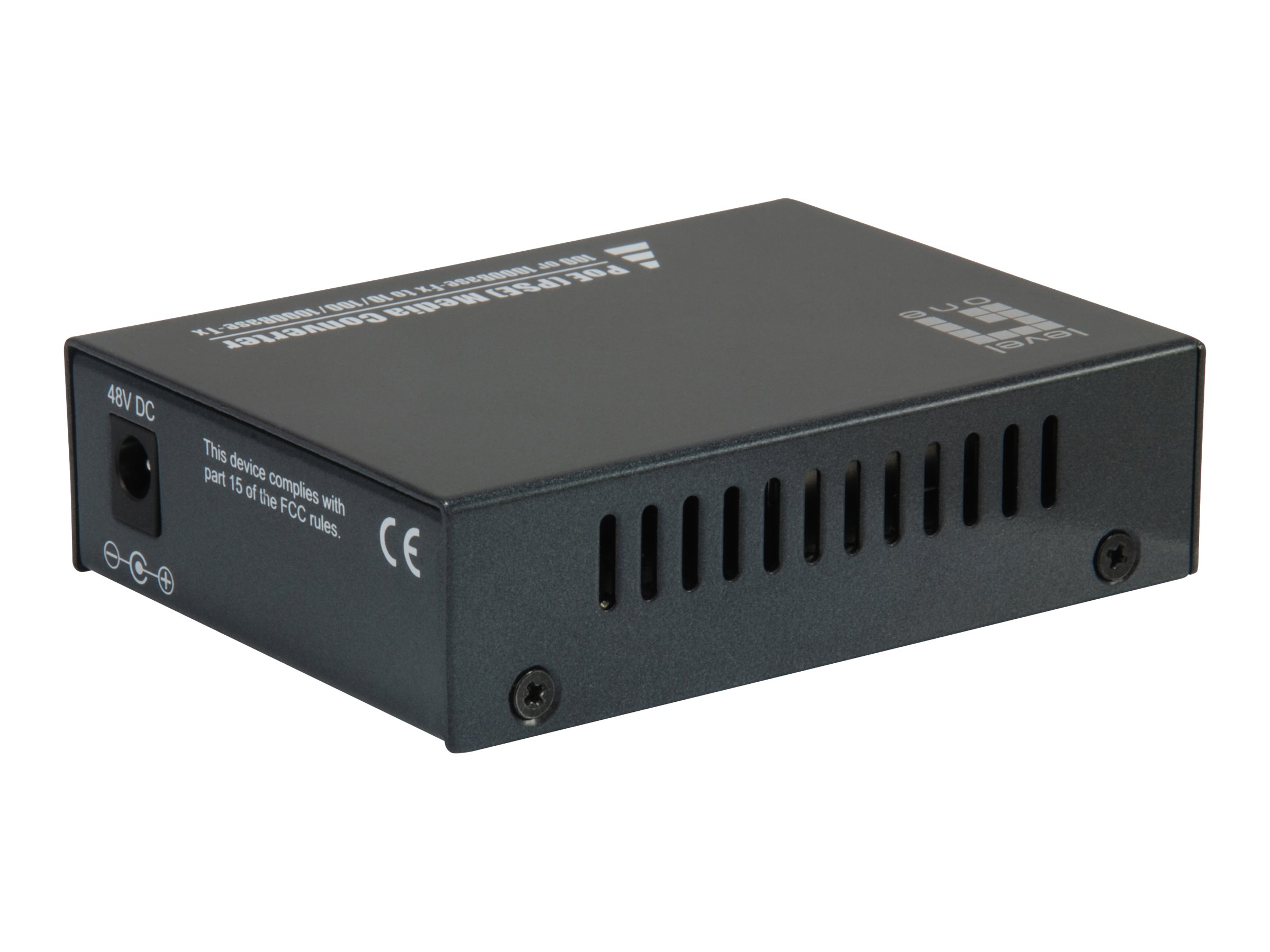

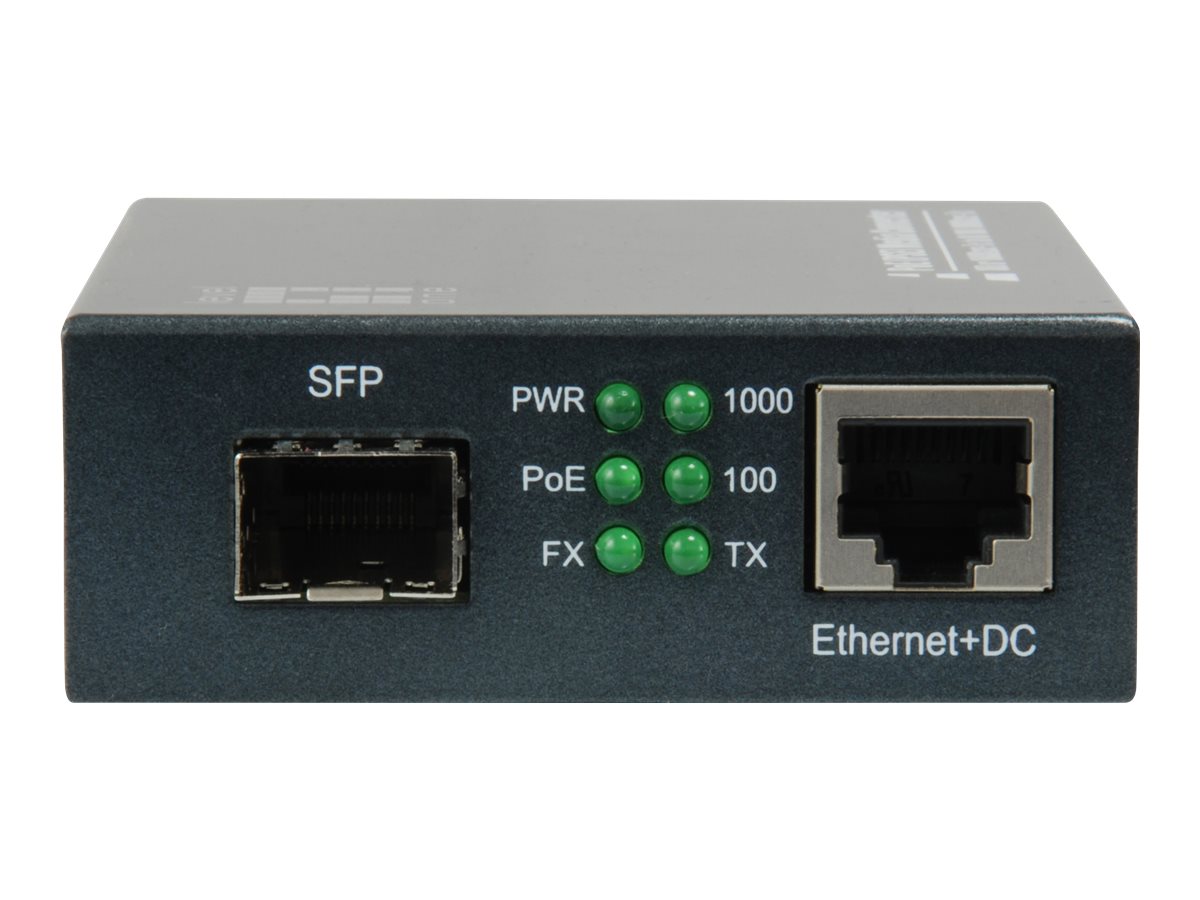

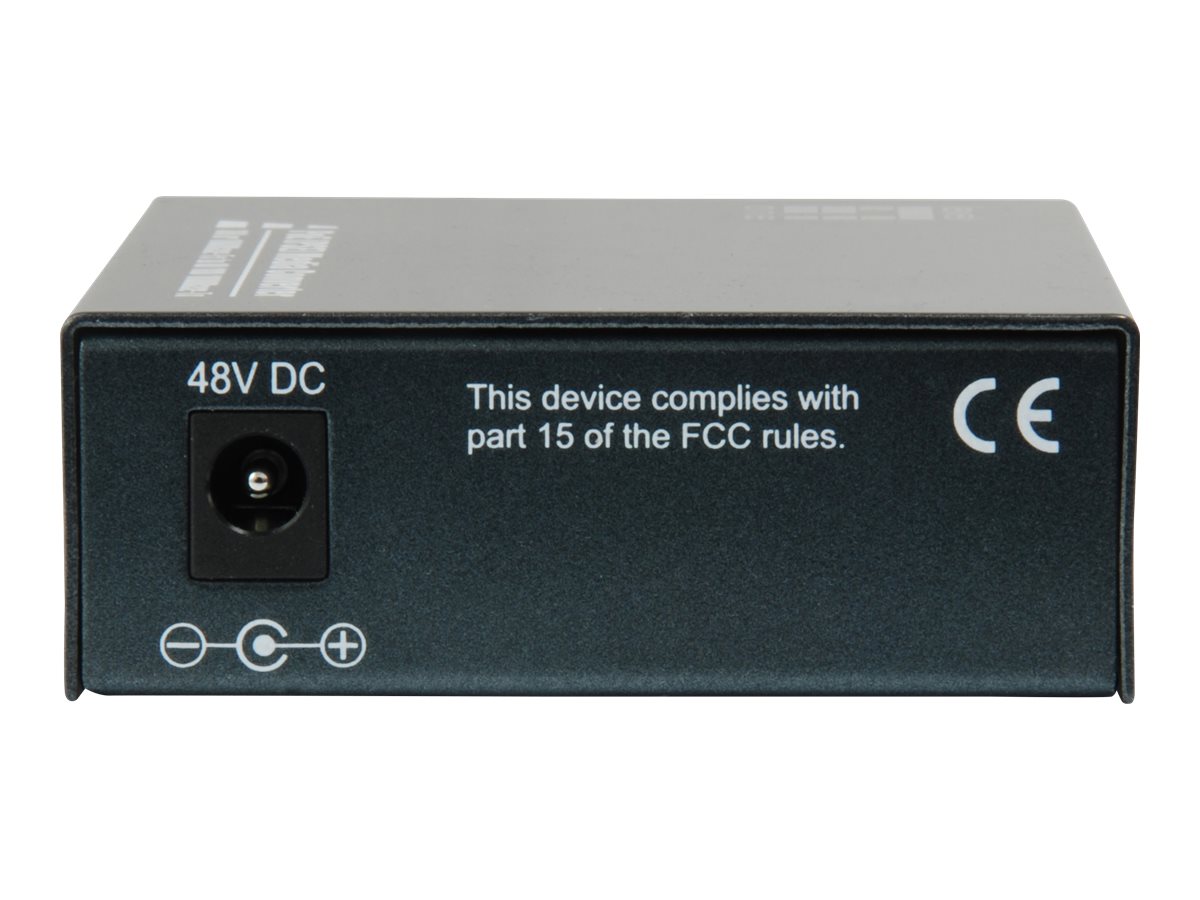

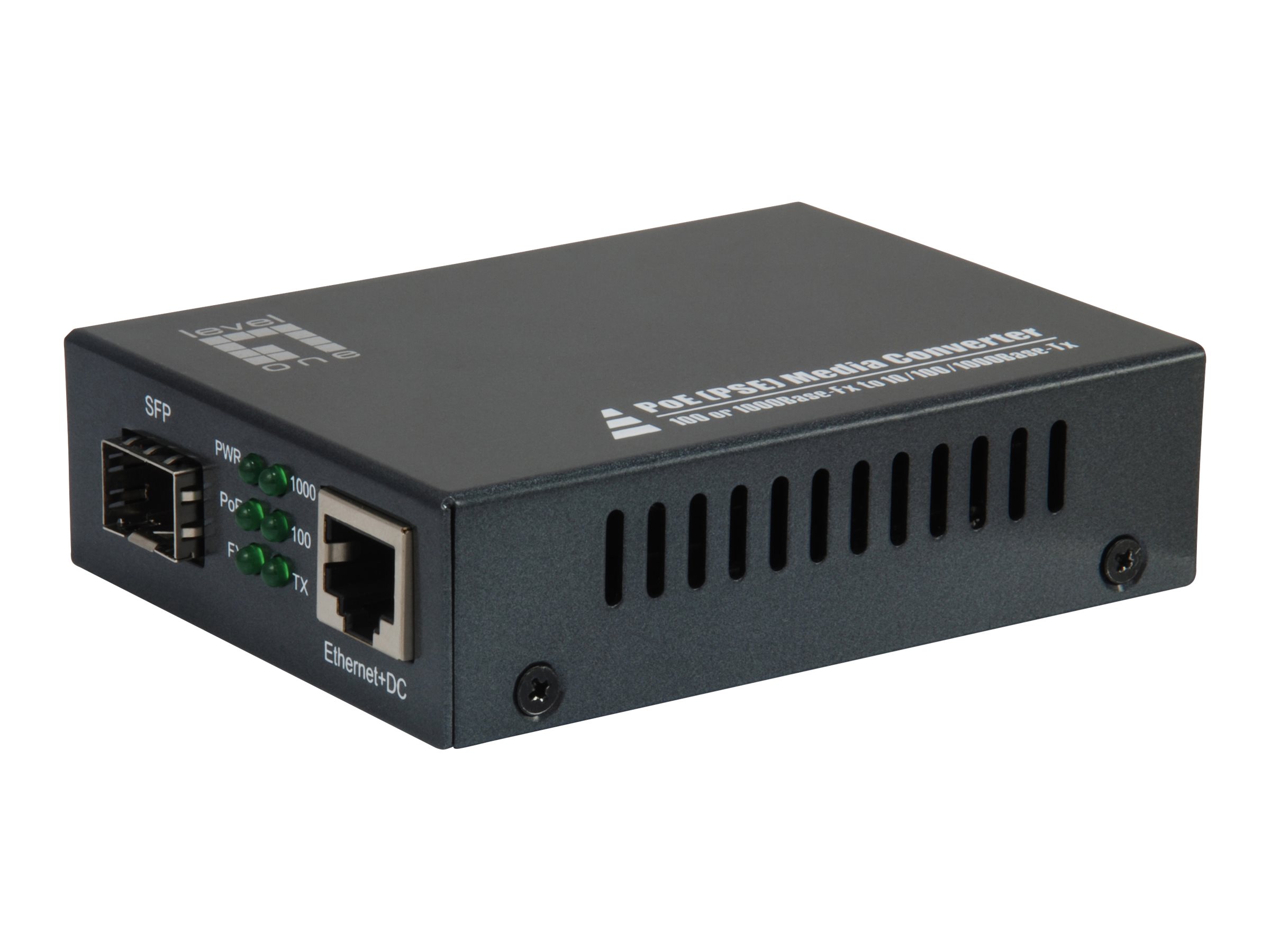

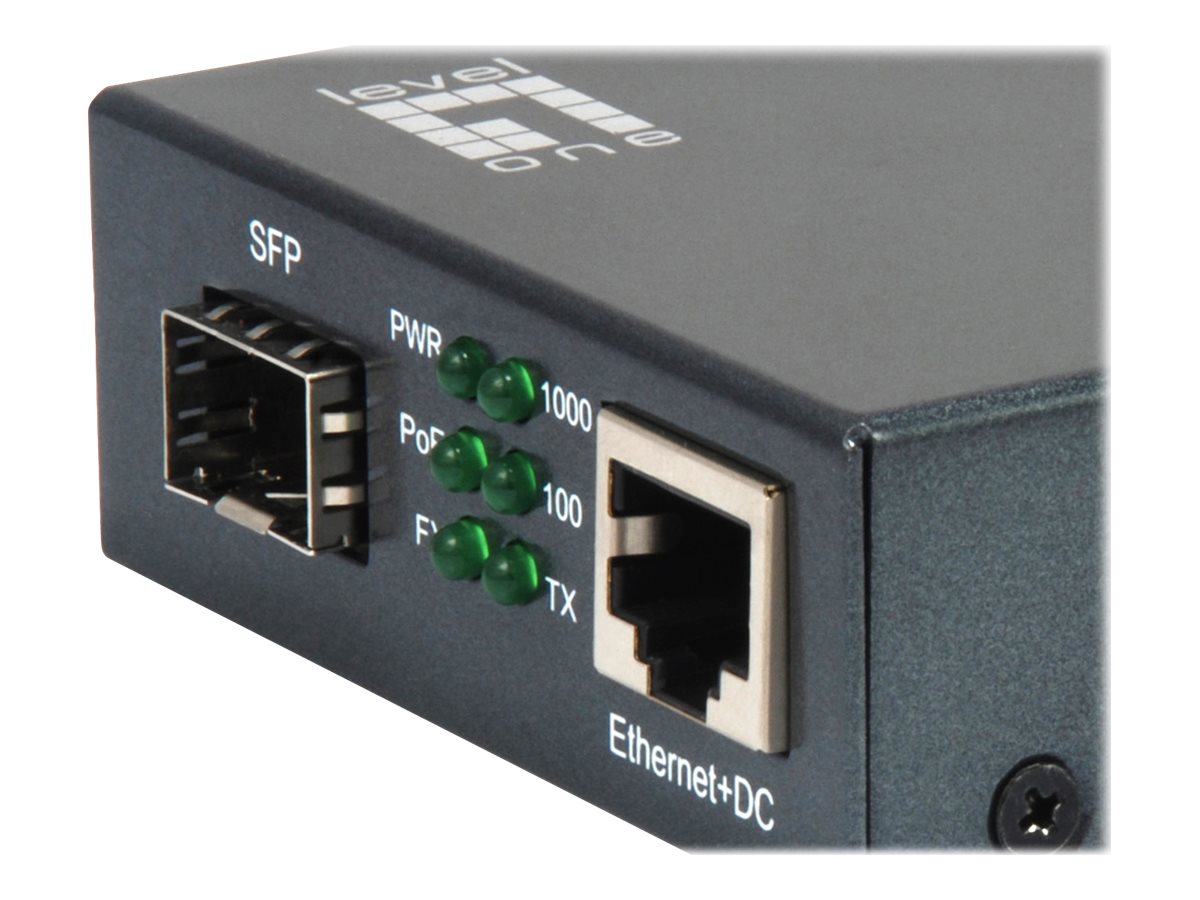

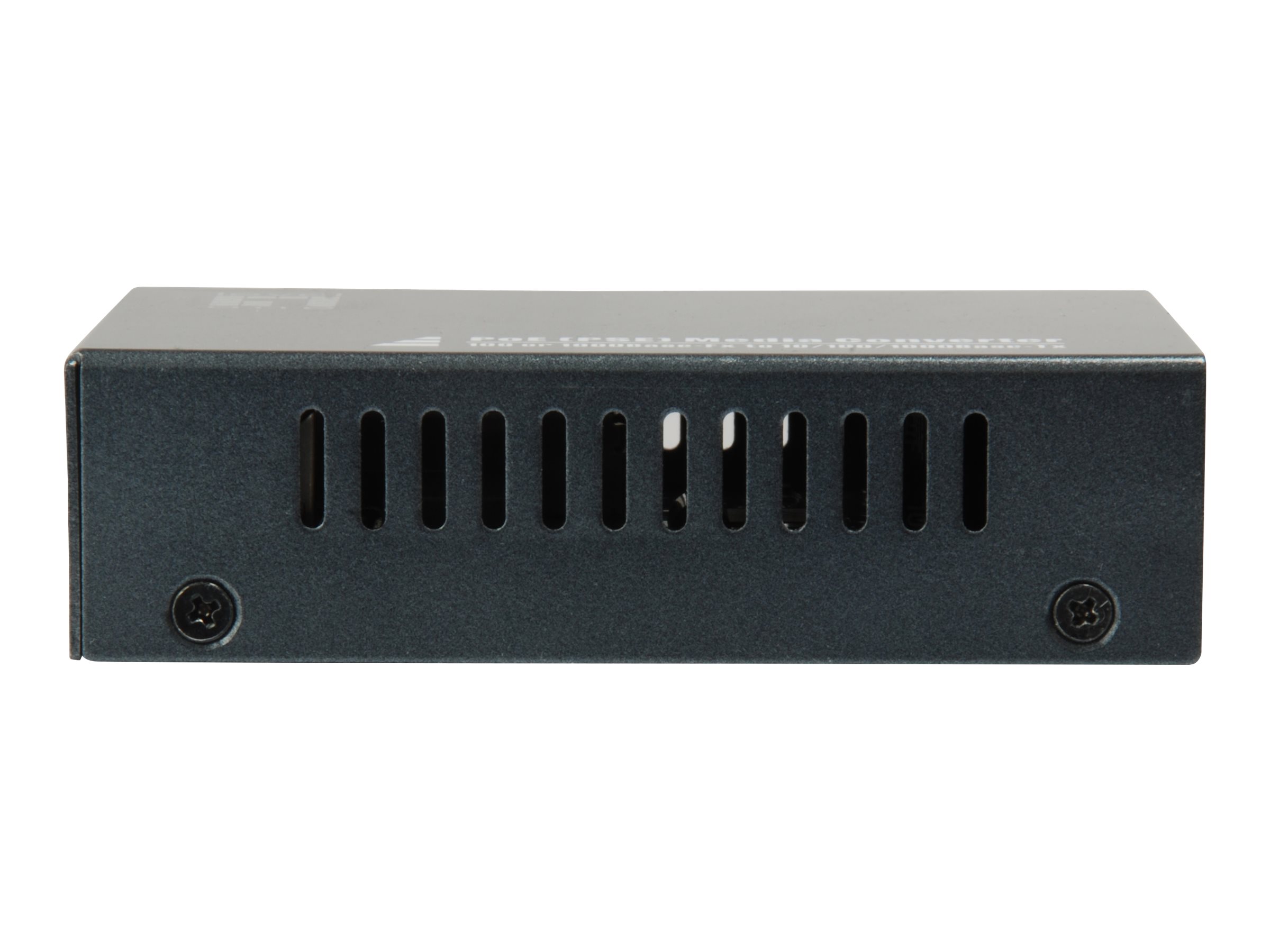

LevelOne GVT-2012 Fibermedieomformer Ethernet Fast Ethernet Gigabit Ethernet
LevelOne GVT-2012 - Fibermedieomformer - 1GbE - 10Base-T, 1000Base-SX, 100Base-TX, 1000Base-T - RJ-45 / SFP (mini-GBIC)
-
Product no 993775379
Model GVT-2012
Brand LevelOne
EAN 4015867207345
Weight 0.2 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | LevelOne GVT-2012 - fibermedieomformer - 10Mb LAN, 100Mb LAN, 1GbE |
| Enhedstype | Fibermedieomformer - RJ-45 / SFP (mini-GBIC) |
| Model | Ekstern |
| Kabeltype | 10Base-T, 1000Base-SX, 100Base-TX, 1000Base-T |
| Dataoverførselshastighed | 1 Gbps |
| Dataforbindelsesprotokol | 10Mb LAN, 100Mb LAN, 1GbE |
| Power Over Ethernet (PoE) | PoE |
| Dimensioner (B x D x H) | 9.4 cm x 7 cm x 2.6 cm |
| Vægt | 200 g |
| General | |
|---|---|
| Device Type | Fiber media converter |
| Form Factor | External |
| Networking | |
| Cabling Type | 10Base-T, 1000Base-SX, 100Base-TX, 1000Base-T |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x |
| Connectivity Technology | Wired |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, GigE |
| Data Transfer Rate | 1 Gbps |
| Features | Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, half duplex mode, full duplex mode, Link Fault Pass Through function (LFP), wall mountable, Jumbo Frames support, built-in DIP switch |
| Status Indicators | Power, link/activity |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 female - 30 W | 1 x Ethernet 1000Base-SX - SFP |
| Miscellaneous | |
| Compliant Standards | RoHS |
| Power | |
| Power Device | External power adapter |
| Power Over Ethernet (PoE) | PoE |
| Dimensions & Weight | |
| Depth | 7 cm |
| Height | 2.6 cm |
| Weight | 200 g |
| Width | 9.4 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | -10 °C |
