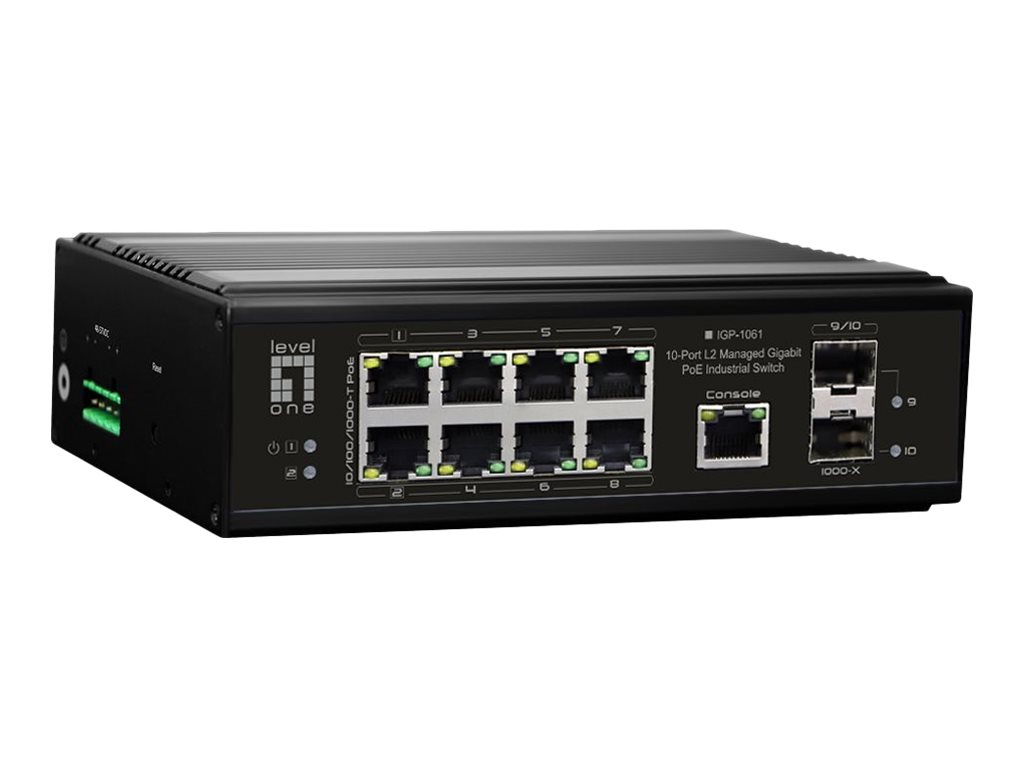

LevelOne IGP-1061 Switch 10-porte Gigabit PoE++
LevelOne IGP-1061 - Switch - -40 °C til 75 °C - Administreret - 2 x 10/100/1000 (PoE++) + 6 x 10/100/1000 (PoE+) + 2 x Gigabit SFP - desktop, DIN monterbar på skinne, væg-monterbar - PoE++ (360 W) - DC power
-
Product no 1000407278
Model IGP-1061
Brand LevelOne
EAN 4015867227886
Weight 0.5 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | LevelOne IGP-1061 - switch - -40 °C til 75 °C - 10 porte - Administreret |
| Enhedstype | Switch - 10 porte - Administreret |
| Undertype | Gigabit Ethernet |
| Porte | 2 x 10/100/1000 (PoE++) + 6 x 10/100/1000 (PoE+) + 2 x Gigabit SFP |
| Power Over Ethernet (PoE) | PoE++ |
| PoE-budget | 360 W |
| Præstation | Bagplanshastighed: 20 Gbps |
| MAC adresse table størrelse | 8K indtastningshukommelse |
| Jumborammesupport | 10KB |
| Protokol til fjernadministration | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTPS, SSH, SMTP |
| Egenskaber | Auto-uplink (auto MDI/MDI-X), halv dupleksmodus, fuld dupleksmodus, blæserløs, metalkabinet, SNMP-support, ERPS, Protokol-baseret VLANs support, 6 KV strømstødsbeskyttelse, DMS, MAC based VLAN, Rapid Reconfiguration of Spanning Tree (RSTP), 8KV ESD Protector (kontaktafladning), 15KV ESD Protector (lufthulsafladning) |
| Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3bt |
| Effekt | DC 48 - 57 V |
| Dimensioner (B x D x H) | 16.5 cm x 11.5 cm x 5 cm |
| Vægt | 500 g |
| Farve | Sort |
| General | |
|---|---|
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3bt |
| Device Type | Switch - 10 ports - managed |
| Enclosure Type | Desktop, DIN rail mountable, wall-mountable |
| Encryption Algorithm | TLS 1.0, SSL 3.0, SSL 2.0 |
| Features | Auto-uplink (auto MDI/MDI-X), half duplex mode, full duplex mode, fanless, metal housing, SNMP support, Ethernet Ring Protection Switching (ERPS), Protocol-based VLANs support, 6KV Surge protection, Device Management System (DMS), MAC based VLAN, Rap |
| Flash Memory | 128 MB |
| Jumbo Frame Support | 10KB |
| MAC Address Table Size | 8K entries |
| Performance | Backplane speed: 20 Gbps |
| PoE Budget | 360 W |
| Ports | 2 x 10/100/1000 (PoE++) + 6 x 10/100/1000 (PoE+) + 2 x Gigabit SFP |
| Power Over Ethernet (PoE) | PoE++ |
| Processor | RTL8380M |
| RAM | 1 GB |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTPS, SSH, SMTP |
| Status Indicators | Power, link/activity |
| Subtype | Gigabit Ethernet |
| Expansion / Connectivity | |
| Interfaces | 2 x 1000Base-T RJ-45 PoE++ - 90 W | 2 x Gigabit LAN SFP | 6 x 1000Base-T RJ-25 PoE+ - 30 W |
| Power | |
| Voltage Required | DC 48 - 57 V |
| Miscellaneous | |
| Color | Black |
| Compliant Standards | EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, FCC, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, EMI, IP30 |
| Included Accessories | DIN-rail mounting kit, power terminal block |
| MTBF | 338,634 hours |
| Dimensions & Weight | |
| Depth | 11.5 cm |
| Height | 5 cm |
| Weight | 500 g |
| Width | 16.5 cm |
| Environmental Parameters | |
| Humidity Range Operating | 95% |
| Max Operating Temperature | 75 °C |
| Max Storage Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Min Storage Temperature | -40 °C |
