MikroTik Cloud Core Router CCR2004-16G-2S PC Router 16-port switch Kabling

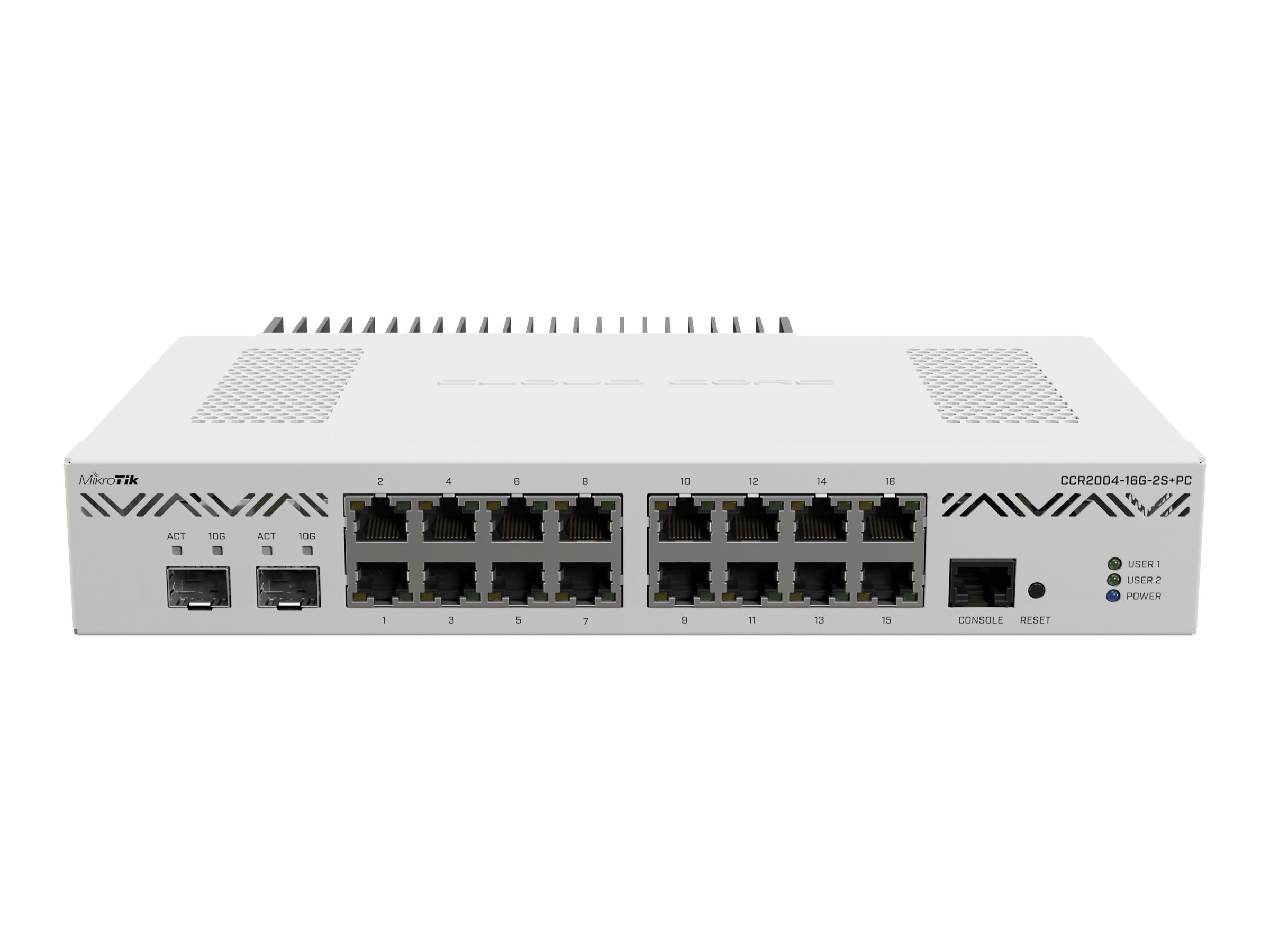

MikroTik Cloud Core Router CCR2004-16G-2S+PC - Router 16-port switch - 10GbE - monterbar på stativ
-
Product no 1000542420
Model CCR2004-16G-2S+PC
Brand MikroTik
EAN 4752224007810
Weight 1.51 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | MikroTik Cloud Core Router CCR2004-16G-2S+PC - router - monterbar på stativ |
| Enhedstype | Router - 16-port switch (integreret) |
| Pakningstype | Monterbar på stativ |
| Dataforbindelsesprotokol | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet |
| Egenskaber | Komplet duplex ydeevne, nulstillingsknap, blæserløs, brotilstand, spændingsovervågning, PCB-temperaturmåler, Quad-core CPU, CPU-temperaturovervåger, Marvell 88E6191X switch chip |
| Effekt | DC 48 V 0.95 A |
| Dimensioner (B x D x H) | 27.2 cm x 19.5 cm x 4.4 cm |
| General | |
|---|---|
| Compliant Standards | IC, FCC, RoHS, IP20, EAC |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet |
| Device Type | Router - 16-port switch (integrated) |
| Enclosure Type | Rack-mountable |
| Features | Full duplex capability, reset button, fanless, bridge mode, voltage monitoring, PCB temperature monitor, Quad-core CPU, CPU temperature monitor, Marvell 88E6191X switch chip |
| Flash Memory | 128 MB |
| Processor | 1 x Annapurna Labs AL32400 1.2 GHz |
| RAM | 4 GB DDR4 SDRAM |
| Status Indicators | Power, user 1, user 2 |
| Expansion / Connectivity | |
| Interfaces | 16 x 10Base-T/100Base-TX/1000Base-T - RJ-45 | 2 x 10Gb Ethernet - SFP+ | Console: 1 x RJ-45 |
| Power | |
| Electric Current Required | 0.95 A |
| Power Device | External power adapter |
| Voltage Required | DC 48 V |
| Miscellaneous | |
| Included Accessories | 2 rack mount brackets, fastening set |
| MTBF | 200,000 hours |
| Rack Mounting Kit | Included |
| Software / System Requirements | |
| OS Provided | MikroTik RouterOS v7 |
| Dimensions & Weight | |
| Depth | 19.5 cm |
| Height | 4.4 cm |
| Width | 27.2 cm |
| Environmental Parameters | |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | -20 °C |
