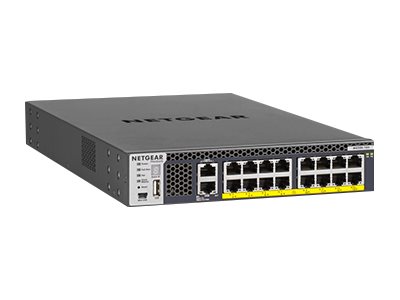

NETGEAR M4300-16X Switch 16-porte 10 Gigabit PoE+
NETGEAR M4300-16X - Switch - L3 - Administreret - 16 x 100/1000/2.5G/5G/10GBase-T (PoE+) - monterbar på stativ - PoE+ (500 W)
-
Product no 995291023
Model XSM4316PB-100NES
Brand NETGEAR
EAN 0606449140989
Weight 5.1 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | NETGEAR M4300-16X - switch - 16 porte - Administreret - monterbar på stativ |
| Enhedstype | Switch - 16 porte - L3 - Administreret - kan stables |
| Pakningstype | Monterbar på stativ 1U |
| Undertype | 10 Gigabit Ethernet |
| Porte | 16 x 100/1000/2.5G/5G/10GBase-T (PoE+) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE-budget | 500 W |
| Præstation | Skift af stofbåndbredde: 480 Gbps<br>Kapacitet: 238 Mpps |
| Kapacitet | Pakkebufferstørrelse: 16 MB |
| MAC adresse table størrelse | 16K indtastningshukommelse |
| Jumborammesupport | 9KB |
| Routingprotokol | RIP-2, IGMP, VRRP, OSPFv2, PIM-SM, statisk IP routing, PIM-DM, OSPFv3, PIM-SSM, ECMP, police-baseret routing (PBR), MLD, MSTP, RSTP |
| Protokol til fjernadministration | SNMP, RMON, Telnet, SNMP 3, HTTP, HTTPS, SSH-2, CLI, SCP, SFTP, DHCP, IPv4, IPv6, RSTP, TACACS+, RADIUS |
| Egenskaber | Understøttet af BOOTP, understøttet af ARP, auto-uplink (auto MDI/MDI-X), DoS attack beskyttelse, DiffServ understøttet, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, SNTP-understøttet, NSF, sFlow, PVST+, UDLD, LLDP support, DHCP videresendelse, LACP, RSPAN, PVRST, MIB, dobbelt firmware-billeder, CoS, PTP, STRG, AAA, UDP, PIM |
| Overensstemmelsesstandarder | IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX |
| Effekt | AC 120/230 V |
| Dimensioner (B x D x H) | 21.2 cm x 34.5 cm x 4.4 cm |
| Vægt | 3.22 kg |
| Lokalisering | USA, Europa |
| Producentgaranti | NETGEAR livstids garanti |
| General | |
|---|---|
| Authentication Method | RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Capacity | Packet buffer size: 16 MB |
| Compliant Standards | IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX |
| Device Type | Switch - 16 ports - L3 - managed - stackable |
| Enclosure Type | Rack-mountable 1U |
| Encryption Algorithm | SHA, MD5, SSL 3.0, 2048-bit RSA, 256-bit SHA-2, 512-bit SHA-2, TLS 2.0 |
| Features | BOOTP support, ARP support, auto-uplink (auto MDI/MDI-X), DoS attack prevention, DiffServ support, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, SNTP support, Non-Stop Forwarding (NSF), sFlow, Per-VLAN Spanning Tree Plus (P |
| Flash Memory | 256 MB |
| Jumbo Frame Support | 9KB |
| MAC Address Table Size | 16K entries |
| Performance | Switching fabric bandwidth: 480 Gbps | Throughput: 238 Mpps |
| PoE Budget | 500 W |
| Ports | 16 x 100/1000/2.5G/5G/10GBase-T (PoE+) |
| Power Over Ethernet (PoE) | PoE+ |
| Processor | : 800 MHz |
| RAM | 1 GB |
| Remote Management Protocol | SNMP, RMON, Telnet, SNMP 3, HTTP, HTTPS, SSH-2, CLI, SCP, SFTP, DHCP, IPv4, IPv6, RSTP, TACACS+, RADIUS |
| Routing Protocol | RIP-2, IGMP, VRRP, OSPFv2, PIM-SM, static IP routing, PIM-DM, OSPFv3, PIM-SSM, ECMP, policy-based routing (PBR), MLD, MSTP, RSTP |
| Status Indicators | Status |
| Subtype | 10 Gigabit Ethernet |
| Expansion / Connectivity | |
| Interfaces | 16 x 100/1000/2.5G/5G/10GBase-T RJ-45 PoE+ | 1 x management (Gigabit LAN) RJ-45 | 1 x serial (RS-232) RJ-45 | 1 x console (mini-USB) | 1 x USB Type A |
| Power | |
| 80 PLUS Certification | 80 PLUS |
| Features | Front-to-rear airflow |
| Installed Qty | 1 |
| Max Supported Qty | 1 |
| Power Consumption Operational | 610 Watt |
| Power Device | Internal power supply |
| Power Provided | 600 Watt |
| Voltage Required | AC 120/230 V |
| Miscellaneous | |
| Compliant Standards | SCCP |
| Localization | United States, Europe |
| MTBF | 690,301 hours |
| Dimensions & Weight | |
| Depth | 34.5 cm |
| Height | 4.4 cm |
| Weight | 3.22 kg |
| Width | 21.2 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
