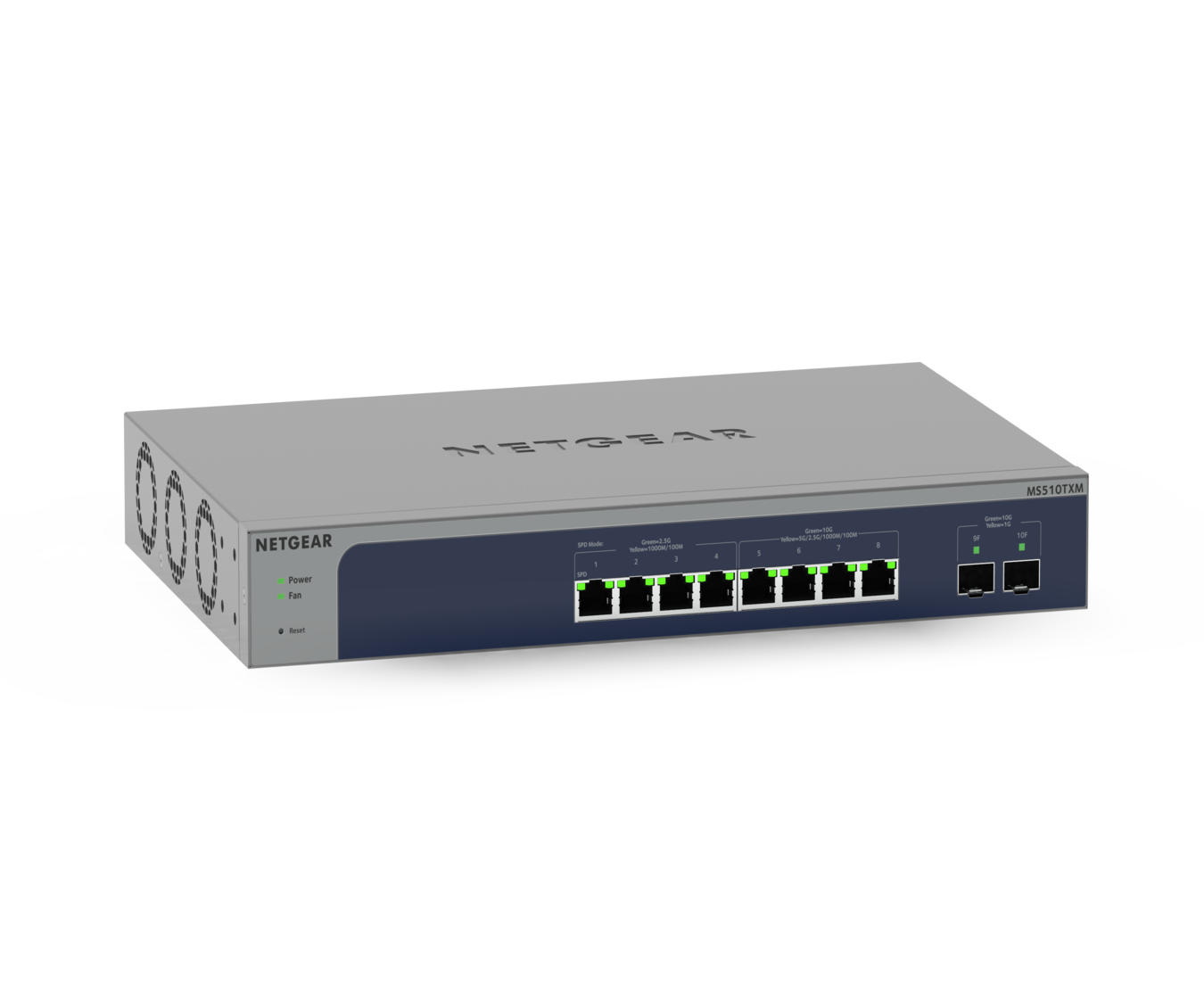

NETGEAR Smart MS510TXM Switch 8-porte
NETGEAR Smart MS510TXM - Switch - L3 Lite - smart - 4 x 100/1000/2.5G + 4 x 1/2.5/5/10GBase-T + 2 x 10 Gigabit SFP+ (uplink) - desktop, monterbar på stativ
-
Product no 998002112
Model MS510TXM-100EUS
Brand NETGEAR
EAN 0606449152364
Weight 3.37 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Switch-type | Administreret |
| Basis omskiftning RJ-45 Ethernet porte, antal | 8 |
| Basis omskiftning RJ-45 Ethernet porttype | 10G Ethernet (100/1000/10000) |
| Netværksstandarder | IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x |
| 10G understøttelse | Ja |
| MAC adresselabel | 32000 entries |
| Switch kapacitet | 140 Gbit/sek. |
| Stativ-montering | Ja |
| Strømforsyning inkluderet | Ja |
| Strøm over Ethernet (PoE) | Ingen |
| General | |
|---|---|
| Authentication Method | RADIUS, TACACS+, Extensible Authentication Protocol (EAP) |
| Capacity | Packet buffer size: 2 MB | ACL entries (ingress): 100 | VLANs supported: 256 | IGMP groups: 256 | Priority queues: 8 | DHCP snooping entries: 256 |
| Compliant Standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3az, UPnP |
| Device Type | Switch - 8 ports - L3 Lite - smart |
| Enclosure Type | Desktop, rack-mountable |
| Encryption Algorithm | TLS 1.2 |
| Features | Flow control, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, store and forward, Broadcast Storm Control, full duplex mode, Multicast Storm Control, Unicast Storm Control, firmware upgradable, SNTP support, DHC |
| Flash Memory | 64 MB |
| Jumbo Frame Support | 10KB |
| MAC Address Table Size | 32000 entries |
| Performance | Fabric throughput: 140 Gbps | Forwarding rate (64‑byte packets): 14.8 Mpps | 2.5 Gbps copper latency (64-byte packets): 5.903 µs | 2.5 Gbps copper latency (1518-byte packets): 6.040 µs | 2.5 Gbps copper latency (9216-byte packets): 6.079 µs | 10 Gbps |
| Ports | 4 x 100/1000/2.5G + 4 x 1/2.5/5/10GBase-T + 2 x 10 Gigabit SFP+ (uplink) |
| Processor | : 1 GHz |
| RAM | 256 MB |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTP, HTTPS, IPv6, RSTP, TACACS+, RADIUS |
| Routing Protocol | IGMPv2, IGMP, IGMPv3, MLDv2, MLD, MSTP, RSTP, STP |
| Status Indicators | Power, fan, link/activity/speed |
| Expansion / Connectivity | |
| Interfaces | 4 x 100/1000/2.5G RJ-45 | 4 x 1/2.5/5/10GBase-T RJ-45 | 2 x 10GBase-X SFP+ uplink |
| Power | |
| Installed Qty | 1 |
| Power Consumption Operational | 47 Watt |
| Power Device | Internal power supply |
| Miscellaneous | |
| Included Accessories | Rubber feet |
| Localization | Europe |
| MTBF | 1,059,519 hours |
| Rack Mounting Kit | Included |
| Dimensions & Weight | |
| Depth | 20.6 cm |
| Height | 4.3 cm |
| Weight | 2.08 kg |
| Width | 33 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - lifetime - response time: next business day |
| Environmental Parameters | |
| Humidity Range Operating | 90% (non-condensing) |
| Humidity Range Storage | 95% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -20 °C |
