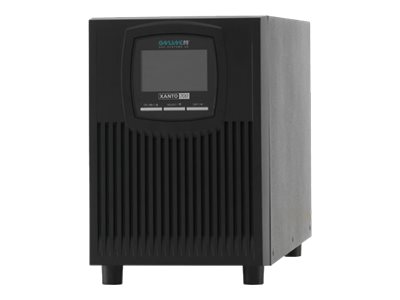

Online USV XANTO 700 UPS 700Watt 700VA

Online USV XANTO 700 - UPS - AC 230 V - 700 Watt - 700 VA - 9 At - RS-232, USB - output-stikforbindelser: 4

  • Product no 992603173

    Model X700

    Brand ONLINE USV-Systeme

    EAN 4026908003666

    Weight 13.5 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Produktbeskrivelse Online USV XANTO 700 - UPS - 700 Watt - 700 VA
Enhedstype UPS - ekstern
Vægt 12.1 kg
Indgangspænding AC 230 V
Udgangspænding AC 208/220/230/240 V ± 1%
Strømkapacitet 700 Watt / 700 VA
Input-stik 1 x strøm IEC 60320 C14
Output-stikforbindelser 4 x power IEC 60320 C13
Batteri Blysyre - 9 At
Antal batterier 2
Driftstid (op til) 10 min ved fuld belastning
Netværk RS-232, USB
Dimensioner (B x D x H) 15.8 cm x 39.7 cm x 23.8 cm
Producentgaranti 2 års garanti
General
Device Type UPS - external
Power Device
Dataline Surge Protection Network/phone line - 1 input line / 1 output line
Efficiency 97%, 91% Battery mode
Frequency Provided 50/60 Hz ± 3Hz
Frequency Required 50/60 Hz
Input Connectors 1 x power IEC 60320 C14
Input Voltage AC 230 V
Input Voltage Range AC 110 - 300 V / 160 - 300 V
Output Voltage AC 208/220/230/240 V ± 1% - 50/60 Hz
Output Waveform Sinewave
Power Capacity 700 Watt / 700 VA
Power Output Connectors Details 4 x power IEC 60320 C13
Surge Suppression Yes
UPS Technology On-line
Battery
Capacity 9 Ah
Quantity 2
Run Time (Up To) 10 min at full load | 24 min at half load
Technology Lead acid
Voltage Provided 12 V
Networking
Remote Management Interface RS-232, USB
Expansion / Connectivity
Expansion Slots 1 (total) / 1 (free) x expansion slot
Interfaces 1 x management (RS-232) - 9 pin D-Sub (DB-9) | 1 x management (USB) - 4 pin USB Type B | 1 x EPO (emergency power off) - screw terminal
Miscellaneous
Compliant Standards IEC 62040-3, IEC 62040-2, IEC 60950-1, IP20, IEC 62040-1, VFI-SS-111
Features Built-in cooling fan, LCD display, overload protection, programmable load outlets
MTBF 50,000 hours
Software / System Requirements
Software Included Drivers & Utilities
Manufacturer Warranty
Service & Support Limited warranty - 2 years | Limited warranty - batteries - 2 years
Environmental Parameters
Humidity Range Operating 20 - 90% (non-condensing)
Max Operating Temperature 40 °C
Min Operating Temperature 0 °C
Sound Emission 50 dBA
Dimensions & Weight
Depth 39.7 cm
Height 23.8 cm
Weight 12.1 kg
Width 15.8 cm
