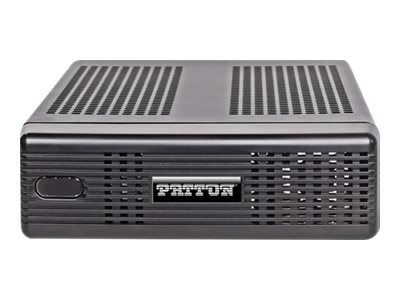

Patton SmartNode SN5600/4B/EUI Router 2-port switch Kabling
Patton SmartNode SN5600/4B/EUI - Router 2-port switch - 1GbE - VoIP-telefonadapter - væg-monterbar
-
Product no 1000869507
Model SN5600/4B/EUI
Brand Patton Electronics
EAN 0847840013704
Weight 0.45 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Patton SmartNode SN5600/4B/EUI - router - desktop, væg-monterbar |
| Enhedstype | Router - 2-port switch (integreret) |
| Pakningstype | Desktop, væg-monterbar |
| Dataforbindelsesprotokol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Kapacitet | VLANs understøttet: 4096 |
| Routingprotokol | RIP-1, RIP-2, BGP, VRRP, GRE |
| Protokol til fjernadministration | SNMP 1, Telnet, SNMP 3, HTTP, HTTPS, SSH, CLI, TR-069 |
| VoIP-funktionalitet | VoIP-telefonadapter |
| VoIP-protokoller | SIP, SIP v2 |
| Egenskaber | NAT-understøtning, NAPT-understøttet, VLAN-understøttet, IPv6 understøttet, SNTP-understøttet, DHCP server, IPv4 support, DHCP klient, MIB, MIB II |
| Overensstemmelsesstandarder | IEEE 802.1Q, IEEE 802.1p |
| Effekt | AC 120/230 V |
| Dimensioner (B x D x H) | 20.8 cm x 16.5 cm x 3.4 cm |
| Vægt | 450 g |
| General | |
|---|---|
| Authentication Method | RADIUS, TACACS+ |
| Capacity | VLANs supported: 4096 |
| Compliant Standards | IEEE 802.1Q, IEEE 802.1p, EN 60950, EN55022, EN55024, RoHS |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Device Type | Router - 2-port switch (integrated) |
| Enclosure Type | Desktop, wall-mountable |
| Features | NAT support, NAPT support, VLAN support, IPv6 support, SNTP support, DHCP server, IPv4 support, DHCP client, Management Information Base (MIB), Management Information Base (MIB) II |
| Remote Management Protocol | SNMP 1, Telnet, SNMP 3, HTTP, HTTPS, SSH, CLI, TR-069 |
| Routing Protocol | RIP-1, RIP-2, BGP, VRRP, GRE |
| IP Telephony | |
| Voice Codecs | G.711, G.722, G.723.1, G.729, G.729a, G.729ab, G.726, iLBC, AMR-NB |
| VoIP Functionality | VoIP phone adapter |
| VoIP Protocols | SIP, SIP v2 |
| Expansion / Connectivity | |
| Interfaces | LAN: 2 x 10Base-T/100Base-TX - RJ-45 | 1 x HDMI | Video: 1 x VGA | USB 2.0: 2 x | USB 3.0: 1 x |
| Power | |
| Power Consumption Operational | 10 Watt |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V |
| Dimensions & Weight | |
| Depth | 16.5 cm |
| Height | 3.4 cm |
| Weight | 450 g |
| Width | 20.8 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 90% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
