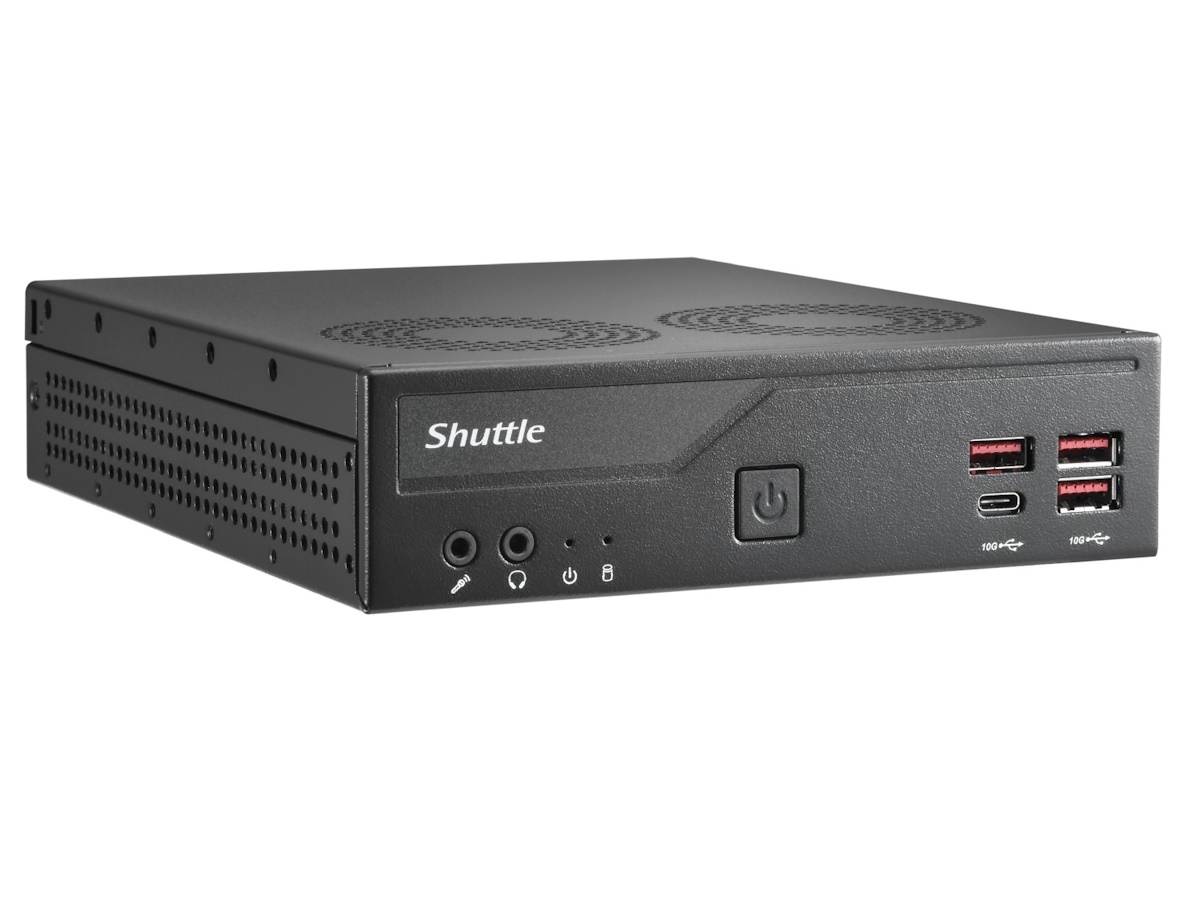

Shuttle DB860 Barebone LGA1851 0GB No-OS
Shuttle DB860 - Mini PC - Barebones - LGA1851 Socket - Intel B860 chipset - 0GB - 2x LAN (2,5Ghz, 1Ghz) - Sort
-
Product no 1003830535
Model DB860
Brand
Go to brand's websiteEAN 0887993008196
Weight 2.8 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Dimensions (L x W x H) | 190 x 165 x 43 mm |
| Weight | 1.3 kg |
| Operating System | Ingen OS (Understøtter Windows 11 and Linux (64-bit)) |
| Processor socket | Intel LGA1851 |
| Processor support | Intel Core Ultra 200 series 9/7/5 processors (Max Base TDP: 65W) |
| Processor cooling | Heat-pipe processor cooling, two 70 mm fans |
| Graphics | Depend on the processor type used |
| Graphics output | HDMI 2.1, HDMI 2.0, 1x DisplayPort, 1x USB-C Alt-mode |
| Chipset | Intel B860 |
| BIOS | AMI BIOS, SPI Interface, 32 MB Flash-EEPROM |
| TPM | fTPM v2.0 |
| Memory support | 2x SO-DIMM, DDR5-5600, (Supports Dual Channel), Max 48 GB per dimm |
| Drive bay | 1x 6.35 cm |
| SATA connectors | 1x Serial-ATA III, 6 Gb/s (600 MB/s) bandwidth |
| Storage | M.2-2280M PCI-Express Gen. 5.0 X4 |
| WLAN | M.2-2230E PCI-Express X1, USB 2.0 and CNVi |
| Audio | Realtek® ALC888S |
| LAN | 1x 2.5G LAN port (Intel 226 chip), 1x 1.0G LAN port (Intel 219 chip) |

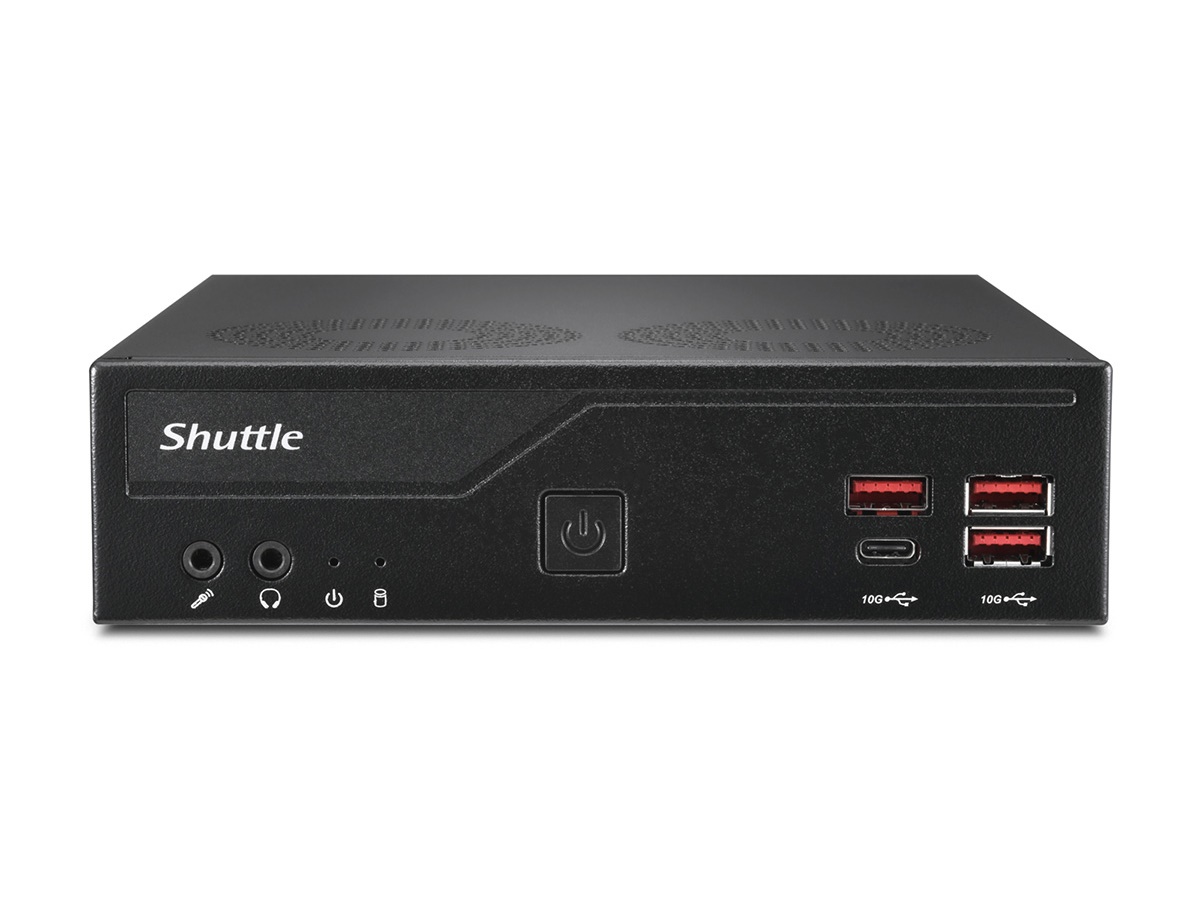

| Front Panel connectors | Microphone input, Audio Line-out (headphones), 3x USB 3.2 Gen 2 Type A (red), 1x USB 3.2 Gen 2 Type C supports 3A charging current |

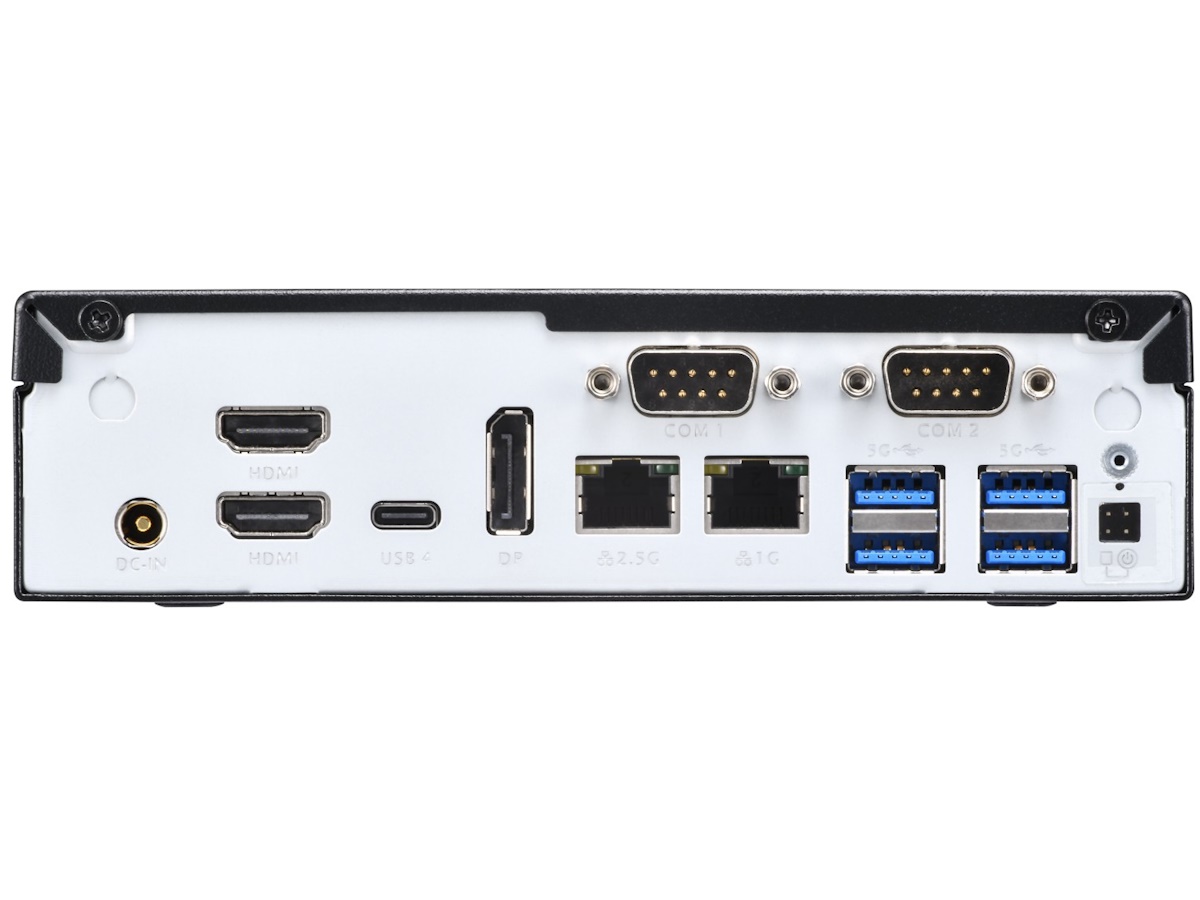

| Back Panel connectors | 1x HDMI 2.1 supports 8K/60Hz, 1x HDMI 2.0 supports 4K/60Hz, 1x DisplayPort (DP 1.4a), 1x USB4 as USB-C port supports DP 1.4a, USB4 (20 Gbit/s) and 3A charging current, 4x USB 3.2 Gen 1 Type A (blue), 1x 2.5G LAN (RJ45, Intel i225), 1x 1.0G LAN (RJ45, Intel i219), 2x RS232 serial port, 9-pin D-Sub (5/12V, 1x RS422/RS485), 1x DC-input connector for external power adapter (supports 12V and 19.5V), 1x 4-pin connector (External power button, Clear CMOS, +5V) |
| Power Adapter | 180 W power adapter (fanless) |
