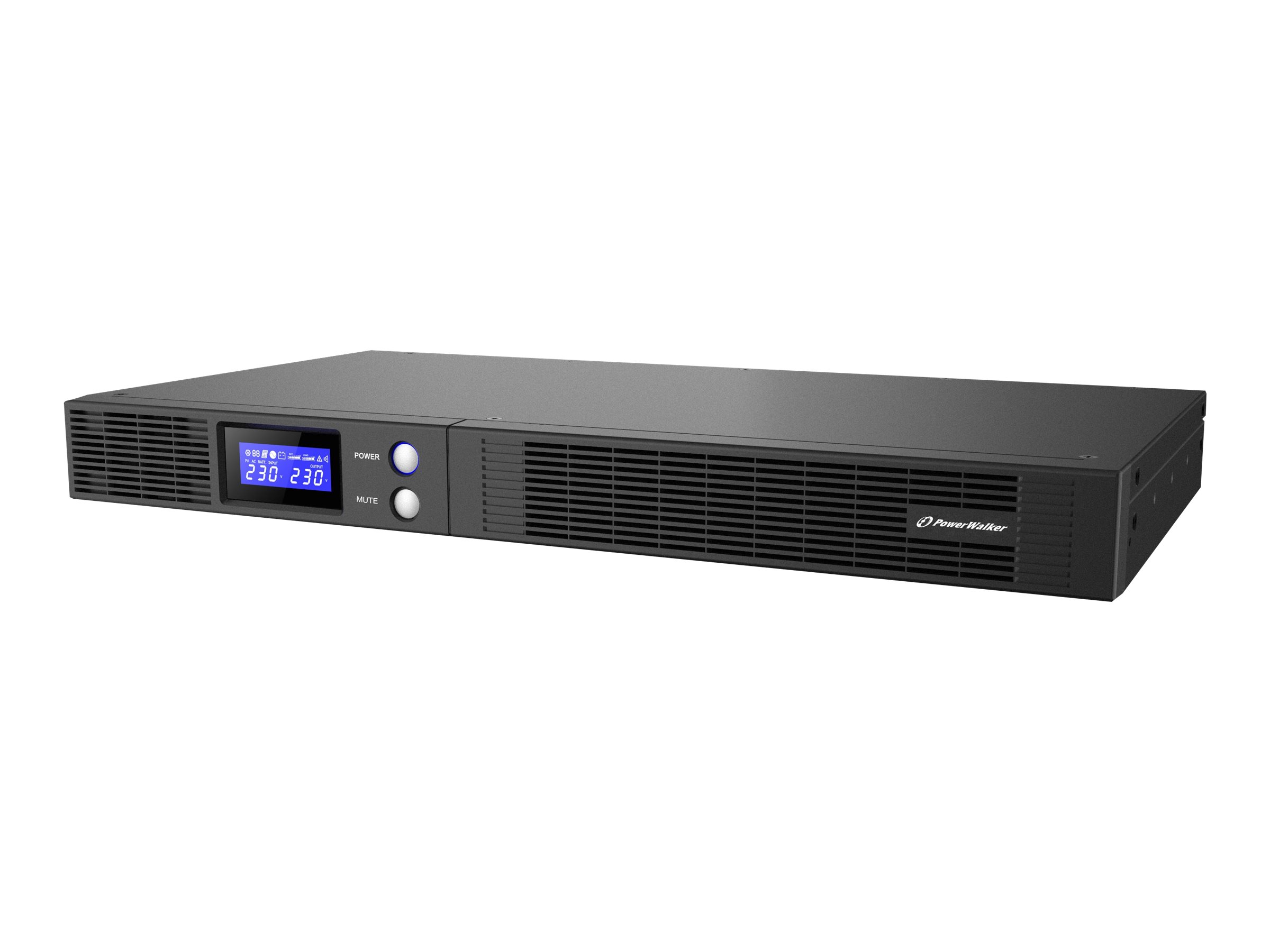

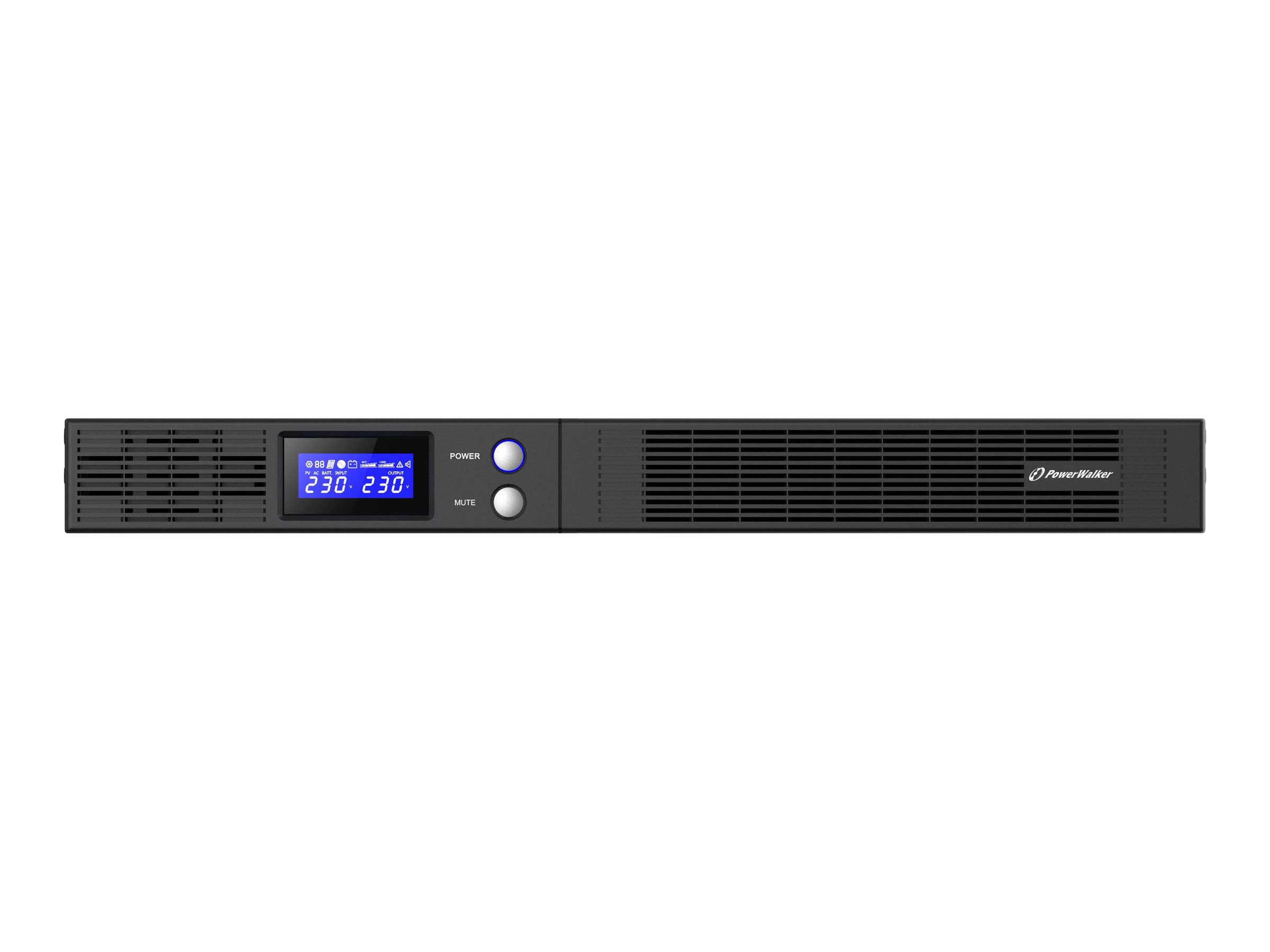

PowerWalker VI 750 R1U UPS
PowerWalker VI 750 R1U - UPS (rackversion) - AC 165-290 V - 450 Watt - 750 VA - 9 At - RS-232, USB - output-stikforbindelser: 4 - 1U - 19"
-
Product no 993216842
Model 10121048
Brand BlueWalker
EAN 4260074980394
Weight 10.4 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | PowerWalker VI 750 R1U - UPS - 450 Watt - 750 VA |
| Enhedstype | UPS - rackversion |
| Rackstørrelse | 19" - 1U |
| Vægt | 8.6 kg |
| Indgangspænding | AC 165-290 V |
| Udgangspænding | AC 230 V ± 10% |
| Strømkapacitet | 450 Watt / 750 VA |
| Input-stik | 1 x strøm IEC 60320 C14 |
| Output-stikforbindelser | 4 x power IEC 60320 C13 |
| Batteri | - 9 At |
| Antal batterier | 2 |
| Driftstid (op til) | 0.5 min ved fuld belastning |
| Netværk | RS-232, USB |
| Dimensioner (B x D x H) | 43.3 cm x 21.6 cm x 4.4 cm |
| General | |
|---|---|
| Device Type | UPS - rack-mountable |
| Height (Rack Units) | 1U |
| Rack Size | 19" |
| Power Device | |
| Frequency Provided | ± 0.5Hz |
| Frequency Required | 45 - 55 Hz |
| Input Connectors | 1 x power IEC 60320 C14 |
| Input Voltage | AC 165-290 V |
| Output Voltage | AC 230 V ± 10% |
| Output Waveform | Sinewave |
| Power Capacity | 450 Watt / 750 VA |
| Power Factor (PF) | 0.6 |
| Power Output Connectors Details | 4 x power IEC 60320 C13 |
| Surge Suppression | Yes |
| UPS Technology | Line interactive |
| Battery | |
| Capacity | 9 Ah |
| Quantity | 2 |
| Recharge Time | 5 hours |
| Run Time (Up To) | 0.5 min at full load | 4.7 min at 75% load | 10.9 min at half load | 26 min at 25% load |
| Transfer Time | 4 ms |
| Voltage Provided | 6 V |
| Networking | |
| Remote Management Interface | RS-232, USB |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x Intelligent Slot |

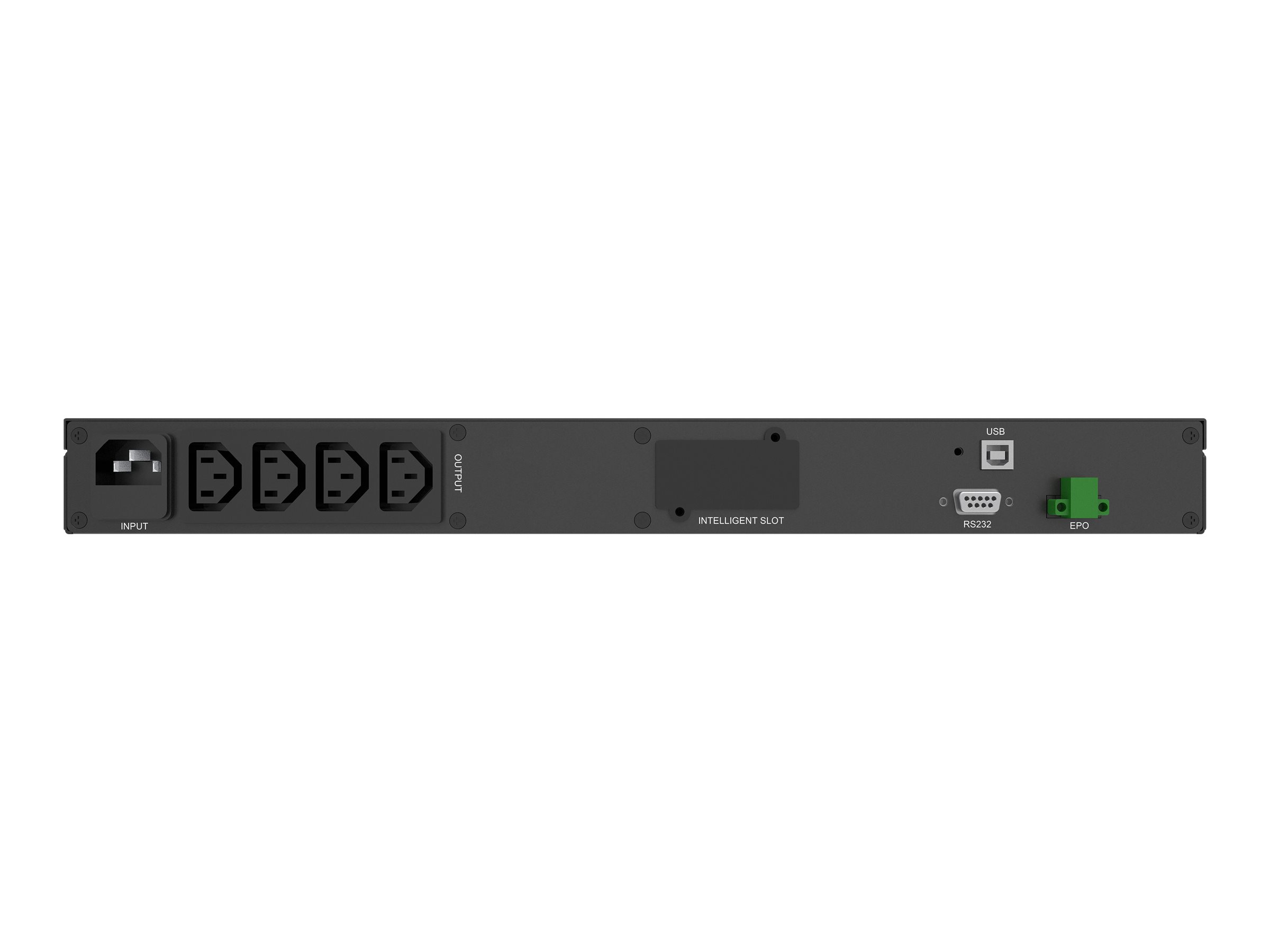

| Interfaces | 1 x management (USB) - 4 pin USB Type B | 1 x management (RS-232) - 9 pin D-Sub (DB-9) | 1 x EPO (emergency power off) |
| Miscellaneous | |
| Cables Included | USB cable - external | Power cable - external |
| Features | Emergency power off, LCD display, overload protection |
| Software / System Requirements | |
| Software Included | PowerMaster |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 90% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Dimensions & Weight | |
| Depth | 21.6 cm |
| Height | 4.4 cm |
| Weight | 8.6 kg |
| Width | 43.3 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 31.7 cm |
| Shipping Height | 15 cm |
| Shipping Weight | 9.8 kg |
| Shipping Width | 53.7 cm |
