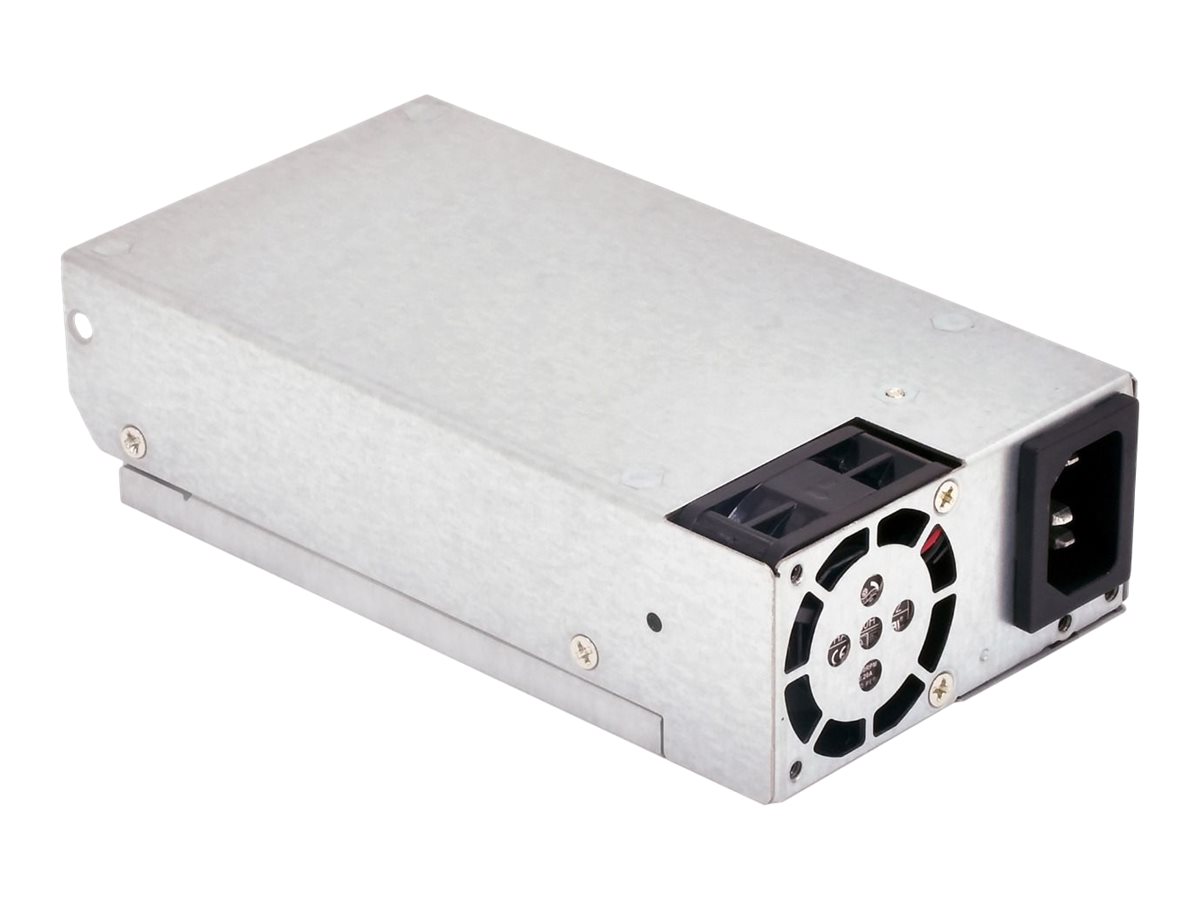

Seasonic SSP-250SUB Strømforsyning 250Watt
Seasonic SSP-250SUB - Strømforsyning (intern) - ATX12V 2.31/ EPS12V/ Flex ATX 1.0 - 80 PLUS Bronze - AC 100-240 V - 250 Watt - aktiv PFC
-
Product no 994796392
Model SSP-250SUB
Brand Sea Sonic Electronic
EAN 4711173873495
Weight 0.93 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Seasonic SSP-250SUB - strømforsyning - 250 Watt |
| Enhedstype | Strømforsyning - aktiv Power Factor Correction (PFC) - intern |
| Specifikationsoverensstemmelse | ATX12V 2.31/ EPS12V/ Flex ATX 1.0 |
| 80 PLUS certificering | 80 PLUS Bronze |
| Indgangspænding | AC 100-240 V |
| Udgangspænding | +3.3, +5, ±12 V |
| Strømkapacitet | 250 Watt |
| Output Current | +3.3V - 14 A<br>+5V - 17 A<br>+12V1 - 18 A<br>+12V2 - 18 A<br>-12V - 0.8 A<br>+5VSB - 2 A |
| Modulær Kabel Administration | Ja |
| Kølesystem | 40mm blæser |
| Dimensioner (B x D x H) | 8.15 cm x 15 cm x 4.05 cm |
| General | |
|---|---|
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| PSU Form Factor | Flex ATX |
| Specification Compliance | ATX12V 2.31/ EPS12V/ Flex ATX 1.0 |
| Power Device | |
| 80 PLUS Certification | 80 PLUS Bronze |
| Frequency Required | 47 - 63 Hz |
| Input Voltage | AC 100-240 V |
| Modular Cable Management | Yes |
| Output Current | +3.3V - 14 A | +5V - 17 A | +12V1 - 18 A | +12V2 - 18 A | -12V - 0.8 A | +5VSB - 2 A |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 250 Watt |
| Miscellaneous | |
| Compliant Standards | TUV, BSMI, cUL, CB, CCC, FCC, RCM |
| Cooling System | 40 mm fan |
| Features | Overvoltage protection, overpower protection, short-circuit protection, fully modular, Seasonic S3FC fan Control, fanless mode |
| MTBF | 100,000 hours |
| Dimensions & Weight | |
| Depth | 15 cm |
| Height | 4.05 cm |
| Width | 8.15 cm |
