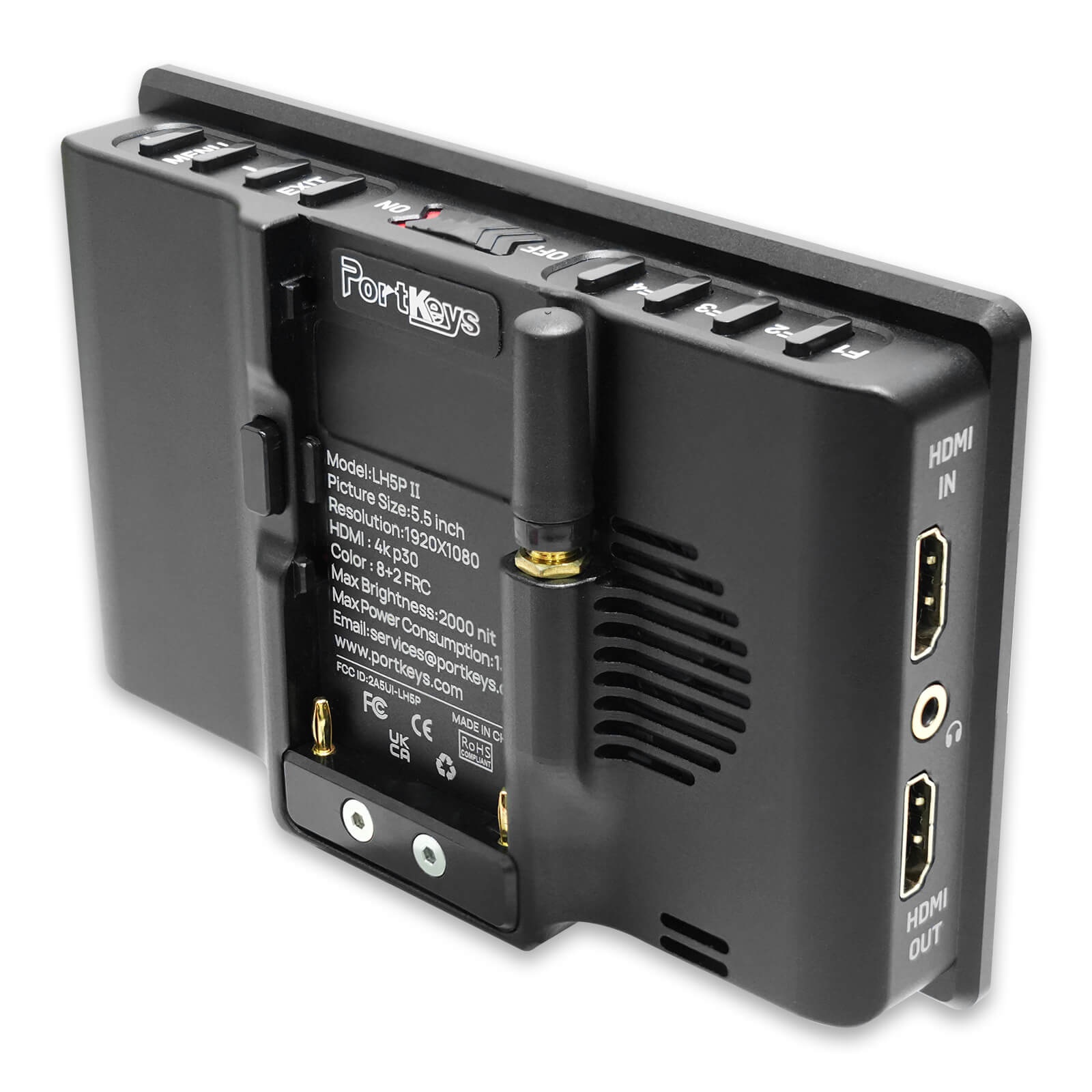

Portkeys LH5P II 5.5″ 1920 x 1080 (FullHD) HDMI Kamera Field Monitor
Portkeys LH5P II - 5,5" - Kamera Field Monitor - Fuld HD 1920 x 1080 - 2000 cd/m² - 1000:1 - HDMI (4K support) - sort
-
Product no 1002970610
Model LH5P-II
Brand Portkeys
EAN 5056443936005
Weight 0.53 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Screen Size | 5.5″ |
| Dimension | 144 x 90 x 30.8 mm |
| Viewing Angle | 178° x 178° |
| Brightness | 2000 nit |
| Resolution | 1920 x 1080 |
| Contrast Ratio | 1000:1 |
| Weight | 285 g |
| Color Depth | 10bit(8+2 FRC) |
| Maximum Power | 13W |
| Material | Aluminum alloy + Toughened glass |
| Input Voltage | DC 7-24V |
| Output Voltage | 4pin Aviation Connector OUT 7.4V(NPF) |
| Video Signal Input | 4K HDMI |
| Video Signal Output | 4K HDMI |
| Support Barrery Model | SONY NP-F970/F960/F750/F550 |
| 5pin Aviation Power Input | Available 7-24V power supply or NPF |
| 5pin Aviation Power Output | Can output 5V1A voltage to power other devices |
| Audio Output | 3.5mm Headphone Jack |
| USB-A | Firmware Update / 3D LUT |
| Fan | Yes |
