StarTech.com 5 Port Unmanaged Industrial - DIN Rail / Wall-Mountable Network - Rugged IP30 (IES51000) Switch 5-porte Gigabit
Startech 5 Port Unmanaged Industrial Gigabit Ethernet Switch - DIN Rail / Wall-Mountable Network Switch - Rugged IP30 Gigabit Switch (IES51000) - Switch - 5 x 10/100/1000 - desktop, DIN monterbar på skinne, væg-monterbar - DC strøm
-
Product no 989508263
Model IES51000
Brand StarTech.com
EAN 0065030859318
Weight 0.52 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Startech 5 Port Unmanaged Industrial Gigabit Ethernet Switch - DIN Rail / Wall-Mountable Network Switch - Rugged IP30 Gigabit Switch (IES51000) - switch - 5 porte |
| Enhedstype | Switch - 5 porte |
| Undertype | Gigabit Ethernet |
| Porte | 5 x 10/100/1000 |
| Præstation | Videresendelsespræstation (fuld duplex): 2 Gbps |
| Jumborammesupport | 9KB |
| Egenskaber | Datatransport, auto-uplink (auto MDI/MDI-X), gem og send, halv dupleksmodus, fuld dupleksmodus, til vægmontering, QoS, 128 KB pakkebuffer, LACP, Energy Efficient Ethernet |
| Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP) |
| Effekt | DC 12 - 58 V |
| Dimensioner (B x D x H) | 8.94 cm x 11.22 cm x 2.91 cm |
| Vægt | 329 g |
| Farve | Sort |
| Producentgaranti | 2 års garanti |
| General | |
|---|---|
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP) |
| Device Type | Switch - 5 ports |
| Enclosure Type | Desktop, DIN rail mountable, wall-mountable |
| Features | Flow control, auto-uplink (auto MDI/MDI-X), store and forward, half duplex mode, full duplex mode, wall mountable, Quality of Service (QoS), 128KB packet buffer, Link Aggregation Control Protocol (LACP), Energy Efficient Ethernet |
| Jumbo Frame Support | 9KB |
| Performance | Forwarding performance (full duplex): 2 Gbps |
| Ports | 5 x 10/100/1000 |
| Status Indicators | Port transmission speed, power, alarm, link/activity |
| Subtype | Gigabit Ethernet |
| Expansion / Connectivity | |
| Interfaces | 5 x 1000Base-T RJ-45 | 1 x 6 pin terminal block |
| Power | |
| Power Consumption Operational | 3.63 Watt |
| Power Device | Internal power supply |
| Voltage Required | DC 12 -58 V |
| Miscellaneous | |
| Color | Black |
| Compliant Standards | FCC, RoHS |
| Included Accessories | Mounting brackets |
| Rack Mounting Kit | Included |
| Dimensions & Weight | |
| Depth | 11.22 cm |
| Height | 2.91 cm |
| Weight | 329 g |
| Width | 8.94 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 75 °C |
| Max Storage Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Min Storage Temperature | -40 °C |

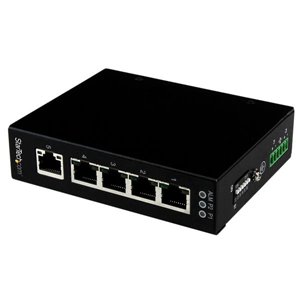

Network up to 5 Ethernet devices through a rugged, industrial Gigabit Ethernet switch - DIN / Wall Mountable
- 5 10/100/1000 Mbps unmanaged RJ45 Ethernet ports
- IP30-rated DIN rail and wall-mountable metal enclosure
- Wide-range redundant power via two 12-58V DC terminal block inputs, with alarm relay
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)

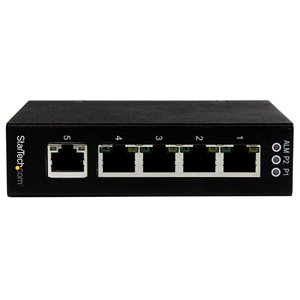

5 10/100/1000 Mbps unmanaged RJ45 Ethernet ports
Quickly connect your network devices with little to no configuration. This unmanaged industrial network switch supports 10/100/1000 Mbps transfer speeds, full/half-duplex auto-negotiation, jumbo frames and auto MDI/MDIX, which helps to eliminate the hassle of troubleshooting mis-matched speed and duplex settings..jpg)

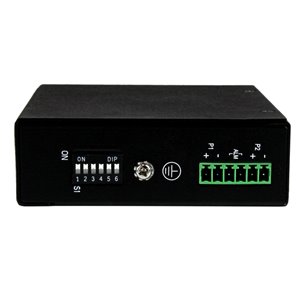

Maintain device operation during power disruptions, with redundant power inputs
Providing seamless operation in the event of power dips or failures, the switch features redundant 12-58V DC terminal block power inputs to help prevent unnecessary downtime. When used with two power sources, the switch also supports alarm relay contacts that you can wire to your existing alarm circuit to notify you instantly when a power disruption occurs..jpg)

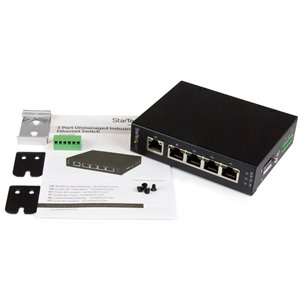

Install the switch exactly where you need it, using the included DIN Rail & wall-mount brackets
For easy installation and dependable performance in harsh environments, the switch can be DIN Rail or wall mounted and features a compact, IP30-rated enclosure with an extended operating temperature range (-40°C to 75°C).Applications
- Ideal for industrial applications such as warehouses and junction boxes without temperature control
- Suitable for adding Gigabit Ethernet on factory / manufacturing floors
- Great for adding small workgroups to an existing network
.jpg)
.jpg)
