StarTech.com Cisco GLC-FE-100FX Compatible SFP Module - 100BASE-FX - 100 Mbps 100Mbps Multimode Fiber MMF Optic Transceiver - 2km SFP (mini-GBIC) transceiver modul Fast Ethernet

StarTech.com Cisco GLC-FE-100FX Compatible SFP Module, 100BASE-FX, 100Mbps Multimode Fiber MMF Optic Transceiver, 100 Mbps, LC Connector, 2km, 1310nm, DDM, Cisco ASR920, IE2000, IE4000 - Lifetime Warranty (SFPF1302C) - SFP (mini-GBIC) transceiver modul - 100Mb LAN - 100Base-FX - LC multimodus - op til 2 km - 1310 nm

  • Product no 988492994

    Model SFPF1302C

    Brand StarTech.com

    EAN 0065030846370

    Weight 0.05 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Produktbeskrivelse StarTech.com Cisco GLC-FE-100FX Compatible SFP Module, 100BASE-FX, 100Mbps Multimode Fiber MMF Optic Transceiver, 100 Mbps, LC Connector, 2km, 1310nm, DDM, Cisco ASR920, IE2000, IE4000 - Lifetime Warranty (SFPF1302C) - SFP (mini-GBIC) transceiver modul - 100Mb LAN
Enhedstype SFP (mini-GBIC) transceiver modul - LC multimodus
Model Indstiksmodul
Kabeltype 100Base-FX
Dataoverførselshastighed 155 Mbps
Optisk bølgelængde 1310 nm
Dataforbindelsesprotokol 100Mb LAN
Maks. overføringsafstand 2 km
Dimensioner (B x D x H) 0.9 cm x 6.5 cm x 1.4 cm
Vægt 25 g
Producentgaranti Begrænset livtidsgaranti
General
Device Type SFP (mini-GBIC) transceiver module
Form Factor Plug-in module
Networking
Cabling Type 100Base-FX
Compliant Standards IEEE 802.3u
Connectivity Technology Wired
Data Link Protocol 100Mb LAN
Data Transfer Rate 155 Mbps
Features Full duplex capability, half duplex mode, Digital Diagnostics Monitoring Interface (DDMI)
Max Transfer Distance 2 km
Optical Wave Length 1310 nm
Expansion / Connectivity
Compatible Slots 1 x SFP (mini-GBIC)
Interfaces 1 x Ethernet 100Base-FX - LC multi-mode
Miscellaneous
Compliant Standards FCC, RoHS, MSA
Dimensions & Weight
Depth 6.5 cm
Height 1.4 cm
Weight 25 g
Width 0.9 cm
Manufacturer Warranty
Service & Support Limited warranty - lifetime
Environmental Parameters
Max Operating Temperature 70 °C
Min Operating Temperature 0 °C

Add, replace or upgrade SFP modules on 100 Mbps fiber equipment

The SFPF1302C Cisco® Compatible Fast Ethernet Fiber SFP Transceiver Module MM LC - 2 km (1.2 miles) is built to comply with MSA (Multi-Sourcing Agreement) standards to offer a cost-effective way to add, replace or upgrade a Multimode LC port on your 100 Mbps fiber networking equipment or fiber media converter.

Featuring data rates of up to 155 Mbps and support for Digital Diagnostics Monitoring (DDM), this LC SFP module can be installed into any fiber networking device with an MSA or Cisco compliant SFP port. Delivering convenience and scalability, the fiber transceiver is fully hot-pluggable, enabling you to install the module without interrupting network traffic or requiring a device reboot.

This 1300nm multi-mode SFP module is compatible with the Cisco GLC-FE-100FX transceiver.
Add, replace or upgrade SFP modules on 100 Mbps fiber equipment
slide {0} of {1}, zoom in, Add, replace or upgrade SFP modules on 100 Mbps fiber equipment
slide {0} of {1}, zoom in, Add, replace or upgrade SFP modules on 100 Mbps fiber equipment
slide {0} of {1}, zoom in, Add, replace or upgrade SFP modules on 100 Mbps fiber equipment
slide {0} of {1}, zoom in, Add, replace or upgrade SFP modules on 100 Mbps fiber equipment

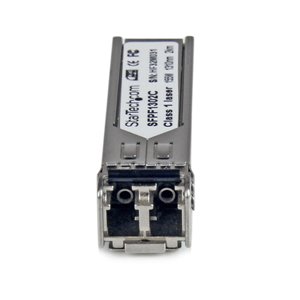

Applications

Applications

  • Replacing defective or damaged SFPs in MSA compliant or Cisco equipment
  • Expand your network to remote segments

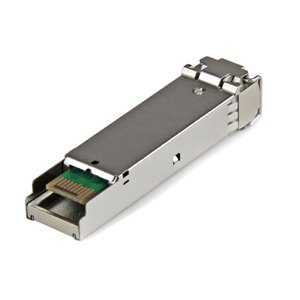

Product Features

Product Features

  • Supports data transfer rates up to 155 Mbps
  • Supports distances up to 2 km (1.2 miles)
  • Complies with SFP Multi-Source Agreements standards (MSA)
  • Compatible with Cisco® equipment
  • LC Fiber connector
  • Fully Hot Pluggable
