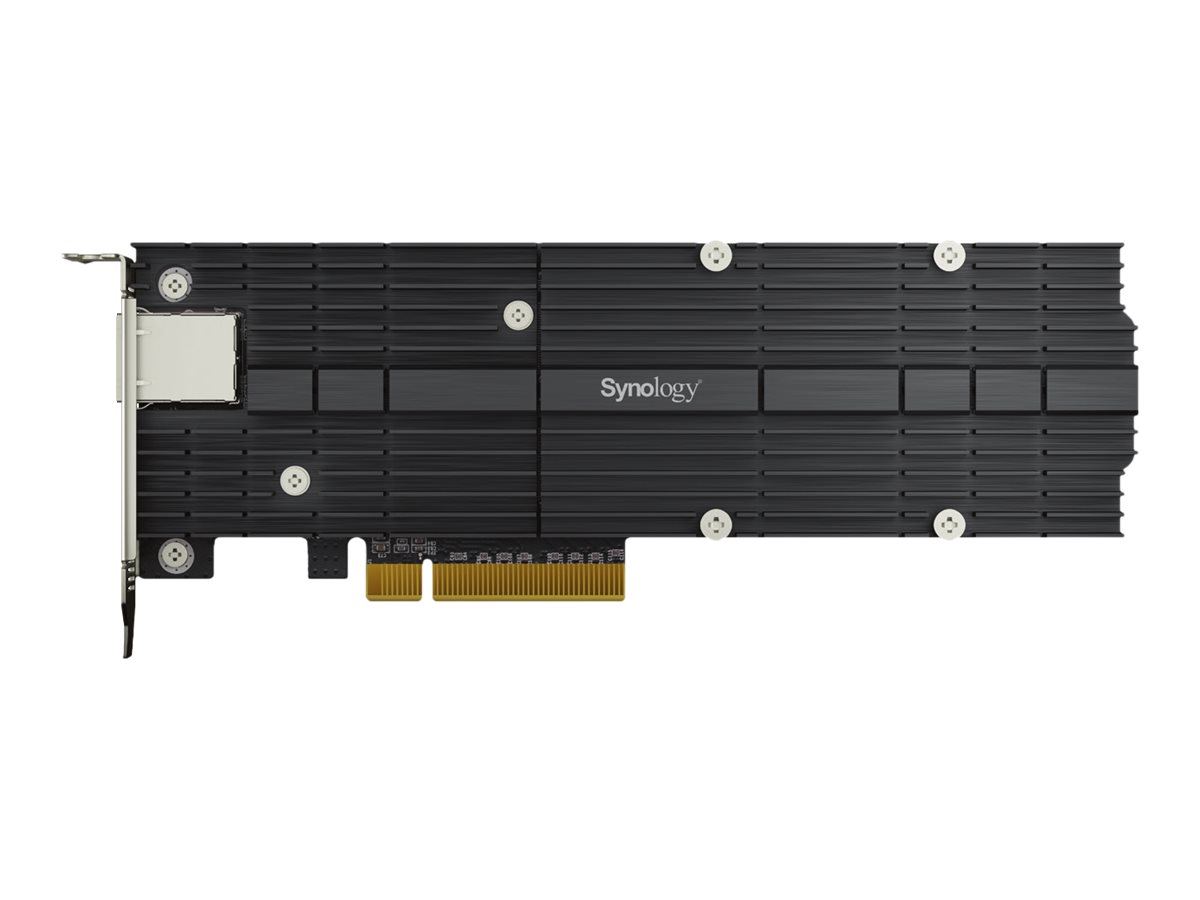

Synology E10M20-T1 Netværksadapter PCI Express 3.0 x8 10Gbps
Synology E10M20-T1 - Netværksadapter - PCIe 3.0 x8 lavprofil - 10Gb Ethernet x 1 - for Synology RS820, SA3400, SA3600; Disk Station DS1618, DS1819, DS2419; RackStation RS820
-
Product no 996043622
Model E10M20-T1
Brand Synology
EAN 4711174723485
Weight 0.36 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Synology E10M20-T1 - netværksadapter - PCIe 3.0 x8 - 10Gb Ethernet x 1 |
| Enhedstype | Netværksadapter |
| Model | Indstikskort - lavprofil |
| Grænseflade (bus) type | PCI Express 3.0 x8 |
| PCI-specifikationsrevision | PCIe 3.0 |
| Porte | 10Gb Ethernet x 1 |
| Dimensioner (B x D x H) | 1.77 cm x 20.055 cm x 7.175 cm |
| Kabeltype | Ethernet 10GBase-T |
| Dataforbindelsesprotokol | 10GbE |
| Dataoverførselshastighed | 10 Gbps |
| Netværks/overføselsprotokol | TCP/IP, UDP/IP |
| Overensstemmelsesstandarder | IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3an, IEEE 802.3bz |
| Producentgaranti | 5 års garanti |
| Designet for | Synology RS820RP+, SA3400, SA3600; Disk Station DS1618+, DS1819+, DS2419+, DS3018xs; RackStation RS2818RP+, RS820+, RS820RP+ |
| General | |
|---|---|
| Device Type | Network adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 3.0 x8 |
| PCI Specification Revision | PCIe 3.0 |
| Networking | |
| Cabling Type | Ethernet 10GBase-T |
| Compliant Standards | IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3an, IEEE 802.3bz |
| Connectivity Technology | Wired |
| Data Link Protocol | 10 Gigabit Ethernet |
| Data Transfer Rate | 10 Gbps |
| Features | Flow control, auto-negotiation, full duplex mode, TCP/IP checksum offload, UDP/IP checksum offload, Jumbo Frames support (up to 9000 bytes) |
| Network / Transport Protocol | TCP/IP, UDP/IP |
| Ports | 10Gb Ethernet x 1 |
| Expansion / Connectivity | |
| Expansion Slots | 2 (total) / 2 (free) x M.2 Card |
| Interfaces | 1 x 10GBase-T - RJ-45 |
| Miscellaneous | |
| Included Accessories | Low-profile bracket, full-height bracket |
| Dimensions & Weight | |
| Depth | 20.055 cm |
| Height | 7.175 cm |
| Width | 1.77 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Compatibility Information | |
| Designed For | Synology RS820RP+, SA3400, SA3600 | Synology Disk Station DS1618+, DS1819+, DS2419+, DS3018xs | Synology RackStation RS2818RP+, RS820+, RS820RP+ |
Teknisk support: https://account.synology.com/support/support_form.php
https://account.synology.com/support/support_form.php
RMA
For håndtering og oprettelse af Synology garanti benyt.https://account.synology.com/support/support_form.php
