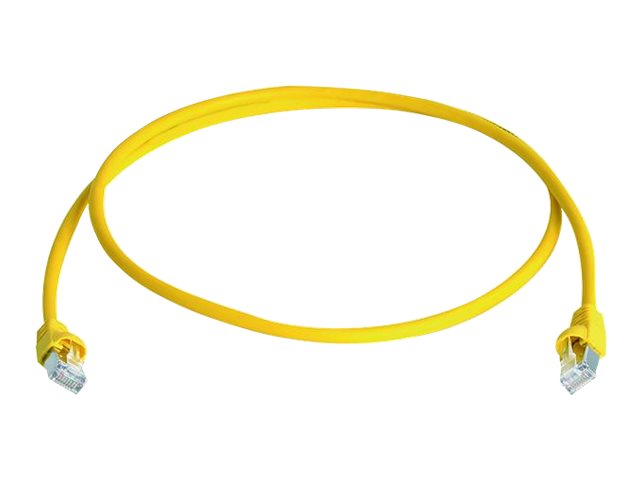

Telegärtner DataVoice Office MP8 FS 500 CAT 6a SFTP, PiMF 1m Patchkabel Yellow RAL 1018
Telegärtner DataVoice Office MP8 FS 500 - Patchkabel - RJ-45 (han) til RJ-45 (han) - 1 m - 5.8 mm - SFTP, PiMF - CAT 6a - IEEE 802.3an/IEEE 802.3af/IEEE 802.3at - halogenfri, formet, knastfri, strenget - gul, RAL 1018
-
Product no 1001129688
Model 100007977
Brand Telegärtner Karl
EAN 4018359286491
Weight kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Telegärtner DataVoice Office MP8 FS 500 - patchkabel - 1 m - gul, RAL 1018 |
| Type | Patchkabel - CAT 6a - IEEE 802.3an/IEEE 802.3af/IEEE 802.3at |
| Teknologi | SFTP, PiMF |
| Afskærmningsmateriale | Aluminiums folie med farvet kobber bøjle |
| Ledninger pr. kabel | 8 ledninger |
| Egenskaber | Halogenfri, formet, knastfri, strenget, brandhæmmende, PoE+ klar, presaflastning, PoE-klar, kobberledere, polyethylen-isolation, 1:1 pinout |
| Kabel længde | 1 m |
| Diameter | 5.8 mm |
| Forbindelsesled | RJ-45 - han |
| Stikforbindelse (anden ende) | RJ-45 - han |
| Farve | Gul, RAL 1018 |
| General | |
|---|---|
| American Wire Gauge (AWG) | 27/7 |
| Color | Yellow, RAL 1018 |
| Diameter | 5.8 mm |
| Features | Halogen-free, molded, snagless, stranded, flame retardant, PoE+ Ready, strain relief, PoE ready, copper conductors, polyethylene insulation, 1:1 pinout |
| Jacket Material | Low Smoke Zero Halogen (LSZH) |
| Length | 1 m |
| Network Cable Type | Patch cable - CAT 6a - IEEE 802.3an/IEEE 802.3af/IEEE 802.3at |
| Pairs per Cable | 4 pairs |
| Plated Connector | Nickel |
| Shielding Material | Aluminum foil with tinned copper braid |
| Technology | SFTP, PiMF |
| Wires per Cable | 8 wires |
| Connectivity | |
| Connector | RJ-45 - male |
| Connector (Second End) | RJ-45 - male |
| Miscellaneous | |
| Compliant Standards | IEC 60332-1, cULus, IPX0, IEC 60603-7-51, IEC 61034-2, RoHS 2011/65/EU, ISO/IEC 11801:2011-06 (Ed. 2.2), IP2X, GHMT, EIA/TIA 568B |
| Environmental Parameters | |
| Max Operating Temperature | 75 °C |
| Min Operating Temperature | -40 °C |
