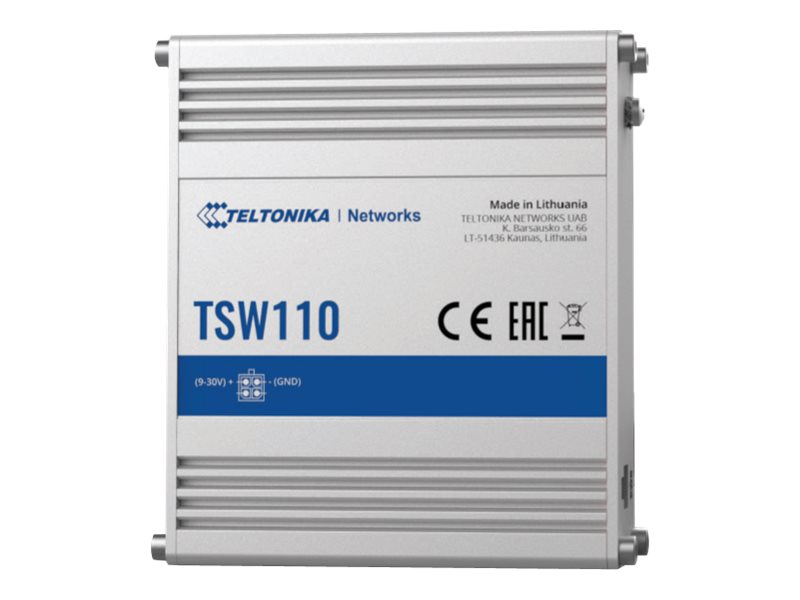

Teltonika TSW110 Switch 5-porte Gigabit Passive PoE
Teltonika TSW110 - Switch - ikke administreret - 5 x 10/100/1000 - DIN monterbar på skinne, overflademonterbar - Passive PoE - DC strøm
-
Product no 998433770
Model TSW110000000
Brand Teltonika
EAN 4779027312958
Weight 0.39 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Teltonika TSW110 - switch - 5 porte - ikke administreret |
| Enhedstype | Switch - 5 porte - ikke administreret |
| Undertype | Gigabit Ethernet |
| Porte | 5 x 10/100/1000 |
| Power Over Ethernet (PoE) | Passive PoE |
| Præstation | Ikke-blokerende båndbredde: 10 Gbps |
| Kapacitet | Pakkebufferstørrelse: 128 KB |
| MAC adresse table størrelse | 2K indtastningshukommelse |
| Jumborammesupport | 9216 byte |
| Egenskaber | Auto-uplink (auto MDI/MDI-X), aluminiumskabinet |
| Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.3u, IEEE 802.3az |
| Effekt | DC 9 - 30 V |
| Dimensioner (B x D x H) | 10 cm x 8.5 cm x 3 cm |
| Vægt | 227 g |
| General | |
|---|---|
| Capacity | Packet buffer size: 128 KB |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3az |
| Device Type | Switch - 5 ports - unmanaged |
| Enclosure Type | DIN rail mountable, surface-mountable |
| Features | Auto-uplink (auto MDI/MDI-X), aluminum housing |
| Jumbo Frame Support | 9216 bytes |
| MAC Address Table Size | 2K entries |
| Performance | Non-blocking bandwidth: 10 Gbps |
| Ports | 5 x 10/100/1000 |
| Power Over Ethernet (PoE) | Passive PoE |
| Status Indicators | Power, status |
| Subtype | Gigabit Ethernet |
| Expansion / Connectivity | |
| Interfaces | 5 x 1000Base-T RJ-45 |
| Power | |
| Power Consumption Operational | 1.8 Watt |
| Voltage Required | DC 9 - 30 V |
| Dimensions & Weight | |
| Depth | 8.5 cm |
| Height | 3 cm |
| Weight | 227 g |
| Width | 10 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Max Operating Temperature | 75 °C |
| Min Operating Temperature | -40 °C |
