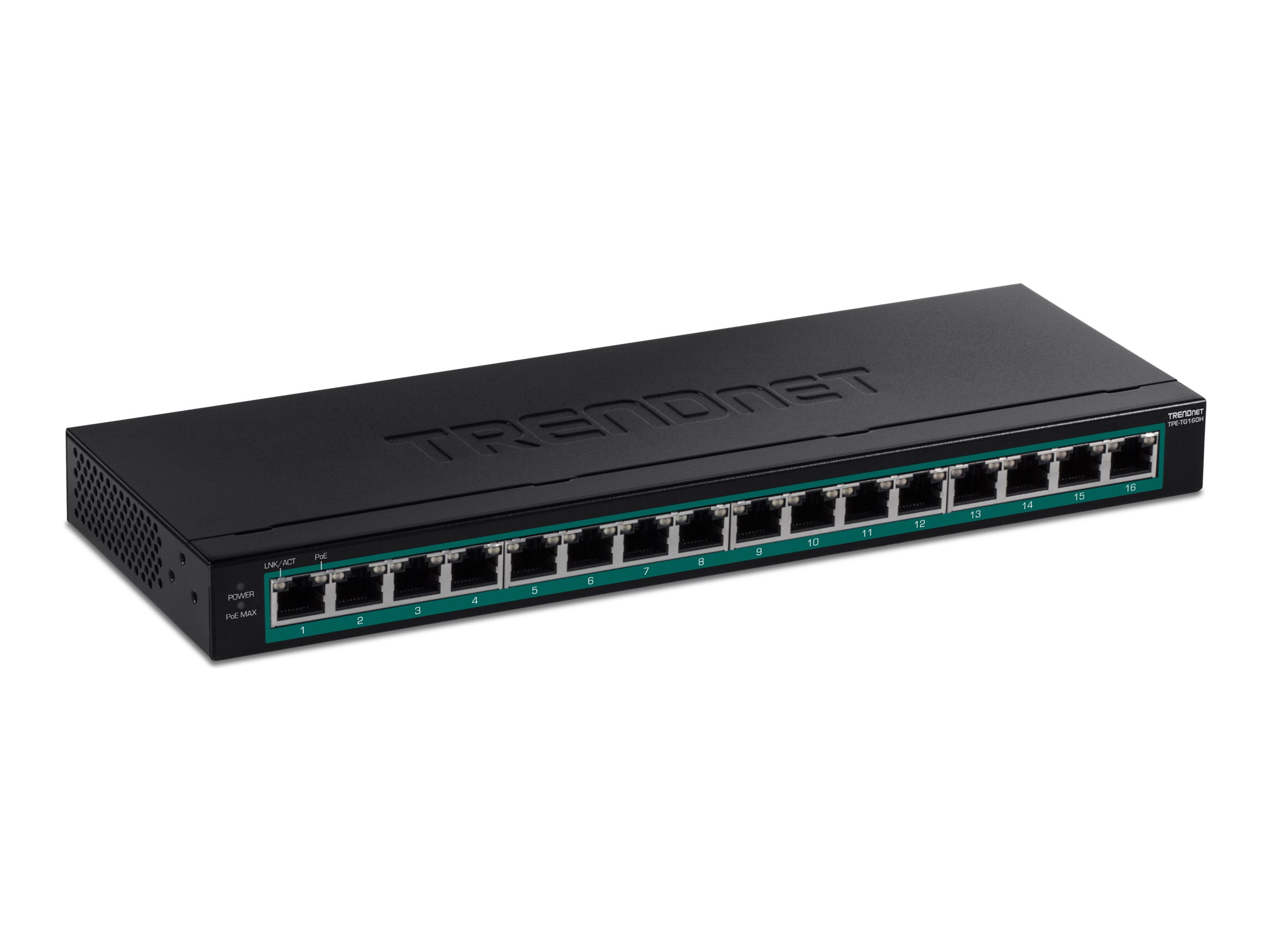

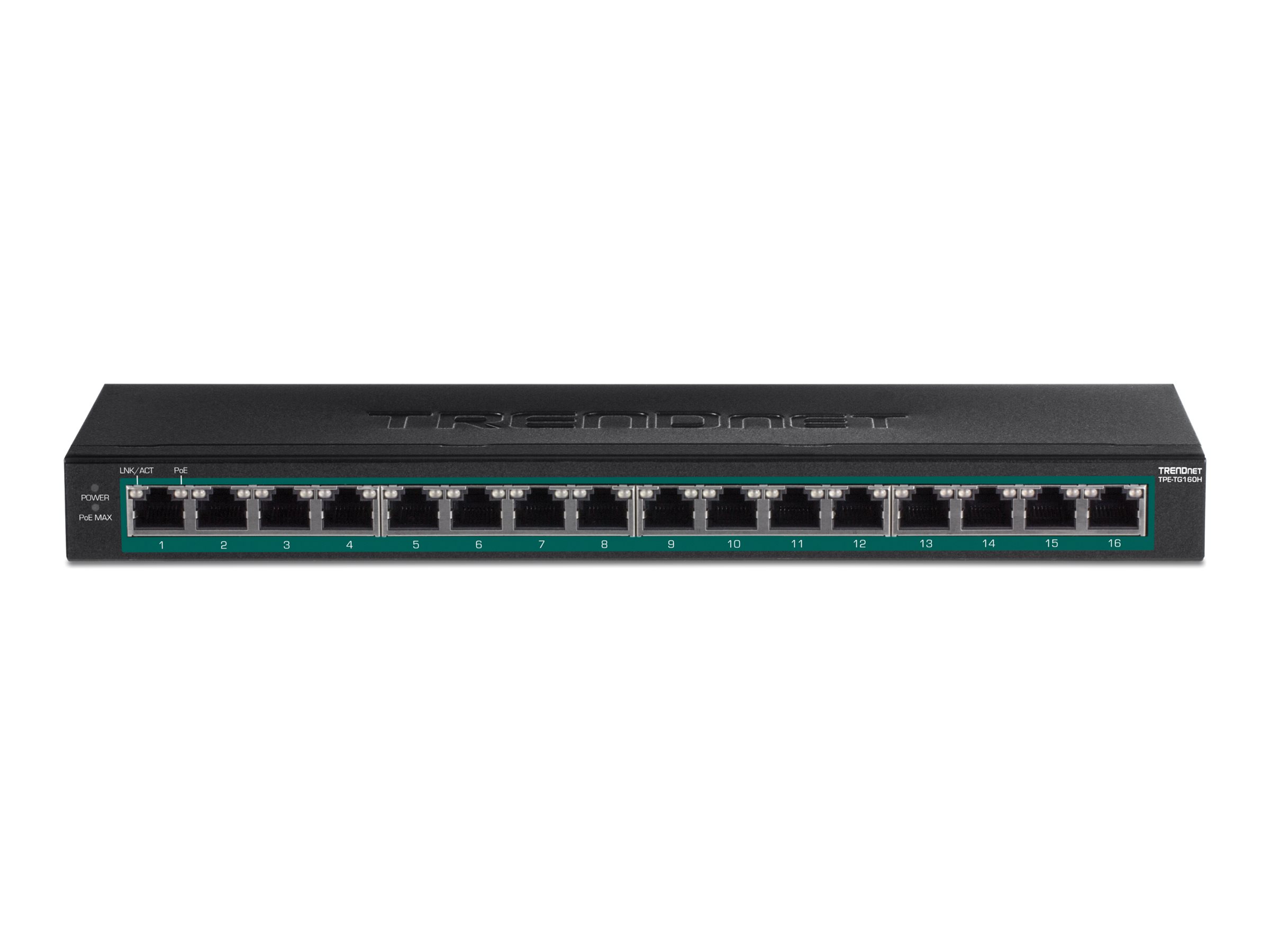

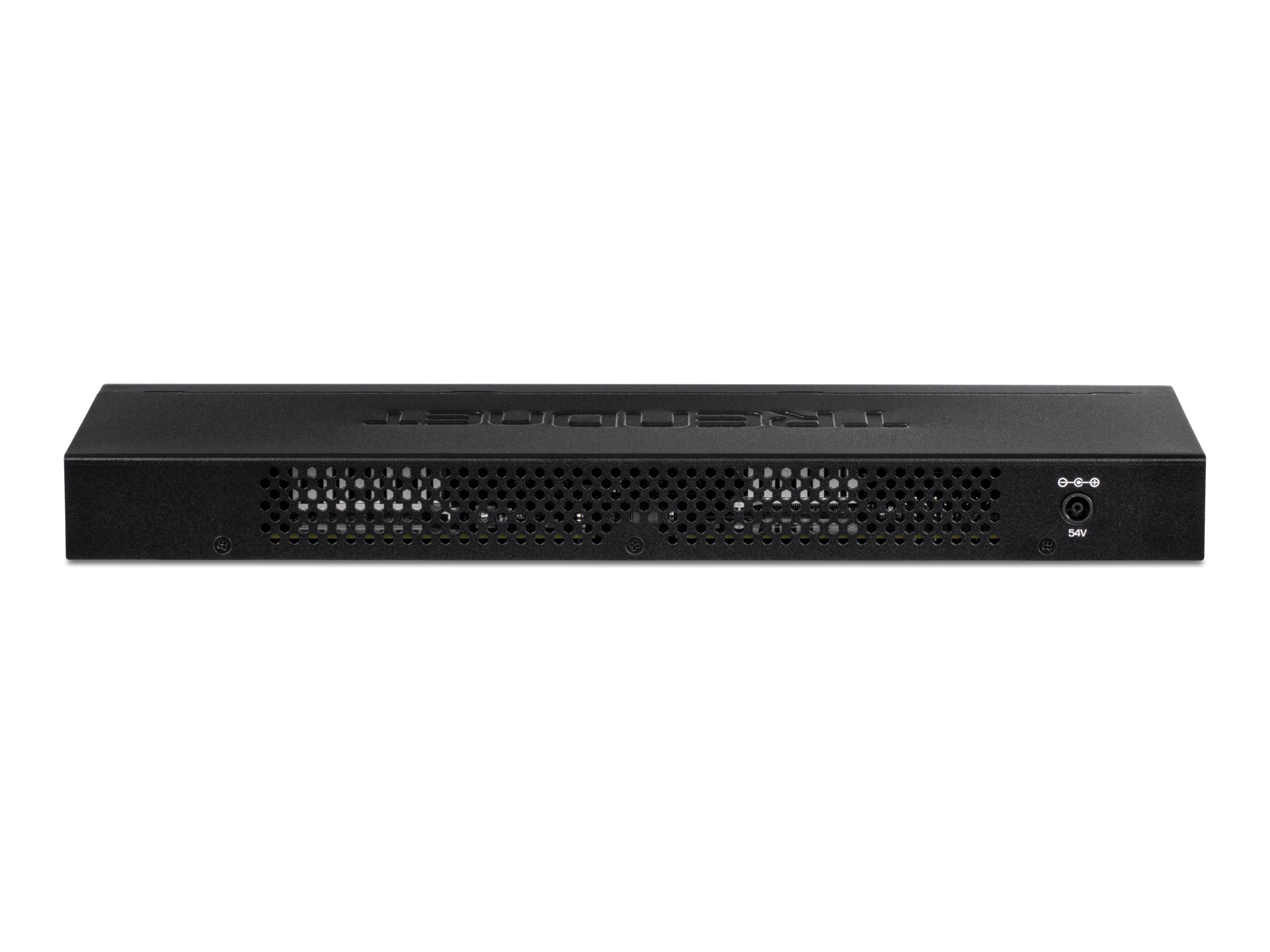

TRENDnet TPE TG160H Switch 16-porte Gigabit PoE+
TRENDnet TPE TG160H - Switch - 16 x 10/100/1000 (PoE+) - monterbar på stativ - PoE+ (123 W) - TAA-kompatibel
-
Product no 996482420
Model TPE-TG160H
Brand
Go to brand's websiteEAN 0710931161960
Weight 1.99 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | TRENDnet TPE TG160H - switch - 16 porte - monterbar på stativ - TAA-kompatibel |
| Enhedstype | Switch - 16 porte |
| Pakningstype | Monterbar på stativ 1U |
| Undertype | Gigabit Ethernet |
| Porte | 16 x 10/100/1000 (PoE+) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE-budget | 123 W |
| Præstation | Omkoblingskapacitet: 32 Gbps<br>Videresendelsespræstation (64-byte pakkestørrelse): 23.8 Mpps<br>Bufferhukommelse: 512 KB |
| Kapacitet | MAC adresser: 8000 |
| MAC adresse table størrelse | 8K indtastningshukommelse |
| Jumborammesupport | 10KB |
| Egenskaber | Halv dupleksmodus, fuld dupleksmodus, GREENnet teknologi, til vægmontering, blæserløs, overstrømsbeskyttelse, kortslutningsbeskyttelse, metalkabinet |
| Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at |
| Effekt | AC 120/230 V (50/60 Hz) |
| Dimensioner (B x D x H) | 28.6 cm x 10.2 cm x 2.7 cm |
| Vægt | 900 g |
| TAA kompatibel | Ja |
| Producentgaranti | Begrænset livtidsgaranti |
| General | |
|---|---|
| Capacity | MAC addresses: 8000 |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at |
| Device Type | Switch - 16 ports |
| Enclosure Type | Rack-mountable 1U |
| Features | Half duplex mode, full duplex mode, GREENnet technology, wall mountable, fanless, over-current protection, short circuit protection, metal housing |
| Jumbo Frame Support | 10KB |
| MAC Address Table Size | 8K entries |
| Performance | Switching capacity: 32 Gbps | Forwarding performance (64-byte packet size): 23.8 Mpps | Buffer memory: 512 KB |
| PoE Budget | 123 W |
| Ports | 16 x 10/100/1000 (PoE+) |
| Power Over Ethernet (PoE) | PoE+ |
| Status Indicators | Power, PoE, link/activity, PoE max |
| Subtype | Gigabit Ethernet |
| Expansion / Connectivity | |
| Interfaces | 16 x 1000Base-T RJ-45 PoE+ - 30 W |
| Power | |
| Power Consumption Operational | 12.8 Watt |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Miscellaneous | |
| Compliant Standards | FCC |

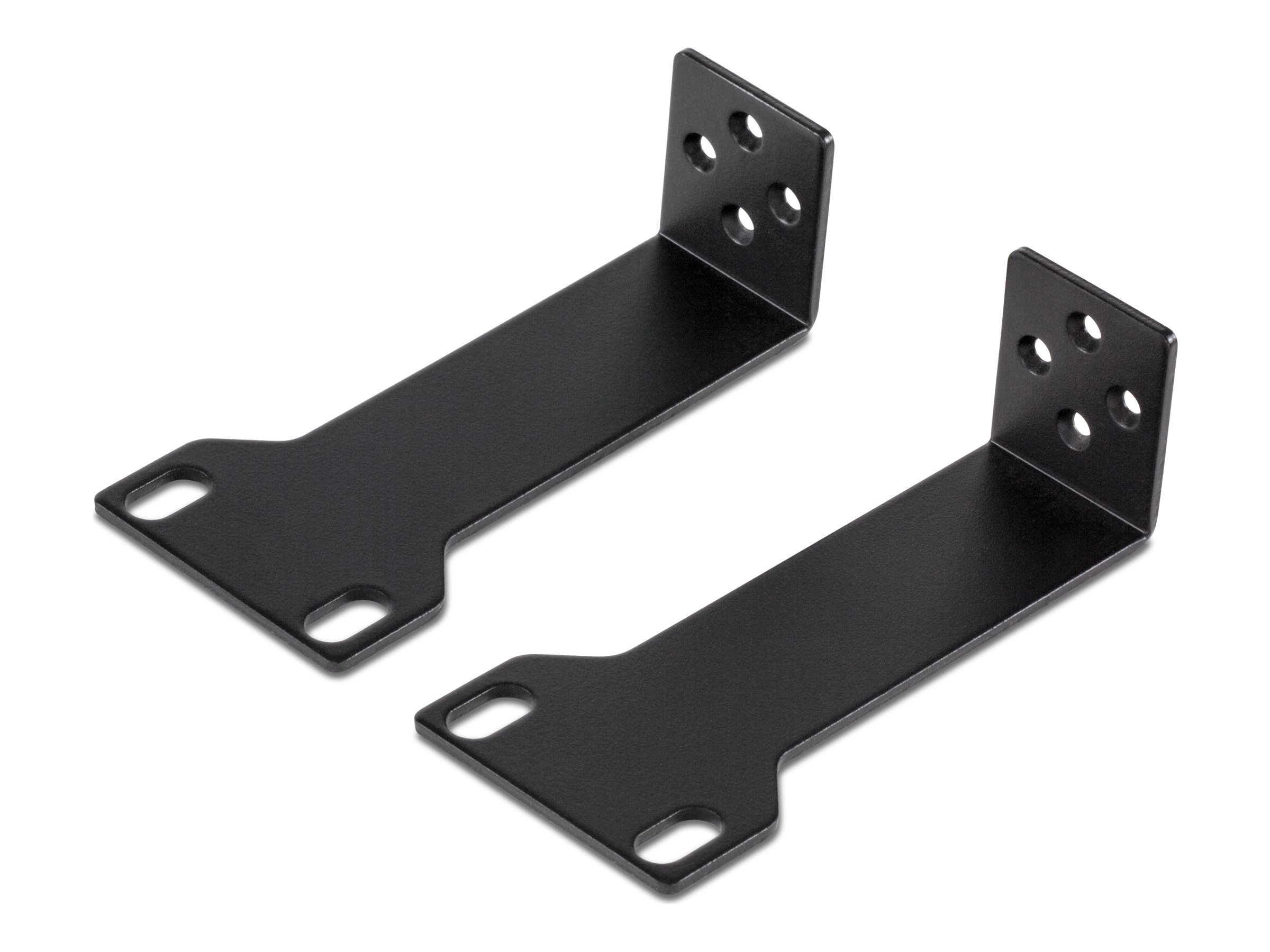

| Included Accessories | 2 mounting brackets |
| MTBF | 988,148 hours |
| Rack Mounting Kit | Included |
| Dimensions & Weight | |
| Depth | 10.2 cm |
| Height | 2.7 cm |
| Weight | 900 g |
| Width | 28.6 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 90% (non-condensing) |
| Max Operating Temperature | 45 °C |
| Min Operating Temperature | 0 °C |
