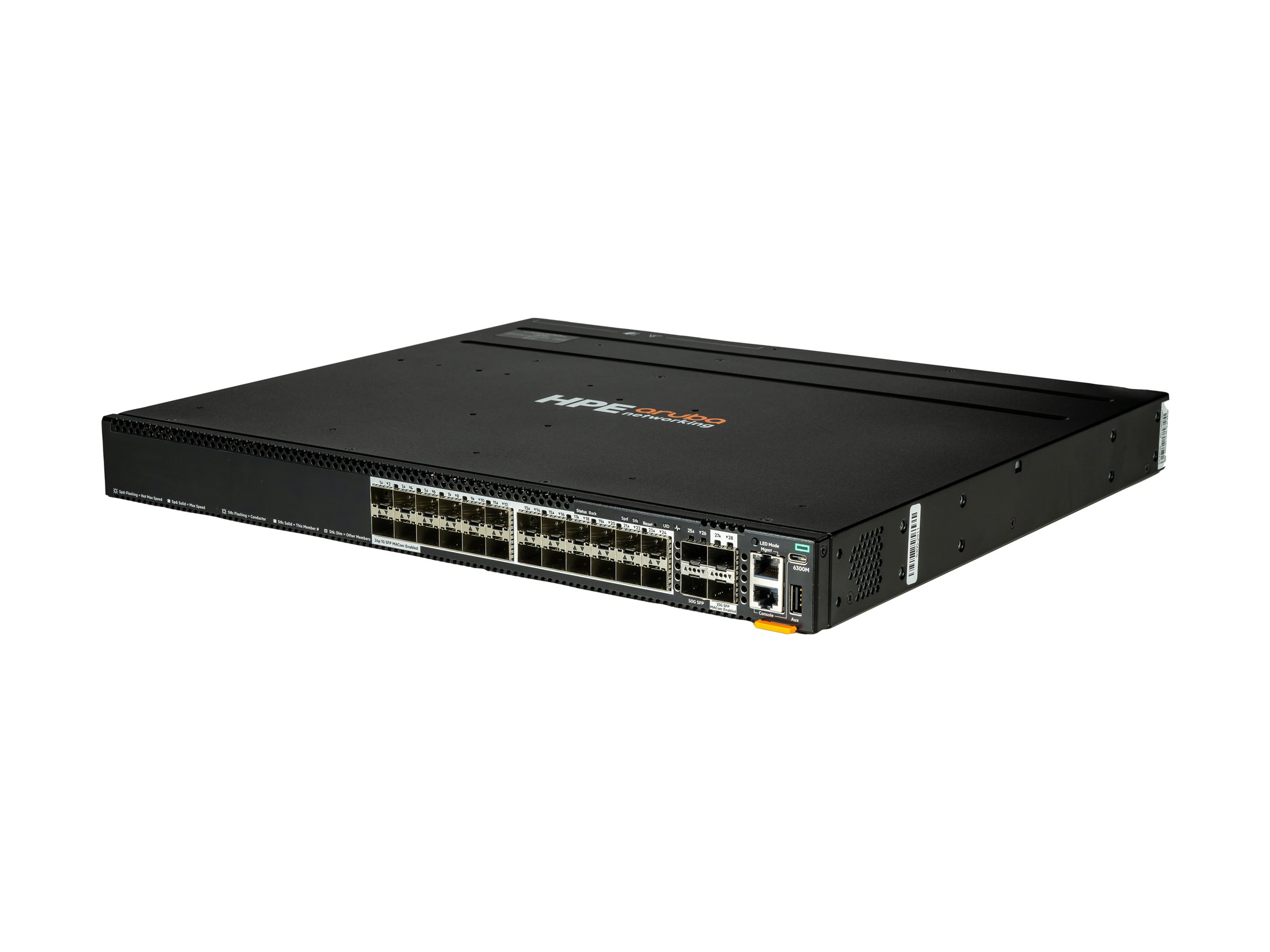

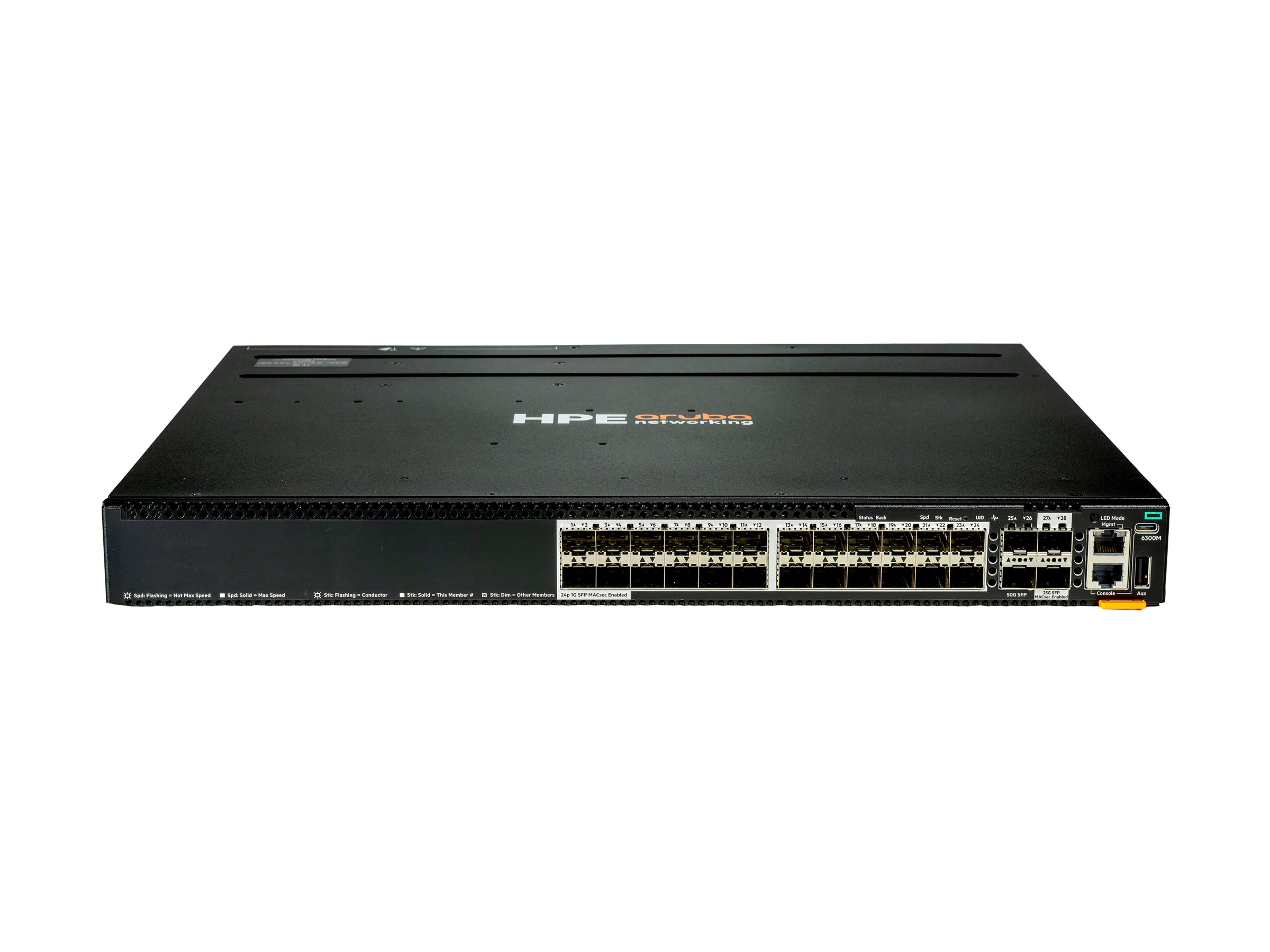

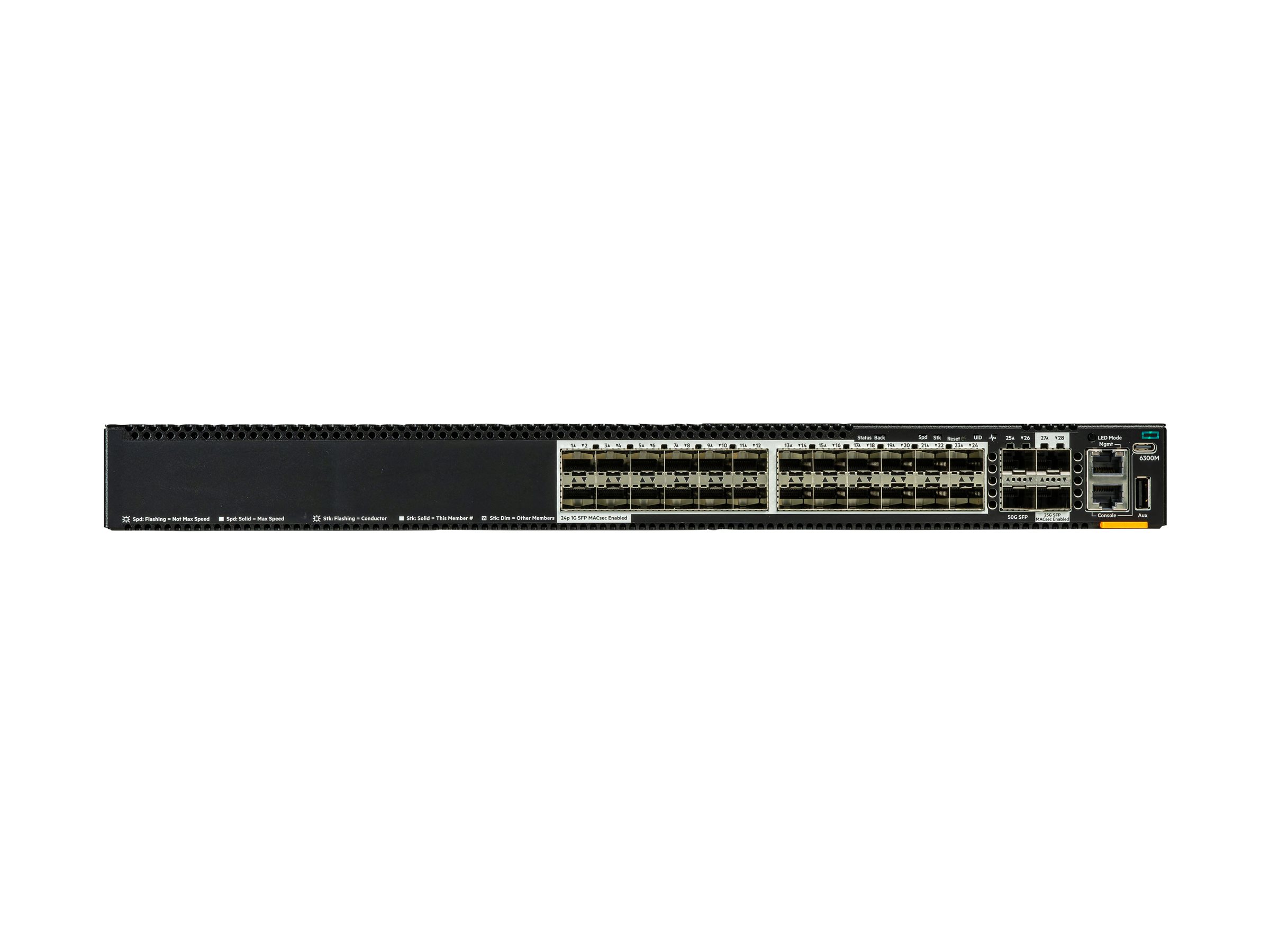

HPE Aruba Networking 6300M 24p SFP 1G 2p SFP28 25G MACsec 2p SFP56 50G Switch
HPE Aruba Networking 6300M 24p SFP 1G 2p SFP28 25G MACsec 2p SFP56 50G Switch. Switch kapacitet: 880 Gbit/sek.. Strøm over Ethernet (PoE)
-
Produktnummer 1003653768
Modell S4P44A
Varumärke Hewlett Packard Ente
EAN 0190017746319
Vikt kg
-
Information och specifikationer på sidan är vägledande och kan utan förvarning ändras av producenten. Alla uppgifter lämnas med reservation för tryckfel, och bilder är vägledande.
| Switch kapacitet | 880 Gbit/sek. |
| Stabelbar | Ja |
| Strøm over Ethernet (PoE) | Ja |
| Dataoverførsel | |
|---|---|
| Gennnemløb | 654 Mpps |
| Switch kapacitet | 880 Gbit/sek. |
| Design | |
| Stabelbar | Ja |
| Præstation | |
| Flashhukommelse | 32000 MB |
| Fysisk stabling | 10 |
| Hukommelsestype | DDR4-SDRAM |
| Indbygget processer | Ja |
| Intern hukommelse | 8000 MB |
| Processorfrekvens | 1800 MHz |
| Strømstyring | |
| Strømforbrug note | With JL086A PSU: Idle: 133W 100% Traffic Rate: 199W With JL087A PSU: Idle: 138W 100% Traffic Rate: 193W With JL670A PSU: Idle: 140W 100% Traffic Rate: 201W |
| Power over Ethernet (PoE) | |
| Strøm over Ethernet (PoE) | Ja |
| Total Power over Ethernet (PoE) | 2880 W |
| Andre funktioner | |
| Hukommelse og processor | CPU: Dual-core Arm Cortex-A9 @ 1.8GHz Memory: 8 GB DDR4, 32 GB eMMC Flash: 8 MB, 16 MB, or 32 MB, depending on model and configuration |
| I/O-porte | 48 x HPE Smart Rate 100 M [5]/1G/2.5G/5G BaseT Class 6 PoE ports supporting up to 60W per port 4 x 1G/10G/25G/50G [4] SFP ports Supports PoE standards IEEE 802.3af, 802.3at and 802.3bt (up to 60W) 1 x USB-C console port 1 x USB Type-A host port 1 x OOBM port |
| Målstyring | Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software |
| Reaktionstid | 1 Gbps: 4.24 μs 10 Gbps: 1.50 μs 25 Gbps: 2.91 μs 50 Gbps: 3.49 μs |
| Vægt (efter britisk standard) | 6,02 kg (13.3 Pund) |
| Ventilator | Switch has two fan tray slots and comes with two fan trays installed. Minimum two fan trays required. Fan trays are field replaceable and hot‑swappable. Each fan tray contains two fans. |
| Dataoverførsel | |
| Gennnemløb | 654 Mpps |
| Switch kapacitet | 880 Gbit/sek. |
| Design | |
| Stabelbar | Ja |
| Præstation | |
| Flashhukommelse | 32000 MB |
| Fysisk stabling | 10 |
| Hukommelsestype | DDR4-SDRAM |
| Indbygget processer | Ja |
| Intern hukommelse | 8000 MB |
| Processorfrekvens | 1800 MHz |
| Strømstyring | |
| Strømforbrug note | With JL086A PSU: Idle: 133W 100% Traffic Rate: 199W With JL087A PSU: Idle: 138W 100% Traffic Rate: 193W With JL670A PSU: Idle: 140W 100% Traffic Rate: 201W |
| Power over Ethernet (PoE) | |
| Strøm over Ethernet (PoE) | Ja |
| Total Power over Ethernet (PoE) | 2880 W |
| Andre funktioner | |
| Hukommelse og processor | CPU: Dual-core Arm Cortex-A9 @ 1.8GHz Memory: 8 GB DDR4, 32 GB eMMC Flash: 8 MB, 16 MB, or 32 MB, depending on model and configuration |
| I/O-porte | 48 x HPE Smart Rate 100 M [5]/1G/2.5G/5G BaseT Class 6 PoE ports supporting up to 60W per port 4 x 1G/10G/25G/50G [4] SFP ports Supports PoE standards IEEE 802.3af, 802.3at and 802.3bt (up to 60W) 1 x USB-C console port 1 x USB Type-A host port 1 x OOBM port |
| Målstyring | Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software |
| Reaktionstid | 1 Gbps: 4.24 μs 10 Gbps: 1.50 μs 25 Gbps: 2.91 μs 50 Gbps: 3.49 μs |
| Vægt (efter britisk standard) | 6,02 kg (13.3 Pund) |
| Ventilator | Switch has two fan tray slots and comes with two fan trays installed. Minimum two fan trays required. Fan trays are field replaceable and hot‑swappable. Each fan tray contains two fans. |
| Driftsbetingelser | |
| Driftstemperatur (T-T) | 0 - 45 °C |
| Vægt & størrelser | |
| Bredde | 44 mm |
| Dybde | 442 mm |
| Vægt | 6,02 kg |
| Driftsbetingelser | |
| Driftstemperatur (T-T) | 0 - 45 °C |
| Vægt & størrelser | |
| Bredde | 44 mm |
| Dybde | 442 mm |
| Vægt | 6,02 kg |
