Asrock B850M-X WIFI R2.0 Micro ATX AM5 Socket

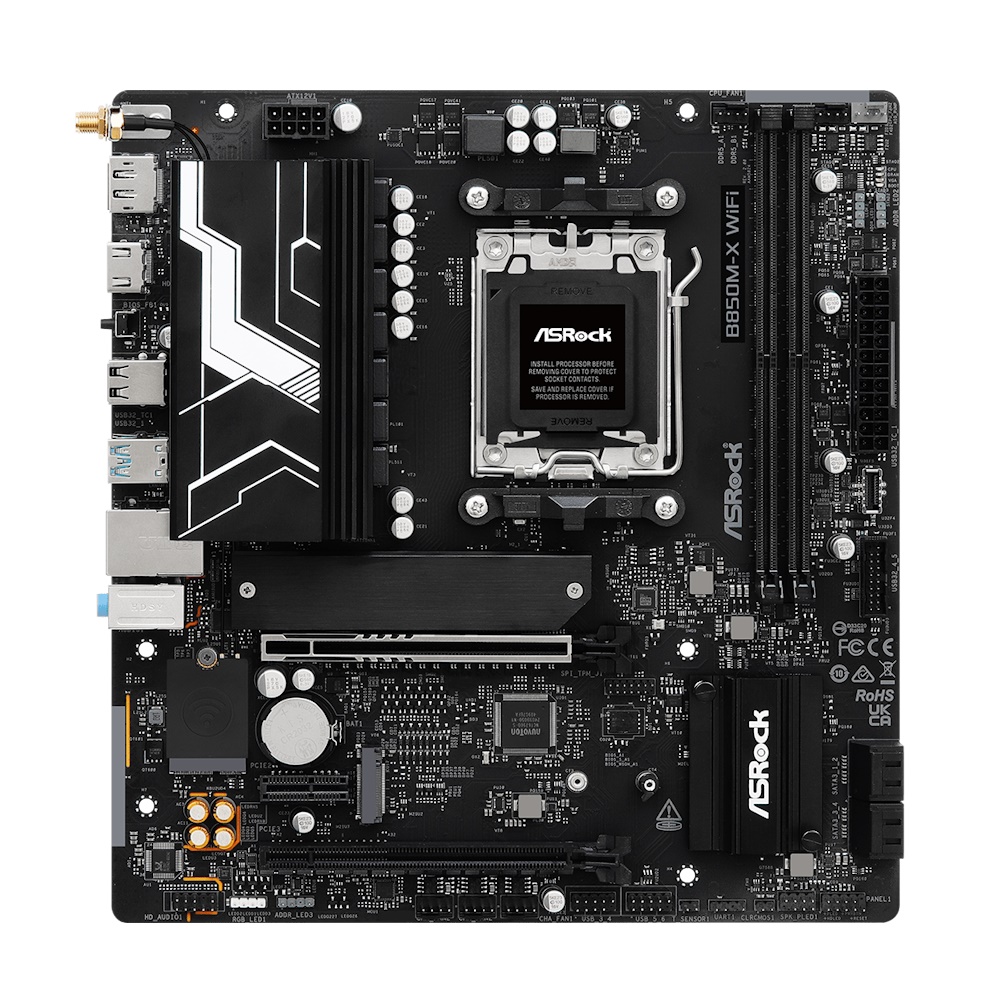

Asrock B850M-X WIFI R2.0 - Bundkort - Micro ATX - Socket AM5 - AMD B850 Chipset - USB 3.2 Gen 1, USB-C 3.2 Gen 1 - 2.5 Gigabit LAN - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)
-
Produktnummer 1003329782
Modell 90-MXBSH0-A0UAYZ
Varumärke
Gå till varumärkets webbplatsEAN 4711581490765
Vikt 1.2 kg
-
Information och specifikationer på sidan är vägledande och kan utan förvarning ändras av producenten. Alla uppgifter lämnas med reservation för tryckfel, och bilder är vägledande.
| CPU | Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors |
| Socket | AMD AM5 |
| Chipset | AMD B850 |
| Power Phases | 6+1+1 |
| Memory | 2x DDR5 DIMM Slots (Dual Channel) - Supports DDR5 ECC/non-ECC, un-buffered memory up to 8200+(OC), Max: 128GB |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
| Graphics | Integrated AMD RDNA™ graphics (Actual support may vary by CPU) |
| Video output | 1x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz, 1x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| LAN | 2.5 Gigabit Dragon RTL8125BG |
| Wireless LAN | 802.11axe Wi-Fi 6E 2x2 Module, Bluetooth 5.2 |
| Slots | 1x PCIe 5.0 x16 Slot (supports x16 mode), 1x PCIe 4.0 x1 Slot, 1x PCIe 4.0 x16 Slot (supports x4 mode), 1x M.2 Socket (Key E, supports type 2230 WiFi/BT PCIe) |
| Storage | 1x Blazing M.2 Socket, supports type 2280 PCIe Gen5x4 (128 Gb/s) mode, 1x Hyper M.2 Socket, supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode, 4x SATA3 6.0 Gb/s Connectors |
| USB | 3x USB 3.2 Gen1 Type-A (Rear), 1x USB 2.0 (Rear (USB_2), 2x USB 3.2 Gen1 Type-C (1 Rear, 1 Front), 2x USB 3.2 Gen1 Type-A (Front), 5x USB 2.0 (1 Rear (USB_1), 4 Front) |

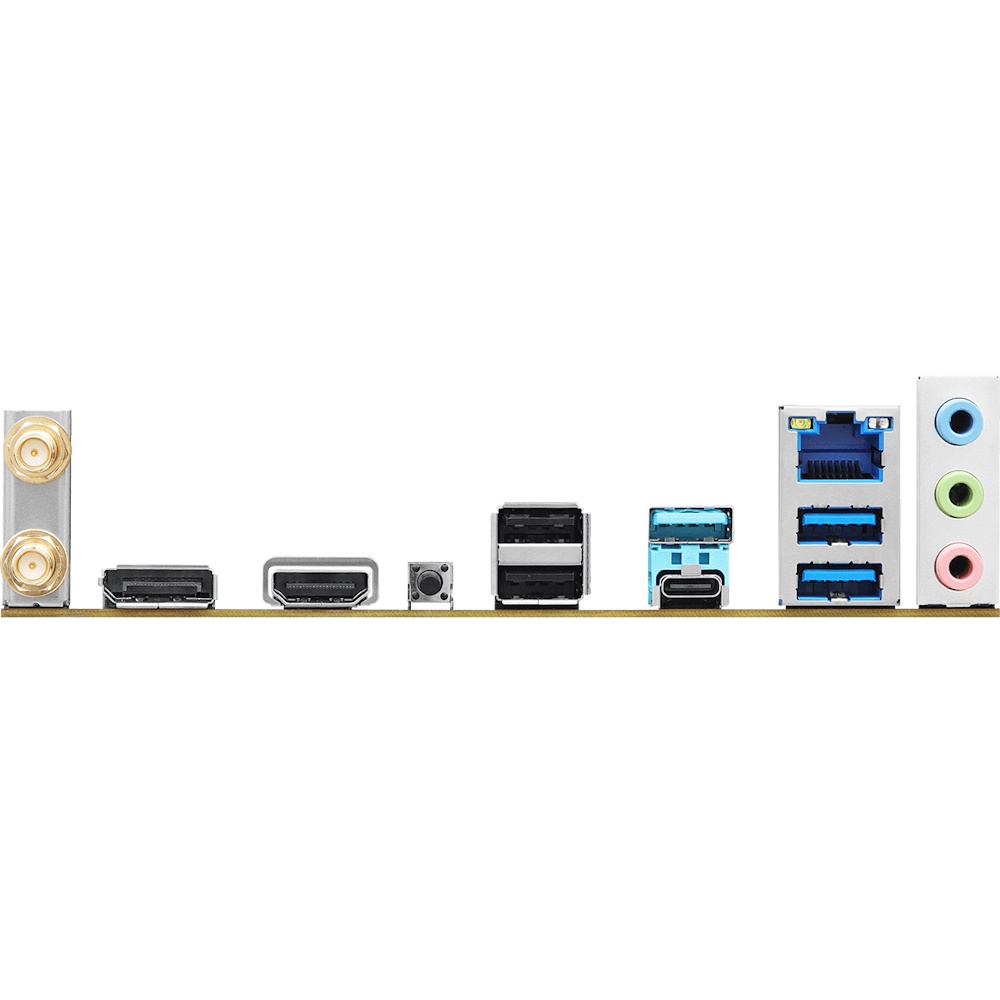

| Rear Panel I/O | 2x Antenna Ports, 1x HDMI Port, 1x DisplayPort 1.4, 1x USB 3.2 Gen1 Type-C Port, 3x USB 3.2 Gen1 Type-A Ports, 2x USB 2.0 Ports, 1x RJ-45 LAN Port, HD Audio Jacks: Line in / Front Speaker / Microphone |

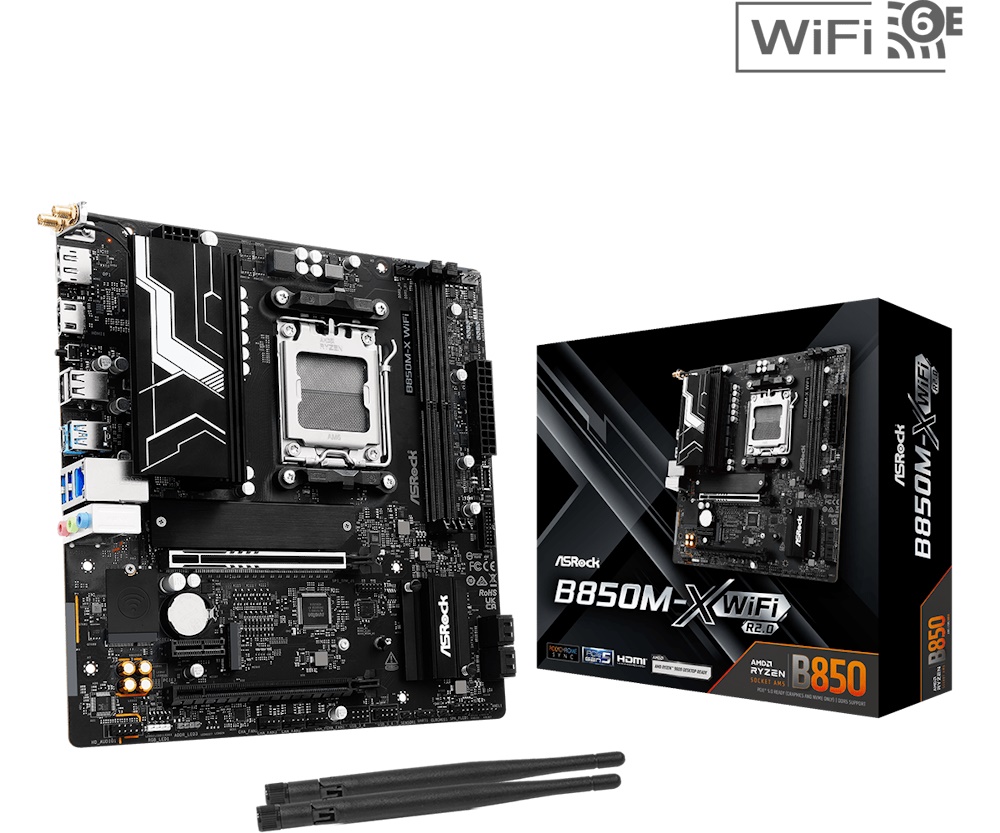

| Accessories | 1x I/O Shield, 2x SATA Data Cables, 2x ASRock WiFi 2.4/5/6 GHz Antennas |
| Form Factor | Micro ATX, 24.4 cm x 22.6 cm |
| Certifications | FCC, CE, ErP/EuP ready |
